Infant Bilirubin Phototherapy Unit
The phototherapy unit is the medical instrument used in this therapeutic measure, phototherapy is one of the most used means to treat neonatal jaundice, in the protocol of this process the newborn is exposed to the light source (phototherapy unit). Jaundice is the yellowish coloration of the skin and mucous membranes caused by the accumulation of bilirubin. Neonatal jaundice is common worldwide, and its frequency varies considerably among populations due to racial differences, genetic conditions, hemolytic states, and breastfeeding practices.
In the newborn, the increase in bilirubin is often secondary to the destruction of red blood cells, whose quantity is much greater in the fetus to make the most of the scarce amount of oxygen present in the uterine environment. Once a large number of these red blood cells are born, they are no longer needed, so a good part of them are destroyed, this generates a large production of unconjugated bilirubin, which passes into the blood and remains in the vascular bed. This bilirubinemia rises in the first hours of life, endangering the life of the newborn, due to involvement of the central nervous system, which is why it must be correctly treated using phototherapy units.
Types of Infant Bilirubin Phototherapy Units Needed in the Medical Sector

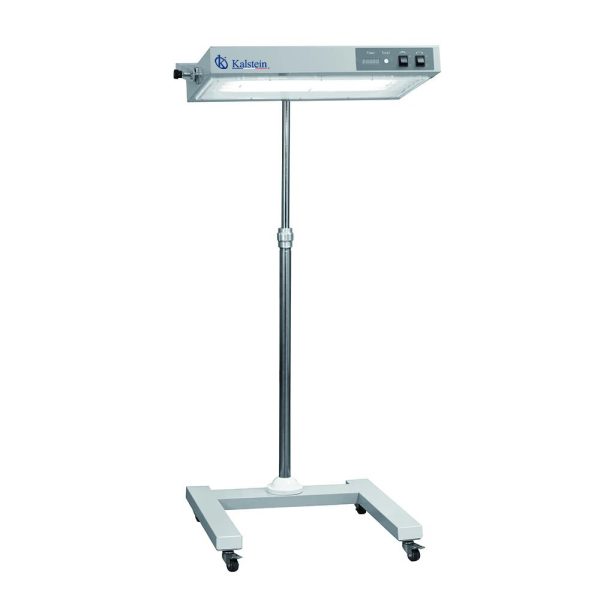

Infant Bilirubin Phototherapy Unit YR02194
The newborn patients with hyperbilirubinemia all need best care for threating jaundice. Our line of phototherapy products .....
Infant Bilirubin Phototherapy Unit YR02195
This model has 4 suction cup legs to be fixed in an incubator, LED as radiant elements of phototherapy......
Our Best Selling Infant Bilirubin Phototherapy Unit
Phototherapy is a therapeutic measure that is carried out through phototherapy units, equipment that uses electromagnetic radiation (light) for the treatment of neonatal jaundice, in order to reduce the severity of neonatal hyperbilirubinemia. The administration of phototherapy will depend on bilirubin levels, age of life, gestational age at birth, birth weight, cause of jaundice, and clinical status of the newborn.
Product Description
This model has 4 sucker legs in order to be fixed on an incubator.
- LED as the phototherapy radianting elements
- No-fan design for a silent atmosphere
- Big area light source for better cure
- Able to use with most of other types of baby incubators
| Model | YR02195 |
| Irradiation source | Led light |
| Irradiation wavelength range (300 ~ 550) nm | • |
| Irradiance adjustable from 1 to 99 levels | 3 000 uw / cm2 |
| Time calculator | • |
| Countdown | • |
| Total time | • |
| Display range 0 – 9999 h | • |
| Adjustable working height | • |
| Effective shelf life | 5 000h |
| Nominal Lifespan of Blue Light | 20 000h |
| Energy consumption | ≤ 50W |
| AC motor | • |
| Function | |
| Irradiation wavelength range | 400 ~ 550nm |
| Adjustable irradiation intensity (max.) | 3 000 uw / cm² |
| Wavelength of wave crest | 460nm |
| Irradiance adjustable from 1 to 99 soft | • |
| Hourly | • |
| A fixed time | • |
| Time totalizer | • |
| Display range (hour) | 0 – 9 999h |
| Structural parts | |
| Adjustable in vertical height | N / A |
| Useful life | 5 000h |
| Nominal Lifespan of Blue Light | 20 000h |
| Dimension | N / A |
| Electric parts | |
| Power supply | AC (220 ± 22) V (50 ± 1) Hz |
| Energy consumption | ≤50W |
| Room temperature | 10 – 40 ° C |
| Relative humidity | ≤80% |
| Motor | AC |
Analysis of the best infant Bilirubin Phototherapy Units in the Medical Sector
What is the importance of the bilirubin phototherapy unit?
Phototherapy is a therapeutic measure that is carried out through phototherapy units, equipment that uses electromagnetic radiation (light) for the treatment of neonatal jaundice...
Use of Blue Light Phototherapy in the Neonatal Intensive Care Unit
Phototherapy with blue light is a medical treatment used to treat jaundice in newborns. This is a condition in which...
Phototherapy Units for Dermatological Diseases
Phototherapy is a therapeutic measure in which light is used, specifically ultraviolet light (UV) because UV radiation has anti-inflammatory action, for the ...
What is neonatal hyperbilirubinemia
Neonatal hyperbilirubinemia is a clinical condition characterized by elevated serum bilirubin levels, and manifests as yellowing of the skin and mucous membranes..
Catalog of models of Child Bilirubin Phototherapy Unit on offer
Guides to Becoming an Expert in Child Bilirubin Phototherapy Unit
How is neonatal hyperbilirubinemia treated?
The phototherapy units are medical equipment that expose fluorescent light for the treatment of hyperbilirubinemia in neonates...
How low does bilirubin go in phototherapy?
The region became culturally distinguishable from the Lowlands from the later Middle Ages into the modern period.
Infant bilirubin phototherapy unit work
An infant bilirubin phototherapy unit is medical equipment generally made up of 4 blue light tubes and 2 white light tubes...
Phototherapy Units for Dermatological Diseases
Phototherapy with blue light is a medical treatment used to treat jaundice in newborns. This is a condition in...
Frequently Asked Questions about Infant Bilirubin Phototherapy Units
How to know the prices of the Childhood Bilirubin Phototherapy Unit?
To know the price of the Childhood Bilirubin Phototherapy Unit we invite you to send us an email with your request through the contact form.
What are the delivery times of the Childhood Bilirubin Phototherapy Unit?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of the Childhood Bilirubin Phototherapy Unit?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
