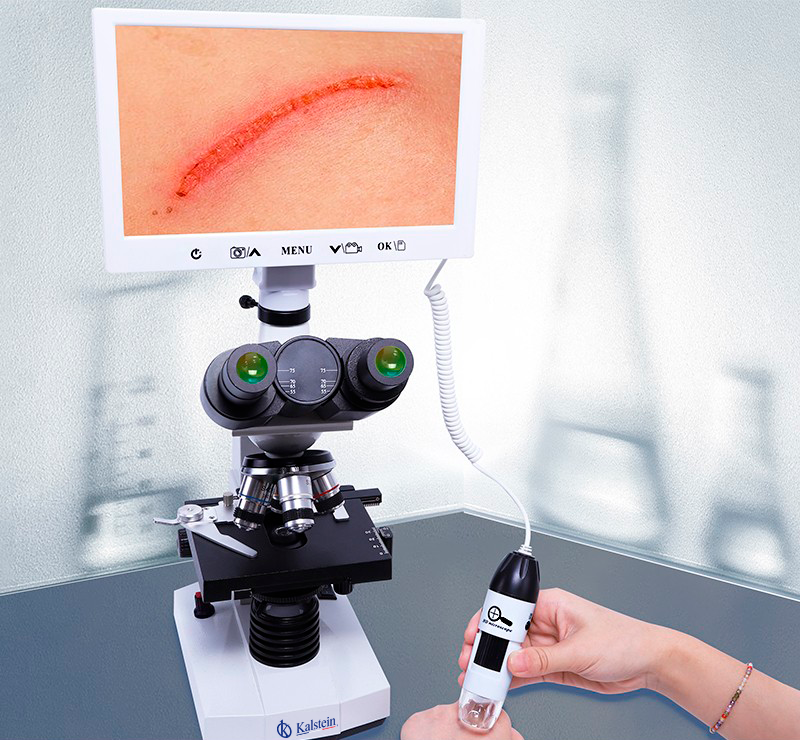

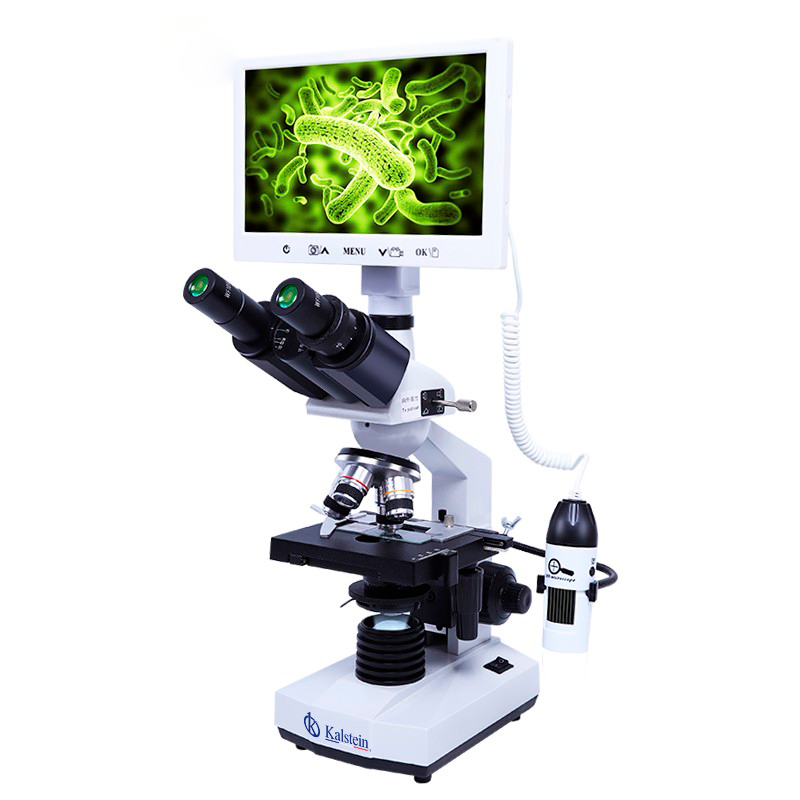

Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786


Product Description

  • Teaching Head, WF10x, WF16x, Quarduple, Ach. 4x10x40x100x, Mechanical Stage 115x125mm, Coaxial Focusing, LED, With 10 Prepared Slides, 0.3x C-Mount, With Experiment Kit, Pack In Hand Carry Case+Carton
  • 7″ LCD 2.0M, 30fps, TF Card Max 32G, USB Output, Measuring Software Support Win/iMac
Technical Specifications
Model YR05784 YR05785 YR05786 YR05783
Head Teaching Head, 45°+90° Inclined, 360° Rotatable o o
Binocular Head, 30° Inclined, 360° Rotatable
Trinocular Head, 30° Inclined, 360° Rotatable o o

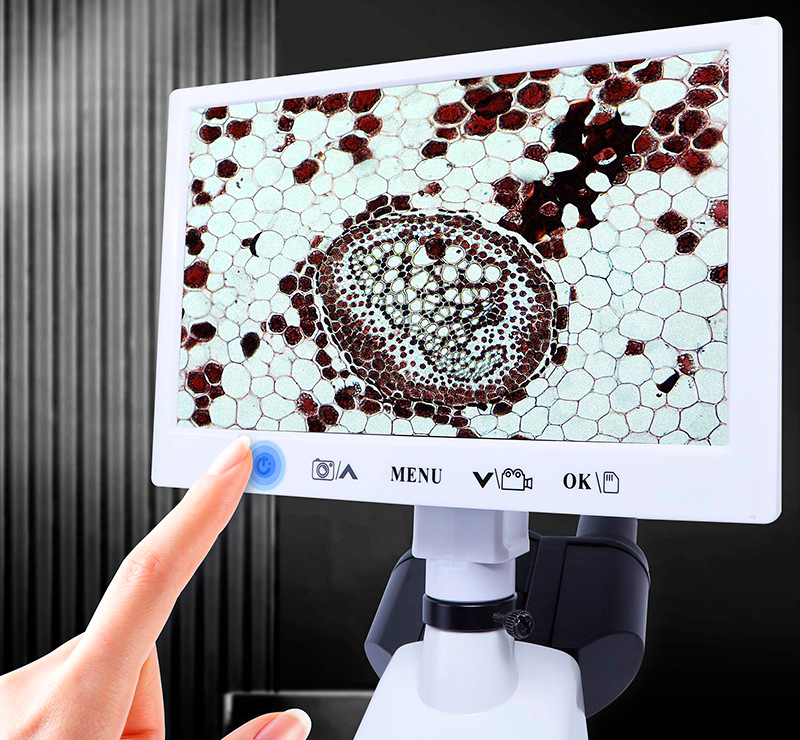

LCD Camera 7″IPS LCD Screen Resolution 800×480
Sensor 1/2.75″CMOS
Resolution 2.0M 1920x1080p, With 0.3x C-Mount
Pixel Size 2.8×2.8um
Frame Rate 30 fps

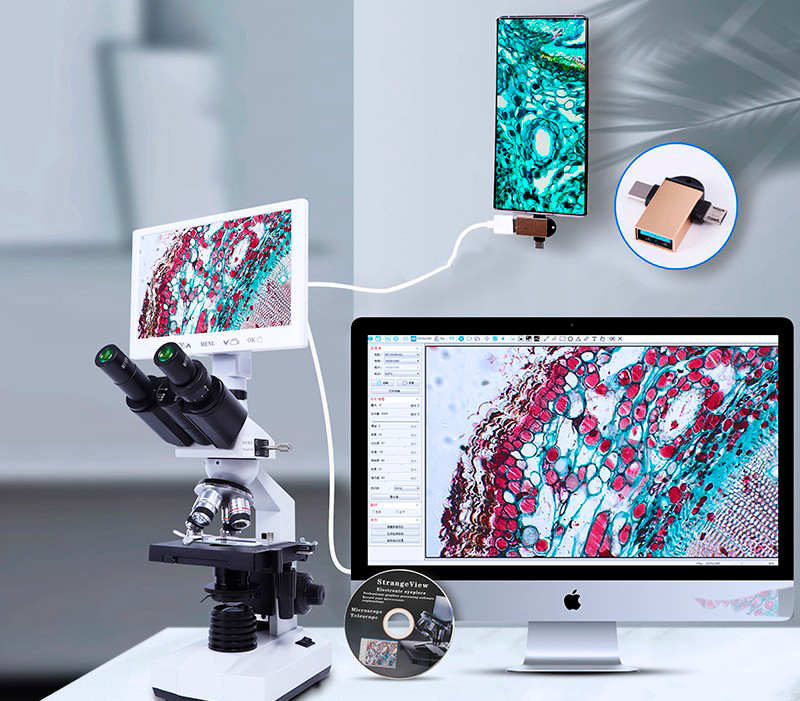

Output USB 2.0, Output to LCD, PC or Mobile Phone
Power DC5V/2A, Power Port 3.5/1.35 DC
Storage Micro SD Card Slot, Support Class 10 Max 32G
LCD Menu One Key Switch Image From Main Camera & Hand-held Camera
One Key Take Photo, Video, Record, Save to SD Card
Set Color, Contrast, White Balance Auto/Manual Adjust
Set Photo/ Video Resolution Adjust, Mic On/Off to Record Voice With Video
Set Date, Time
Choose Language: Chinese, Tranditional Chinese, English, Japanese, France, Germany, Korea, Russia, Italy, Portuguese, Spanish, Arabic
Playback Photo, Video
PC Software CD With Measuring Software Strange View, Support Win/iMac Computer, Support Language  Chinese, English, Russia, Ukrian
Hand-held  USB Portable Digital Microscope 1.3M, 1.5x-25x o o
Eyepiece WF10x, WF16x
Nosepiece Quadruple Nosepiece, Ball Bearing Inner Locating
Objective Achromatic 4x,10x,40x(s), 100x(s, oil)
Working Stage Double Layer Mechanical Stage 115*125mm
Focusing Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm
Condenser Abbe Condenser N.A.1.25, With Iris Diaphragm Filter
Light Source LED, Brightness Adjustable
Accessory Prepared Slide 10pcs in Box,
Experiment Kit,
Mobile Phone Connector
Power Adapter
Power Cord
USB Cable
Software CD
Packing Hand Carry Box + Master Carton

Additional Information

Weight 5 kg
Dimensions 30 × 20 × 40 cm

YR05783, YR05784, YR05785, YR05786
