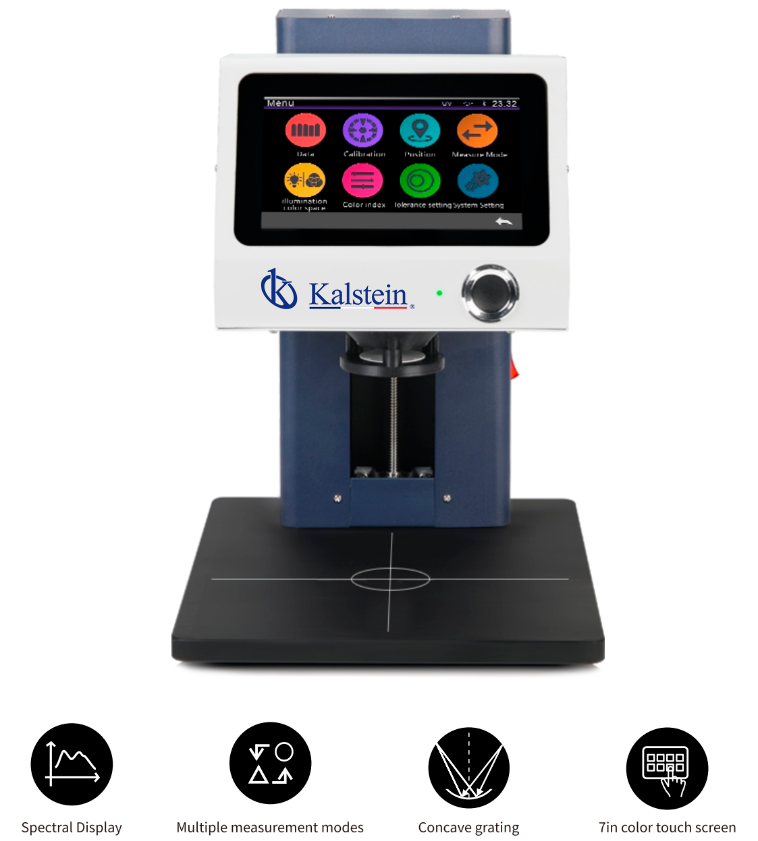

Non-contact spectrophotometer YR05481

Manufacturer:ย Kalstein

Description

YR05481 spectrophotometer is a color measuring instrument that adopts D/8 (diffuse illumination, 8ยฐ direction reception, SCI includes specular reflection light) standard. , powder and other non-contact precision color measurement. It can be used for accurate color analysis and transmission in laboratories and R&D industries; it can also be used for accurate color measurement and color quality control in automated production lines.

Instrument Features
  • Professional D/8 optical structure.
  • Non-contact, D/8 optical structure measures the reflectivity and chromaticity value of objects.
  • D/8 has wider applicability and supports color matching.
The measurement height is adjustable

The movable measuring head can be adjusted up and down according to the actual height of the measured object, and the measuring height can be stored, and the maximum support 160mm sample.

Simple to use and easy to operate

Simple operation interface, no need for complicated settings, non-professionals can also easily measure, touch-type large-screen measurement interface, real-time display of measurement data, more measurement functions are realized.ย

Various measurement modes

Support sample mode, quality control mode, continuous statistics mode to meet individual needs.

Application

Non-contact benchtop spectrophotometers are widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. Its unique innovative design not only provides non-contact measurement solutions directly from the production line, but also ensures stable and high-precision measurement results.

Technical Description
Model YR05481
Optical Geometry D/8 (diffuse illumination, receiving in 8ยฐ direction, SCL includes specular reflection light); CIE No.15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTME1164, DIN5033 Teil7
Light Source Full spectrum LED light source
Spectrophotometric Mode Concave Grating
Sensor 256-pixel dual-array CMOS image sensor
Wavelength Range 400-700nm, 10nm output
Measured Reflectance Range 0-200%
Measuring Aperture 020mm (010mm can be customized)
Non-contact distance 3.0mm(+0.2mm)
Sample height 0-160mm (Using the original support base plate)
ย Distance adjustment method Manual adjustment (storable test height)
Measurement mode Sample mode, quality control mode, continuous statistics mode
Locating Camera locating
Color Space CIE LAB,XYZ,Yxy, LCh,CIE LUV, Musell,s-RGB, HunterLab,Bxy,DIN Lab99
Color Difference Formula AE*ab,AE*94,AE*cmc(2:1),4E*cmc(1:1),4E*00,4E (Hunter), DINAE99
Other Colorimetric Index WI(ASTM E313, CIE/ISO,AATCC,Hunter), YI(ASTM D1925,

ASTM 313),, Metamerism index MI,Staining Fastness, Color

Fastness, Strength, Opacity

Observer Angle 2ยฐ/10ยฐ
Illuminant D65,A,C,D50,D55,075,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9, F10

(TPL5),F11(TL84),F12(TL83/U30)

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference

Values/Graph, Color simulation, pass/fail result, display tolerance can

be set

Measuring Time Fast mode about 1.0s (0.2-1.5s adjustable)
Data Storage Sample mode + quality control mode 18,000;Continuous statistical

mode 30,000, totaling no more than 48,000

Repeatability In the optimal measurement mode (when a single measurement time is

1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity

value: AE*ab within 0.04(After the instrument is warmed up and calibrated, measure

the average value of the whiteboard 30 times at an interval of 5s)

Inter-instrument Error Within AE*ab 0.25(Measured average value of 12 tiles of BCRA series II)
Measurement method ย Single measurement, average measurement (2-99 times)
Dimension 330*250*370mm
Weight About 10Kg
Power AC 24V, 3A Power adapter power supply
illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB
Language Simplified Chinese, Traditional Chinese, English
Operating Environment 0~40ยฐC, 0-85%RH (no condensation), altitude: less than 2000m
Storage Environment -20~50ยฐC, 0-85%RH (no condensation)
Standard Accessory Power adapter, manual, data cable, standard calibration board,

black calibration box

ย Notes This model is specially suitable for streamlined production lines, in-depth function

customization will incur additional customization costs

Additional information

Weight 13,1 kg
Dimensions 47 × 52 × 35 cm
