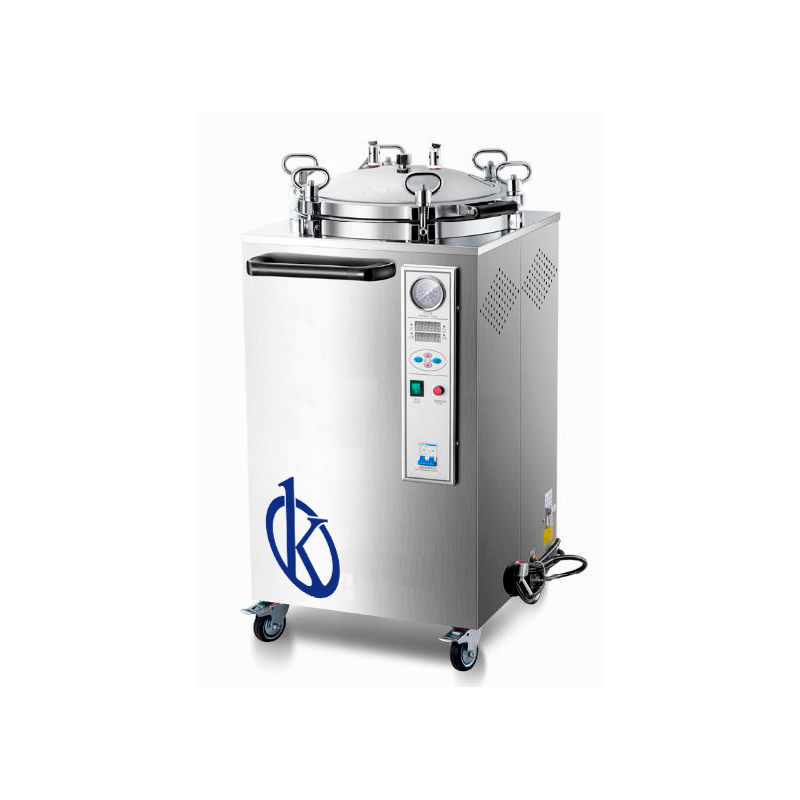

Pressure Steam Autoclave With Drying YR05655 // YR05660

ManufacturerKalstein

Description

YR05655 // YR05660 series vertical pressure steam autoclave is the equipment that disinfects and sterilizes the objects
with saturated steam, its structure is horizontal and heating way is electric heating. It is composed of
sterilization room, shell, door, steam generator, pipe system, control system, digital display system and
power-supply system.
It is widely used in CSSD, lab, scientific research institution, pharmaceutical, food industry and is suitable
for items which are high temperature-resisting and high pressure-resisting including unwrapped or wrapped
instrument, dressing, rubber, liquid, plant-in instrument, porous item, hollow instrument to be sterilized.

Product Features
  • Fully stainless steel 304 material.
  • Wing nut locking mechanism, safety interlock door.
  • Pressure gauge, real-time display of pressure.
  • PID processor control, fully automatic running.
  • Digital display of working status: pressure, time, temperature, water level, error code, touch type key.
  • Auto discharge the cool air, and steam discharging automatically after sterilization.
  • Tempered glass anti-scald protection.
  • Self-inflating type seal.
  • Automatically shut off with beep reminding after sterilization.
  • Standard PT/TT test interface is provided for convenient testing.
  • With one stainless steel drum.
  • Equipped with automatic water sensor and water level indicator.
  • With draining output tap and moving wheels.
  • Built in drying function.
Safety Protection Device
  • Equipped with water level sensor, alarm and cutoff if water lacking.
  • The program will be stopped if water level lower than the low limit.
  • The buzzer alarms when a cycle of operation is completed.
  • Equipped with over-temperature and over-pressure auto-protection.
  • Over current protector.
  • Door safety interlock device.
  • Safety valve for automatically released.
  • Emergency exhaust valve.
Technical Specification
Model  YR05655 YR05656  YR05657  YR05658 YR05659 YR05660
Control  PID processor
Display  Digital display
Material  Fully stainless steel 304
Working pressure  0.22Mpa
Working temperature  134°C
Working temperature range  100 – 134°C
Sterilization time range  0 – 999 min
Drying time range  0 – 999 min
Temperature accuracy  0.1°C
Heat average  ≤1°C
Voltage  110-240V. 50/60Hz
Steam generator  Stainless steel 304
Stainless steel drum  1 pcs
Caster  Casters with brake
Chamber size (Dia×D)(mm) 35L / Ø300×485 mm 50L / Ø320×545 mm 75L / Ø388×480 mm 100L / Ø388×630 mm 120L / Ø460*590 mm 150L / Ø460*700 mm
Outer size (mm) 510×510×900 mm 520×520×1000 mm 570×570×1080 mm 570×570×1180 mm 610×610×1180 mm 620×620×1210 mm
Packing size (mm) 550×540×1000 mm 570×570×1090 mm 620×620×1180 mm 620×620×1280 mm 660×670×1280 mm 670×680×1310 mm
G.W. / N.W.  65/45 kg 75/55 kg 90/70 kg 105/85 kg 115/95kg 120/105kg
Power 2.5 KW 3.5 KW 4.0 KW

Additional information

Weight N/A
Dimensions N/A
Model

YR05655, YR05656, YR05657, YR05658, YR05659, YR05660
