Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water.

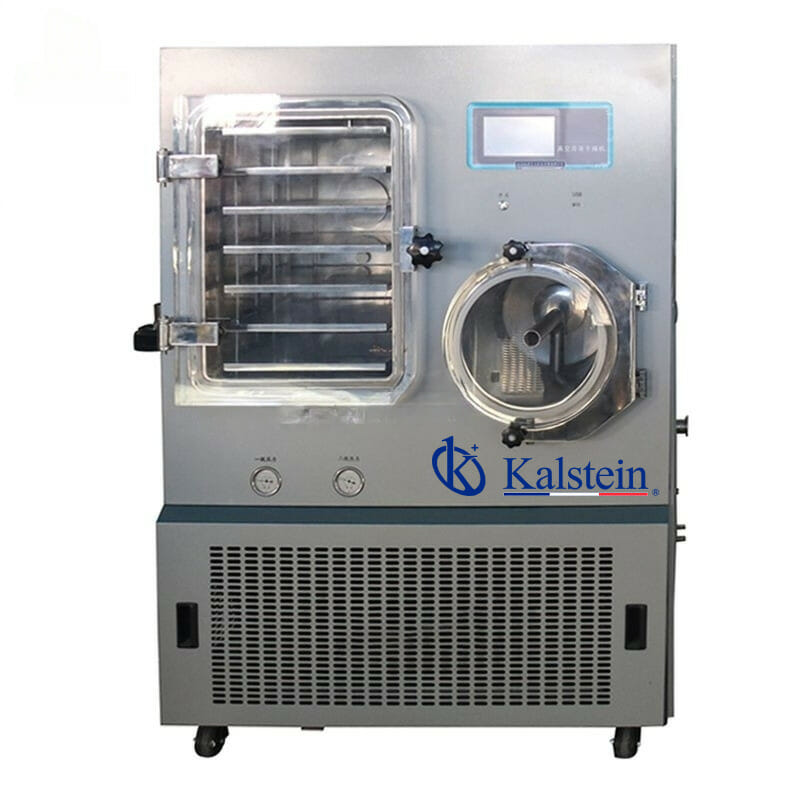

YR05985-1 – YR05985-2 (silicone oil heating) freeze dryer, lyophilized in situ (patented product). It changes the cumbersome operation of the past drying process, prevents material contamination, and automates the drying and sublimation. This model has shelf heating and programmable functions to remember the freeze-drying curve, allowing users to observe the lyophilization process of the material.
|Material plate size||475 × 355mm||475 × 355mm|
|Number of material trays||4||6|
|Shelf size||480 × 360mm||480 × 360mm|
|Number of shelves||4+1 floors||6+1 floor|
|Shelf temperature range||-55 ° C ~ +70 ° C||-55 ° C ~ +70 ° C|
|Shelf temperature difference||±1 °C (balanced)||±1 °C (balanced)|
|Cold trap temperature||≤ -75 ° C (no load)||≤ -75 ° C (no load)|
|Water catching capacity||≥10KG/24h||≥15KG/24h|
|Ultimate vacuum||≤5pa (no load)||≤5pa (no load)|
|Cooling method||air cooling||air cooling|
|Plate loading material||7L (material thickness 10mm)||10L (material thickness 10mm)|
