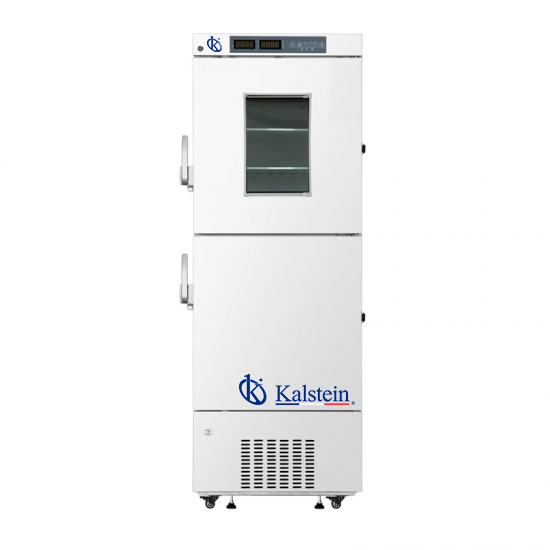

Upright Combined Pharmacy Refrigerator/Freezer YR05321


Product Description

Medical Combined Refrigerator and Freezer is widely used in hospitals, blood stations and laboratories. The product has double chamber, double display, double control system, two sets of individual compressor and refrigeration system. Temperature in both chambers can be independently adjusted.This unit is equipped with two independent cooling systems, one for the upper compartment and one for the lower compartment. Each system has its own independent control system, allowing for individual temperature settings.

  • Foamed Glass Door: The refrigerator compartment is equipped with a foamed gladd door, which is electrically heated and has anti-fog and anti-condensation features
  • Forced Air Circulation: The forced-air circulation system of the unit maintains uniform chamber temperatures and provides fast temperature recovery after door openings.
  • High Quality Material: The freezers are made of high-quality coated cold-rolled steel both exterior and interior, which is antibacterial,anti-corrosive, and easy to clean.
  • Copper Pipe Evaporator: Compared to the wrie and shelf type evaporator, the copper tube evaporator provides more uniform temperature distribution and higher refrigeration efficiency.
Technical Specifications
Model YR05321
Shelf (drawer ) Shelves and draws
Cooling method Direct cooling
Defrost Manual
Refrigerant R600a &R290
Power consumption(kWh/24h) 3,03
Noise (db) 50
Ambient temperature 10~32°C
Temperature range F:-10°C~-25°C R:2°C~8°C
Cooling system
Compressor brand/QTY China brand 2
Sensor NTC
Temperature controller Microprocessor
Display Dual Independent Digital Display
Voltage/frequency (V/Hz) 220V/50Hz
Power (W) 300
Current (A) 2.37
Inside material SPCC sprayed steel
Outside material SPCC sprayed steel
Insulation PURF
Capacity (L/cu.ft) R:183 F:185
NT./GT. (kg) 137/166
Exterior size(W*D*H)(mm) 730*830*1880
Interior size(W*D*H)(mm) R:580*626*625 mm F:466*636*625 mm
20GP/40GP/40HQ 14/39/39
High/low temperature Y
Power off Y
Sensor malfunction Y
Ambient temperature Y
Abnormal voltage /
Temperature controller Y
Malfunction Y
Door ajar Y
Power failure backup system(alarm) 8H
Caster Y
Test hole 2/25mm
USB port Y
Data logger Optional
Remote alarm y
Certification ISO,CE

Additional Information

Weight 176 kg
Dimensions 91,2 × 78,2 × 202 cm
