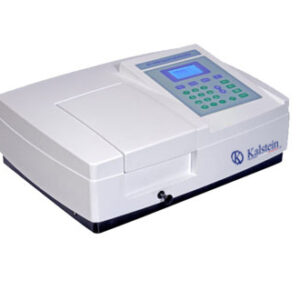

UV / VIS Spectrophotometer – YR01856

Manufacturer: Kalstein

Certificacion europea


YR01856 spectrophotometer equipped with 6 inches LCD display, is an ideal and advanced analytical instrument for laboratory to realize wavelength scanning, Kinetics test, multi wavelengh functions. All functions can be operated on spectrophotometer and can be read directly on the display.


YR01856 series has a 6 inches LCD display to show results and curves directly on the screen.

8mm thick optical base

YR01856 uses a rigid 8mm die-case aluminum base as its optical mount to ensure instrumentstability and reliability.

Powerful functions

Multi functions like spectrum scanning, standard curve, kinetics,multi wavelength, DNA/RNA/Protein testing can be operated directly on the spectrophotometer and all corresponding curves and data can be displayed directly.

Dataย output

YR01856 is equipped with USB port to connect with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The sofeware is optional.

Model YR01856
Wavelength Range 190-1100nm
Bandwidth 1.8nm
Wavelength Accuracy ยฑ0.5nm
Wavelength Repeatability โ‰ค0.2nm
Photometric Accuracy ยฑ0.3%T
Photometric Repeatability โ‰ค0.15%T
Photometric Range -0.3-3A, 0-200%T, 0-9999C
Stability ยฑ 0.002A/h @ 500nm
Baseline Flatness ยฑ 0.002A/h
Noise ยฑ 0.0005A
Stray Light โ‰ค0.05%T @ 220nm, 360nm
Data Output Port USB
Printer Port Parallel Port
Display 320*240 Dots LCD
Lamps Tungsten Lamp & Deuterium Lamp
Detector Silicon Photodiode
Power Requirements AC 220V/50Hz or AC 110V/60Hz
Dimension 460*380*180mm
Weight 20kg
Item Description Quantity Unit
1 Spectrophotometer 1 set
2 1cm Glass cuvette 4 pcs
3 Power cord 1 pcs
4 Userโ€™s Manual 1 pcs
5 1 cm quartz cuvette 2 pcs
6 Dust Cover 1 pcs

Additional information

Weight 20 kg
Dimensions 62 × 53 × 37 cm
