Electrosurgical Unit
The electrosurgical unit, also known as electrosurgical unit, is a medical equipment that uses electrical phenomena that generate heat; in order to coagulate, fulgurate, dry or cut tissues, depending on the parameters established by the medical operator. The generation of heat is achieved through the passage of an oscillating electrical current, concentrated in a small area.
The importance of the use of electrosurgical units in the operating room is that these devices today are considered essential instruments in these places, because they produce precise incisions without the need to exert pressure on the tissues, as well as allow easy access to difficult or compromised areas, offer excellent comfort in lifting hypertrophic tissues, facilitate hemorrhage containment and healing of gingival tissues with correct use, and also prevent the infiltration of microorganisms in the incision line.
Types of Electrosurgical Units you may need in the Medical Sector

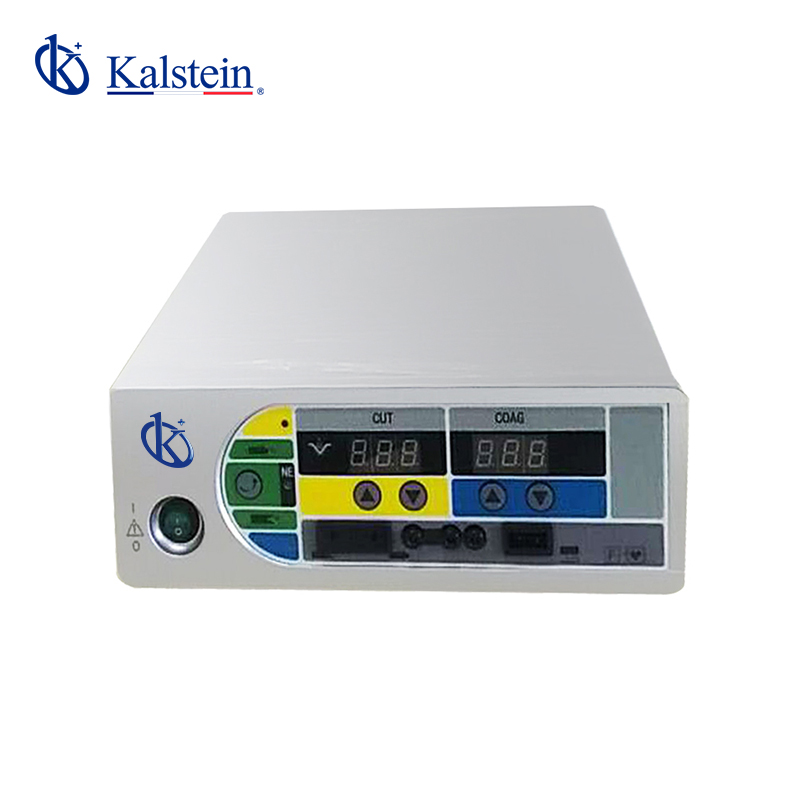

Electrosurgical Generators YR02144
Electrosurgical generator combines versatility and safety, for all general electrosurgical procedures such as cutting and coagulation in clinics, offices and...

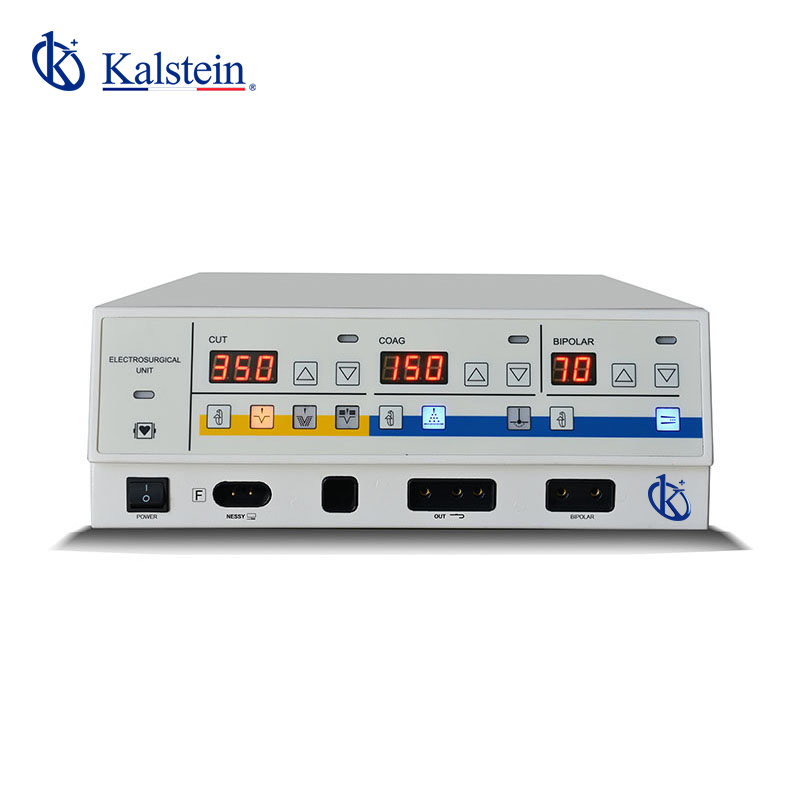

Electrosurgical Generators YR02145
YR electrosurgical series generator is a versatile electrosurgical unit for all around surgical procedures through all types of tissue. It has integrated...

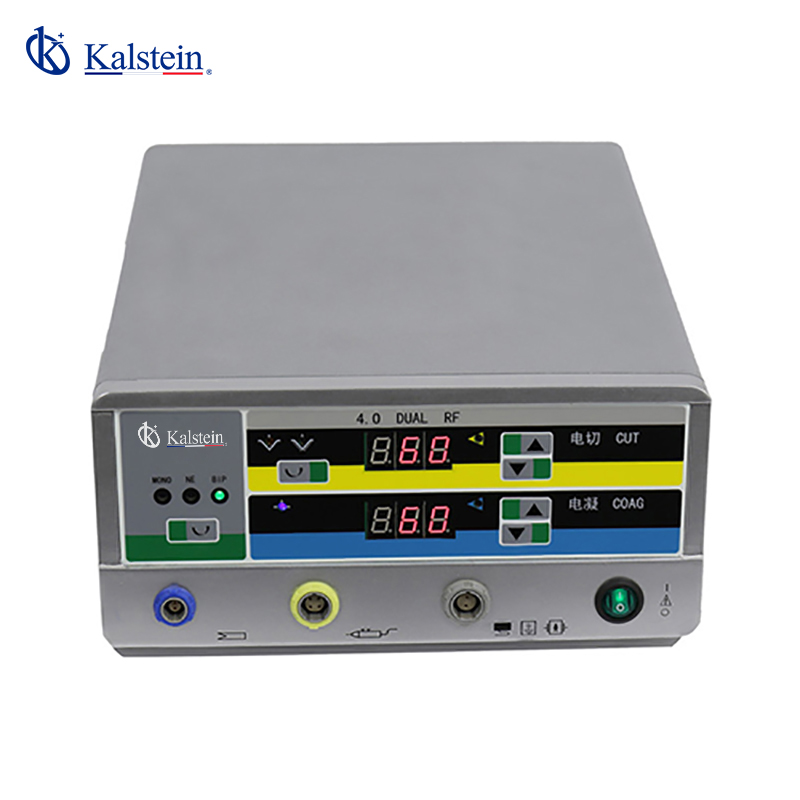

Electrosurgical Generators YR02147
YR electrosurgical generator series is a reliable electrosurgical unit for loop electrosurgical excision procedure (LEEP) in gynecology. With up to 150 watts...
Our best-selling Electrosurgical Unit
- 7 monopolar and 3 bipolar outputs are available.
- The electrosurgical generator ensures smooth cutting through all types of tissue.
- It realizes automatic recognition of return electrode, whether solid or spilt.
- It offers automatic current monitoring and program memory functions.
- The argon module is optional for enhanced cutting and coagulation.
- Optional adaptor for laparoscopy and thoracoscopy application.
- The electrosurgical generator has an easy to use interface.
- It features isolated output, all floating.
| Model | YR02144 | |||
| Monopolar | ||||
| Cutting mode | Max. Output power (watts) | Load (ohms) | Open circuit Vp-p | Crest factor |
| Pure | 400 watts | 500 Ω | 2,300v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
| Mix 1 | 300 watts | 500 Ω | 2,700v | Sun Jan 02 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
| Mix 2 | 200 watts | 500 Ω | 3,200v | Mon May 02 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
| Mix 3 | 150 watts | 500 Ω | 3,700 v | Mon Jan 03 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
| Coagulation mode | ||||
| Point | 120 watts | 500 Ω | 5,600v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
| Gentle | 120 watts | 500 Ω | 3,400 v | Thu Jan 06 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
| Spray | 120 watts | 500 Ω | 8,500 v | Tue Mar 08 2022 00:00:00 GMT + 0100 (Central European Standard Time) |
| Bipolar | ||||
| Cutting mode | ||||
| Standard | 70 watts | 200 Ω | 1,450v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
| Coagulation mode | ||||
| Standard | 70 watts | 500 Ω | 240v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
| Precise | 70 watts | 200 Ω | 360v | Sun May 01 2022 00:00:00 GMT + 0200 (Central European Summer Time) |
| Connecting accessories and supplies | ||||
| Finger pencil | two | |||
| Foot switch pencil | one | |||
| Patient return electrode | one | |||
| Foot switch | one | |||
| Ac power supply | one | |||
| Potential equalization | one | |||
| Power characteristic | ||||
| Rate frequency | 512 kHz (110 / 240vAC, 60 / 50Hz) | |||
| Isolated output | YES | |||
| Quantitative visualization of the contact area | YES, for the «Split» type of neutral electrode | |||
| Contact area indicator lamp | 10 lamps (one for 10% contact), alarm beep and flash if contact <20% | |||
| Definition of Solid / Split Neutral Electrode | YES, the ‘Split’ or ‘Solid’ indicator light comes on | |||
| Adjustable alarm volume | YES | |||
| Operating duty cycle | 10 seconds ON, 30 seconds OFF | |||
| Cooling method | Convection | |||
| Regulation | ||||
| Type According to EN 60601-1 | CF | |||
| Protection class according to EN 60601-1 | class I | |||
| Classification acc. According to MDD 93/42 / EEC | IIb | |||
| Physical | ||||
| Dimension (WxDxH) | 460 x 410 x 160 mm | |||
| Weight | 11.2 kg | |||
Analysis of the best Electrosurgical Units used in the Medical Sector
Energy efficiency of electrosurgical equipment
Energy efficiency is a matter for all of us, and we are worried about revenge in all areas of the world. In the field...
What technology the Electro-Surgical Unit uses
The Electro Surgical Unit has helped surgeons for many years by offering an effective way to perform minimally invasive...
Thermal characterization of electrosurgical units
Thermal characterization is a highly complex and vital process for the correct functioning of an electrosurgical...
Maintenance of an electrosurgical unit
The electrosurgical unit is a medical equipment that uses heat-generating electrical phenomena; to achieve effects...
Guide for you to become an expert in the Electrosurgery Unit
Clinical uses of the electrosurgical unit in skin surgery
The Electrosurgical Unit has become an essential tool for skin surgery due to its versatility and ease of use. This unit...
Improvement of Clinical Outcome with Electrosurgical Unit
The Electrosurgical Unit (UEQ) is an innovative technology developed for use in the medical field. It is designed to treat injuries.

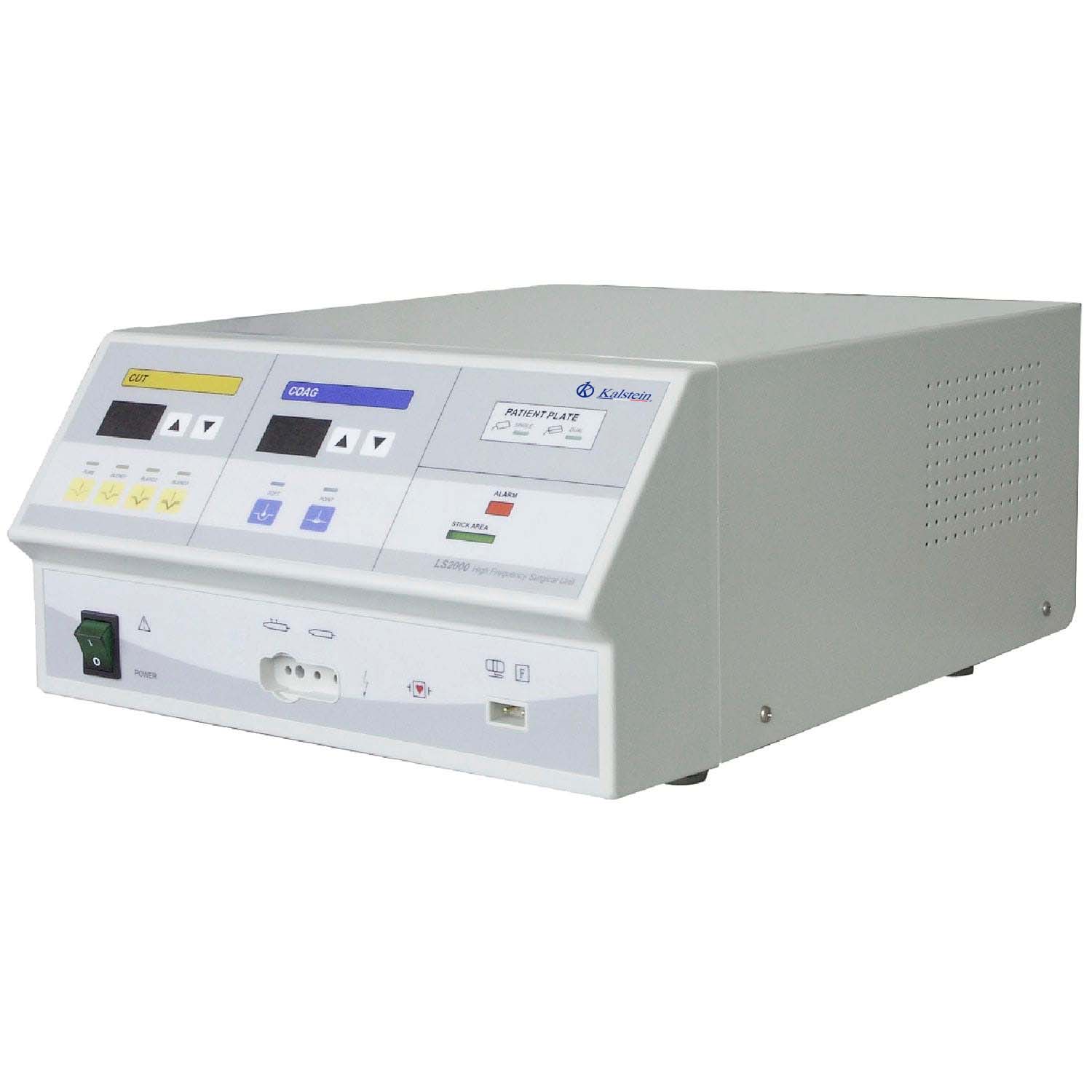

Electrosurgical Unit on the Time of Operations
The electrosurgical unit is a high-performance device designed for surgical procedures and surgical procedures...
Evaluation of the reliability of the use of electrosurgical units in clinical practices
Reliability has been a hot topic in the field of medicine. The invasion of digital technology in clinical practice in recent years has caused an immense need to assess the reliability of these systems, one of the most important areas in which reliability...
Frequently asked questions from our customers about Electrosurgical Units
How to know the prices of the Electrosurgical Unit?
To know the price of the Electrosurgical Unit we invite you to send us an email with your request using the contact form.
What are the delivery times of the Electrosurgical Unit?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of the Electrosurgical Unit?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
