Conductivity Meters
The first thing to consider when choosing a conductivity meter is the range you need to measure. Conductivity meters are available in a variety of ranges, from low to high. If you only need to measure low levels of conductivity, a low-range meter will suffice. If you need to measure high levels of conductivity, you will need a high-range meter. The range you need will depend on the type of liquids you normally test.
Another important consideration is the accuracy of the conductivity meter. Conductivity meters are available in a variety of accuracy levels, from 0.1% to 1.0%. The accuracy you need will depend on the application for which you are using the meter. If you need to measure very precise levels of conductivity, a higher level of accuracy will be required.
Types of Conductivity Meters a Lab May Need
Conductivity controller
Un medidor de conductividad está provisto de una sonda, que es insertada en el líquido a medir, luego el medidor aplica un voltaje entre dos electrodos dentro de la sonda. El equipo mide la caída del voltaje de la solución, la cual es provocada por la resistencia eléctrica. Y luego el medidor de conductividad convierte la lectura en S/cm, donde el valor indica la cantidad total de sólidos disueltos, es esta cantidad de sólidos disueltos que puede atravesar la fibra de vidrio. Es decir, el conductivímetro funciona con una corriente alterna para evitar que ocurra una reacción en la sustancia a analizar o que exista algún efecto sobre las placas del conductivímetro.

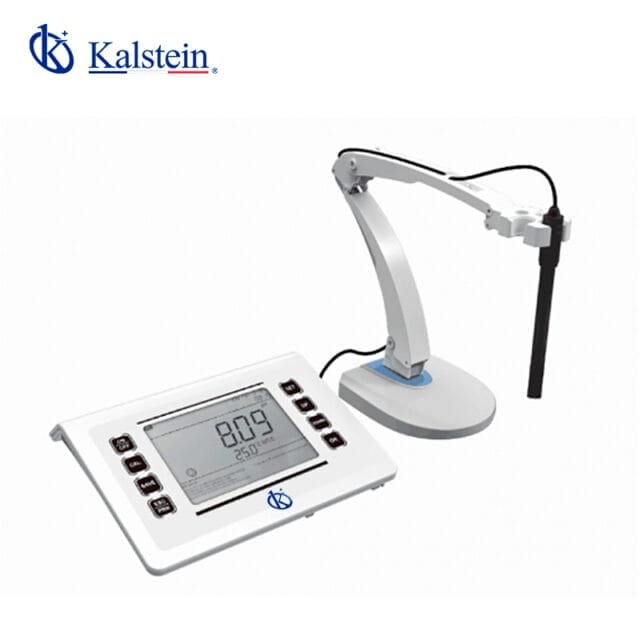

Table conductivity controller
pH Mode:
• Multiparameter pH/conductivity meter is equipped with a large backlit LCD display.
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and offset.
Conductivity/TDS Modes:
• 1 to 5 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear
and pure water compensation modes.
In Kalstein you can find the Ideal conductivity meters for your Lab
Multi-parameter portable water quality meter
The multi-parameter portable pH meter contains 8 measurement modes, the meter is suitable for measuring...
Pocket ° C / ° F conductivity meter YR01807
Economical pocket conductivity tester for measuring high conductivity liquids, accuracy: 1% FS,The high range...
YR01830 Benchtop TDS / Conductivity Meter
Precision laboratory conductivity meter, 3 points calibration, setup menu contains 7 options. The meter is suitable...
YR01818 Portable Conductivity / TDS / Salinity Meter
Professional portable conductivity meter contains the TDS, salinity and resistivity measurement modes...
Our Best Selling Conductivity Meters
• Mid-range pocket TDS tester allows adjusting the TDS conversion factor.
• Platinum conductivity cell provides the quick and reliable measurement results.
• 1 point push-button calibration ensures accurate measurement over the entire range.
• Hold function momentarily freezes reading for easy viewing and recording.
• Auto-Power Off effectively conserves battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environment.
| Model | YR01812 |
| TDS | |
| Range | 5 to 1000ppm |
| Resolution | 1ppm |
| Accuracy | ±1% F.S. |
| Calibration Point | 1 point |
| Calibration Solution | 744ppm |
| Temperature | |
| Range | 0 to 50°C |
| Resolution | 1°C |
| Accuracy | ±1°C |
| General Specifications | |
| Temperature Compensation | 0 to 50°C, automatic |
| TDS Factor | 0.4 to 1.0 (default 0.5) |
| Hold Function | Manual |
| Auto-Power Off | 8 minutes after last key pressed |
| Sensor Type | ECSCAN-C1-100K |
| Display | Single-line LCD (21×21mm) |
| Power | 3×1.5V LR44 micro alkaline batteries |
| Battery Life | Approximately 150 hours of continuous use |
| Dimensions | 185(L)×40(Dia.)mm |
| Weight | 100g |
Conductivity Meters Analysis for your Lab

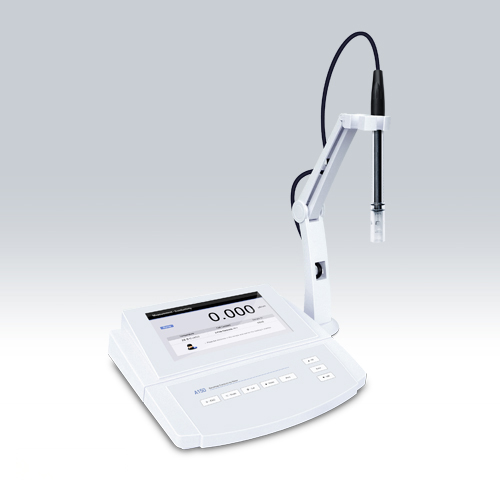

Conductivity Meter: what is it?
Conductivity is the ability of a material to conduct an electric current, that is, a measure of the total ionic concentration of a solution; the ...
Conductivity applications
A conductivity meter is a scientific instrument used to measure the electrical conductivity of a solution. The results obtained from a conductivity meter are...
Laboratory conductmeter, operation
A conductivity meter or conductivity meter is a laboratory device, which is used to measure the amount...

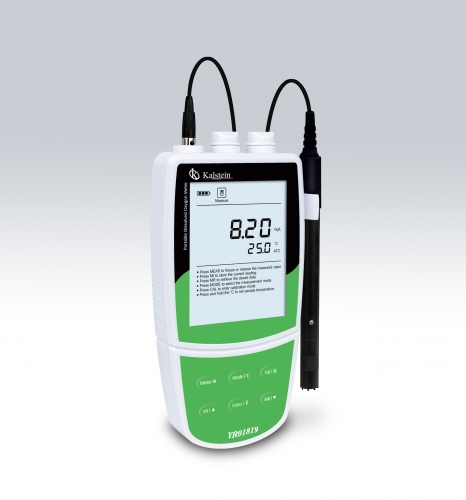

Ion and Conductivity Meters: Differences
Today’s ion meters are based on the ion-selective electrode technique. These are measuring instruments....
Catalog of models of Conductivity Meters on offer
-
YR01830 Benchtop TDS / Conductivity Meter
Select options -
YR01836 Benchtop pH / Conductivity Meter
Select options -
YR01808 Pocket TDS ° C / ° F Conductivity Meter
-
Pocket Salinity Meter YR01815-1
-
Benchtop Conductivity / TDS / Salinity / Conductivity Ash Meter YR01827
Select options -
YR01810 Pocket Conductivity / TDS / Salinity Meter
-

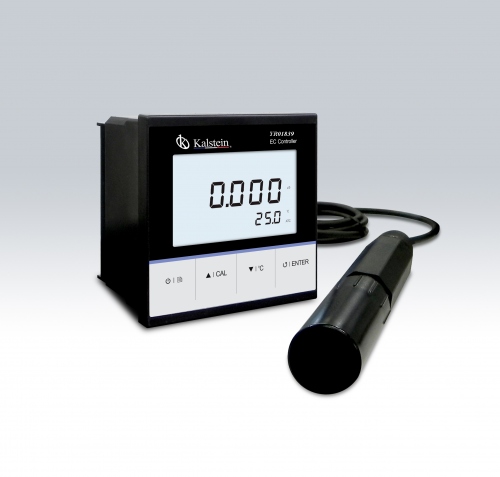

YR01839 Online Conductivity Controller
-
YR01828 Benchtop Conductivity / TDS / Salinity / Resistivity Meter
Select options
Guides to becoming an expert in Conductivity Meters
Conductivity meter or conductivity meter: How should he be employed?
A conductivity meter or conductivity meter is a device used to determine the electrical conductivity of the ions in a solution...

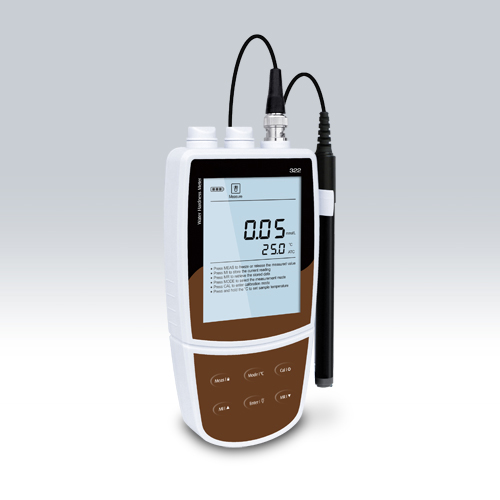

How to choose the right Conductivity Meter for your Laboratory?
Conductivity meters are widely used in many different industries to measure the amount of minerals dissolved in...
The most common errors when measuring conductivity
Conductivity meters are used to determine the amount of salts in the water. These instruments send an electrical...

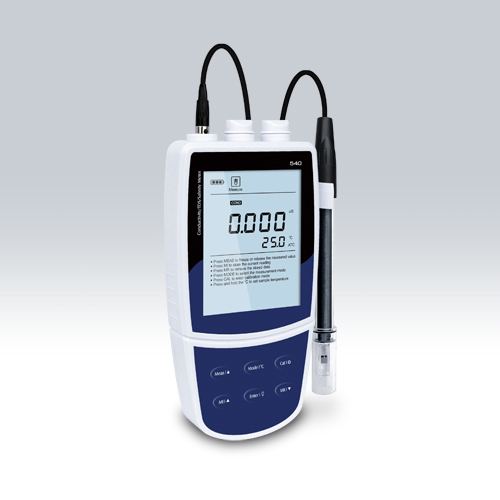

Importance of a conductivity meter in a laboratory
A conductivity meter or conductivity meter is a laboratory device that measures the electrical conductivity of the ions in a solution. For what applies an electric field between two electrodes and performs a measurement of the electrical resistance in the dissolution...
Frequently Asked Questions about Conductivity Meters
How to know the prices of the Conductivity Meters?
To know the price of the Conductivity Meters we invite you to send us an email with your request through the contact form..
What are the lead times for Conductivity Meters?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Conductivity Meters?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
