Water Baths, Circulators & Chillers
Distilled water should be used, as it is considered to be a pure water, not weighing chlorine or minerals, which may cause some kind of reaction or boil that could damage the sample or equipment; has a pH of around 7, making it a neutral p, there are different types of distilled water that are classified by their purity level; they are classified through their chemical and physical properties.
Distilled water is used to prevent the embedding of metal ions on the resistance, this water is widely used not only in the baths of mary but in the different uses of the laboratory, to clean the equipment, prepare samples since it is free of electrolytes and mineral salts, in addition it is insulating and repels magnetism, and above all distilled water is used because its boiling point is higher than ordinary tap water.
Types of Laboratory Water Baths that a Laboratory may need
Oil Bath
Oil baths are essentially the same as water baths with the difference that some oil is used instead of water. They are suitable when the temperatures to be reached exceed 100 ° C. For these baths it is important to use very thick-walled beakers to contain the oil.
Because oils have a high heat capacity and heat slowly, it may be helpful to partially heat the bath oil while the experiment is being set up.
Transparent Water bath
Transparent water bath is a common piece of equipment in many laboratories. It is used for a variety of tasks, including culture incubation, serologic sample testing, and warm-up reagents. The bathroom uses a heating element to maintain a constant temperature, usually between 37 and 60 degrees Celsius. The water is kept circulating by a pump, and the level is maintained by a float switch.
The toilet is usually placed on a bench or in an extractor hood, and connected to an outlet. The equipment should be filled with distilled water before use. The water level should be checked regularly, and the bath should be emptied and refilled when necessary.
In Kalstein you can find the Water Baths ideal for your Laboratory
Heating circulating bath YR04977
YR series heating circulating bath provide room temperature to 100℃, 200℃, and can be customized ...

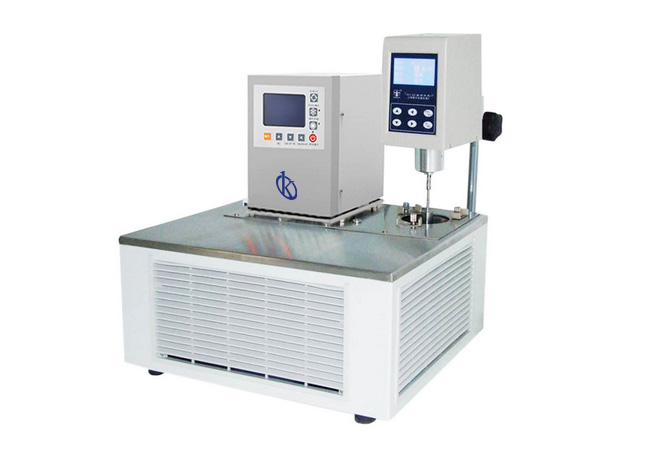

Viscometer circulating bath YR04985
YR Circulation bath is specially used for viscometers, high temperature control accuracy, low fluctuation ...
Cooling and heating circulating pump YR05001
It contains refrigerating system, heating system, pre-cooling system, three systems can be used continuously...
Transparent Water Bath YR05080 // YR05082
YR transparent water bath series is with transparent chamber design, with big improvement on...
Our Best Selling Water Baths
- Integrated stamped chamber, groove at bottom for better drainage
- Stainless Steel 304 material chamber and shelf, anti rust
- Five rings lid, more convenient for different sizes of glasswares
- Hidden drain tube, beautiful and easy to use
- Microcomputer PID control, accuracy 0-1°C
- With Timer 0 – 9 999min
- Triple safety function
- -Overcurrent protection
- -Over temperature alarm
- -Prevent dry burning function
| Model (Integrated Chamber) | YR05066 | YR05067 | YR05068 | YR05069 | YR05071 | YR05072 | YR05073 | YR05074 | |
| Controller | PID | ||||||||
| Voltage | 220V / 50Hz 110V / 60Hz | ||||||||
| Power (W) | 300W | 600W | 800w | 1 200w | 300W | 600W | 800w | 1 200w | |
| Temperature – Range °C | RT +5~100 °C | ||||||||
| Temperature Resolution | 0.1°C | ||||||||
| Temperature Fluctuation | ≤± 0.5°C | ||||||||
| Division Accuracy | ≤± 1°C | ||||||||
| Timer | 999 minutes | ||||||||
| Safety | Overcurrent protection, Over temperature alarm; Prevent dry burning function | ||||||||
| Chamber Size (mm) | 160x160x130 | 305x160x130 | 305x305x130 | 470x305x130 | 160x160x130 | 305x160x130 | 305x305x130 | 470x305x130 | |
| Product Size (mm) | 200x200x220 | 345x200x220 | 345x345x220 | 510x345x220 | 200x200x220 | 345x200x220 | 345x345x220 | 510x345x220 | |
| Packing Size (mm) | 250x250x270 | 400x250x270 | 400x400x270 | 550x400x270 | 250x250x270 | 400x250x270 | 400x400x270 | 550x400x270 | |
| Net Weight | 3 Kg | 4 Kg | 6 Kg | 8 Kg | 3 Kg | 4 Kg | 6 Kg | 8 Kg | |
| Gross Weight | 3.5 Kg | 5 Kg | 7 Kg | 9 Kg | 3.5 Kg | 5 Kg | 7 Kg | 9 Kg | |
Analysis of the best Water Baths for your Laboratory
Oil baths: What is your role in the laboratory?
An oil bath is a thermostatic equipment used in chemical research laboratories to transfer heat indirectly...
Why is a water bath essential in a laboratory?
This equipment has varied and indispensable applications in the laboratories, thanks to its hot water...
Using Water Baths to Conserve Serologic Tests
Biopreservation is the science of protecting biological samples for future use. Samples may be retained...
Laboratory Water Baths: Uses and types
A water bath is a laboratory equipment consisting of a container filled with hot water, used to incubate ...
Water Bath models on sale
-

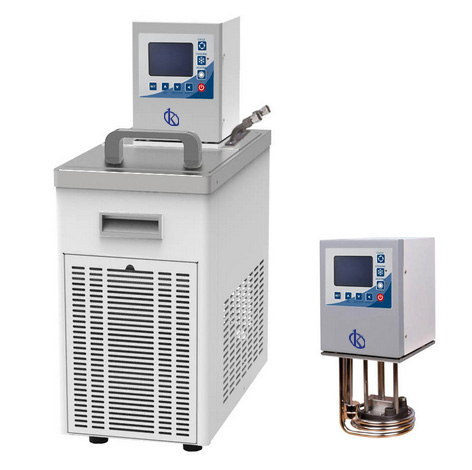

Cooling and heating circulating bath YR04986 // YR05000
Select options -
Water bath YR05066 // YR05074
Select options -
Heating circulating bath YR04977 // YR04984
Select options -

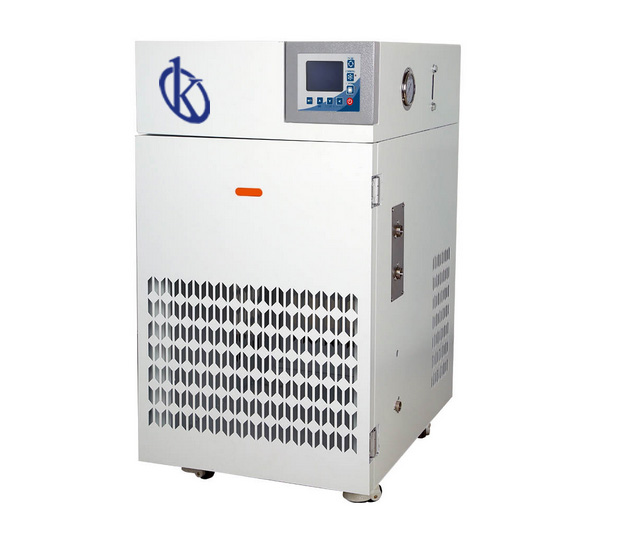

Cooling and heating circulating pump YR05001 // YR05004
Select options -
Thermostatic Magnetic Stirring Bath YR02311 // YR02312
Select options -
Oil bath YR04973 // YR04976
Select options -
Shaking Water Bath YR030L
-
Transparent Water Bath YR05080 // YR05082
Select options
Guides to becoming an expert in Water Baths
Recirculation baths and Mary’s baths: differences?
A recirculation bath is a laboratory device, consisting of a water bath with a built-in water recirculation pump, an ideal ...
How does the Transparent Water Bath work in the Lab?
Transparent water bath is a common piece of equipment in many laboratories. It is used for a variety of tasks, including...
What type of water should be used for a water bath?
Water baths are equipment that allows maintaining a uniform temperature necessary for different tests and laboratory...
What are the Recommendations for Using Water Baths in the Laboratory
Water baths are used in a variety of studies and tests, including enzymatic reaction studies, growth observational studies, cellular transport studies and more. In general, a water bath is used to maintain a solution at a specific temperature for a specified period of time...
Frequently Asked Questions about Water Baths
How do you know the prices of Water Baths?
To know the price of the Water Baths we invite you to send us an email with your request through the contact form.
What are the delivery times of the Water Baths?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
- Delivery Time (Air): 15-30 days.
- Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
- Delivery Time (Air): 30-60 days.
- Delivery Time (Maritime): 60-90 days.
How to make a purchase of Water Baths?
You can purchase through:
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
