Application of Ultrasound in the Diagnosis of Reproductive System Diseases
The use of ultrasound in the diagnosis of reproductive tract diseases has greatly improved the accuracy of diagnosis and management of these conditions...
Ultrasound scanner
An ultrasound scanner is a medical device that makes it possible to obtain diagnostic images from the echoes obtained by the emission of ultrasound waves. These waves are produced by an instrument called a transducer, which, in addition to producing ultrasound waves, is also capable of detecting the echoes reflected by the ultrasound, generating two-dimensional images of tissues and organs.
The transducer picks up the echo from the sound waves and a computer converts it into an image that appears on the screen. In most cases, the elements that make up the transducer are made of ceramic glass called piezoelectric. These are capable of producing sound waves when an electric field passes through them, and they are also capable of working in the reverse direction, producing an electric field when receiving sound waves.
Types of Ultrasound Scanners that may be needed in the Medical Sector
Ultrasonic Color Doppler Diagnostic System
- 15 inch large LED color display Real Doppler function USB ports and VGA port and 4 probe connectors
- Main Application: Abdomen/Cardiac/Obstetrics/Gynecology/Urology/Andrology/Small/Vascular/Pediatrics/Musculoskeletal disorders and so on.
- Modes image: B 2B… 4B MB/M/B/C. B/D/B/C/D/B/CFM/D CF + Model B Simultaneously PDI Dual Color Simultaneous Color 2D/3D/4D Composite Color PW CW Duplex/Triplex… CFM… CDE CD Directional PD Anatomy M Color M Mode
Ultrasonic diagnostic equipment
- PC-based ultrasound, which can be connected with any printer of any brand.
- Integrated 3D software, free to activate during the New Promotion.
- Built-in battery, which can work continuously at least 3 hours when power off.
- 6 types of automatic reports and measurements for OB/GYN, Cardiac, Urology, Small Organ, Muscle, Vascular, etc.
- Large 15-inch LED monitor.
- Under use, relative tips will appear at the bottom of the screen to guide your next operation.
ULTRASOUND SCANNER KALSTEIN
At Kalstein you will find the ideal ultrasound scanner for the Medical Sector
There are countless models, so it is normal that you do not know which Ultrasound Scanner to buy to meet your needs. At Kalstein, we evaluate you to find what you're looking for.

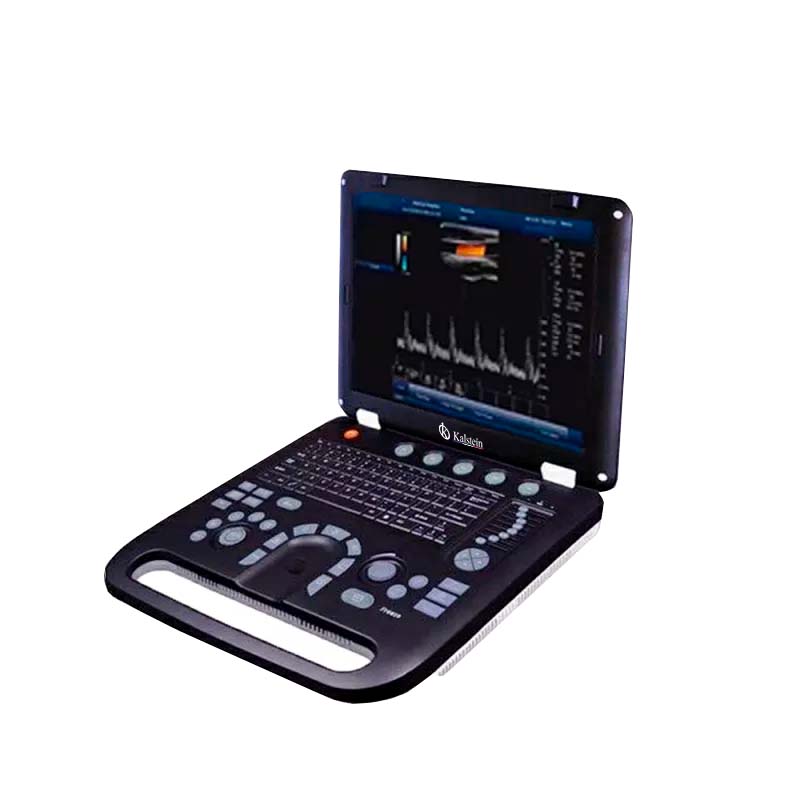

ultrasound machine for sale with convex probe
CF + B model simultaneously, PDI, DPDI, TDI, TSI, supports trapezoidal imaging, virtual convex matrix and convex...

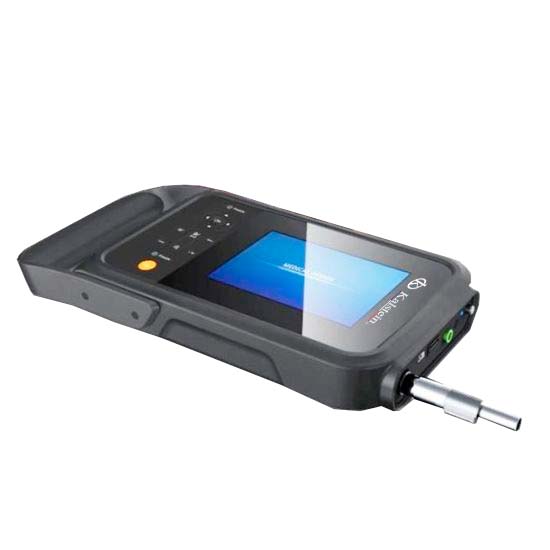

Veterinary Ultrasound with Professional Rectal Probe
Veterinary Ultrasound with Professional Rectal Probe. Detachable battery that can work more than 3 hours....

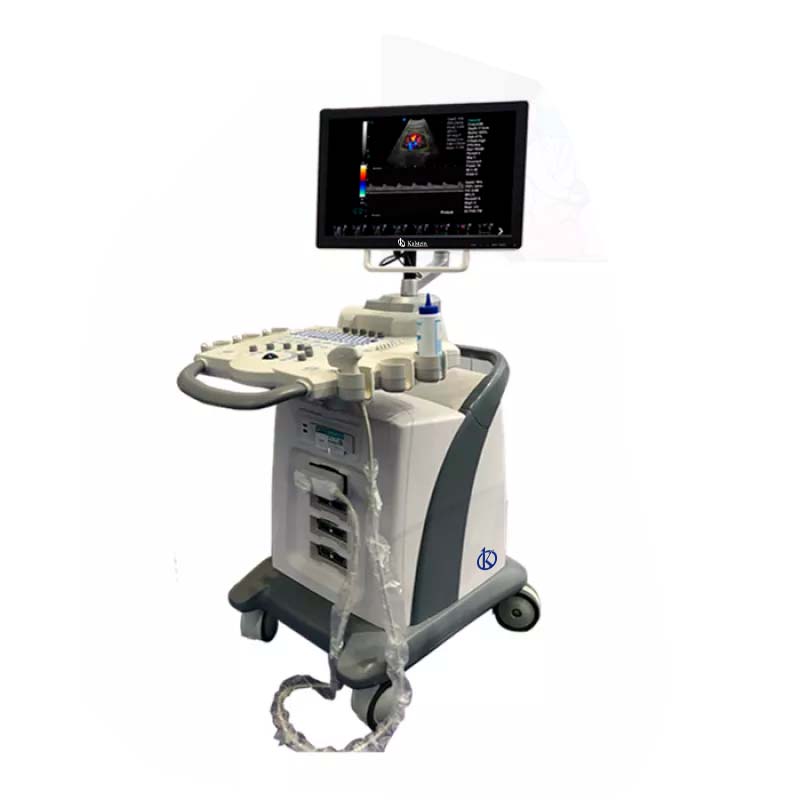

Color Doppler Ultrasound 128 Elements Good Quality
15 inch large LED color display Real Doppler function USB ports and VGA port and 4 probe connectors...

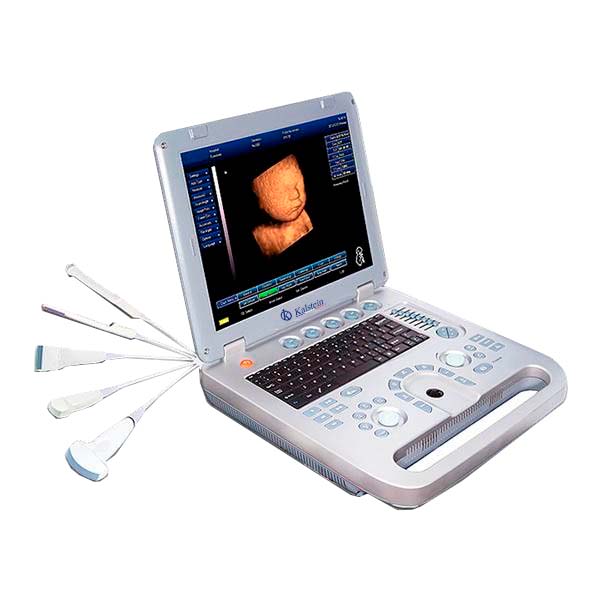

Obstetric ultrasound 3D4D GYN YR05147
PC-based ultrasound, which can be connected with any printer of any brand. Large 15-inch LED monitor...
Our Best Selling Ultrasound Scanner
- 15 ′ LED display with multilingual function
- CF + B model simultaneously, PDI, DPDI, TDI, TSI, supports trapezoidal imaging, virtual convex matrix and convex matrix expansion.
- Anatomy M, Color M mode
- Pressure rating
- Complex model image
- Automatic IMT measurement, automatic endometrial measurement, automatic quality assessment
- Duplex and triplex PW can be switched freely
- PW auto-tracking measurements
- Multiple birth measurements
- Built-in DICIM 3.0 protocol, can print and send via DICOM 3.0
| Model | YR05148 | |
| Picture Modes | B, 2B, 4B, M, B / M, B / C, B / D, B / C / D , B / CFM / D, PDI Color, Dual Color, Simultaneous 2D / Composite Color, PW, Duplex / Triplex, CFM, CDE, PD, Directional PD, CD |
|
| Physical specifications | ||
| Team Size | 375mm * 360mm * 75mm | |
| Equipment Weight | 3.5 kg | |
| Packing size | 490mm × 270mm × 490mm | |
| Packaging Weight | 10kg | |
| Connectivity / Media / Peripherals | ||
| Transducer Ports | two | |
| USB ports | two | |
| HDD | 64GB (SSD), 120G / 200GB SSD (optional) | |
| Printing area | Image, report, Image + report | |
| Ethernet port | 2 (100Mb / 1000Mb) | |
| External display | VGA, HDMI, etc .. | |
| Printer (Optional) | USB Printer, Digital Laser Printer, B / W Digital Thermal Printer |
|
| Digital technology | Panoramic imaging technology Fully digital signal processing technology Multi-beamforming technology Spot reduction technology Tissue harmonic imaging technology Dynamic tissue optimization technology Duplex and triplex synchronous display Directional power Doppler imaging parameters Imaging parameters special tissue presets PW Online Auto Trace Update CF + B mode on one screen Complex model imaging Automatic IMT measurements Virtual convex matrix Trapezoidal imaging |
|
| General performance | Digital broadband | 12288 channels |
| Beam former | reprogrammable | |
| Transmission voltage | Adjustable (15 steps) | |
| Beamformer frequency range | 1 ~ 40 MHz | |
Analysis of the best Ultrasound Scanners in the Medical Sector
How does an ultrasound scanner work?
An ultrasound scanner is a medical device that provides images of most soft tissues through the use of ultrasonic waves...
How is an ultrasound scanner used?
An ultrasound scanner is a specialized medical device that uses ultrasonic waves, i.e. waves with frequencies above...
What is an ultrasound scanner?
An ultrasound scanner is a medical device that provides images of most soft tissues through the use of ultrasonic waves..
Ultrasound scanner: What data does it provide?
An ultrasound scanner is medical equipment that provides images of most soft tissues without subjecting patients...
Ultrasound Scanner Models Catalog on Sale
KALSTEIN UPDATED
Guides to Becoming an Ultrasound Scanner Expert
Ultrasound scanners are essential products in the Medical Sector, we provide guidelines and recommendations for their best use, so you can work like an expert.
What science do I invent ultrasound?
An ultrasound scanner is a medical device used to obtain images of most soft tissues through the use of ultrasonic waves...
Ultrasound scan: characteristics
An ultrasound scanner is a medical device that allows images of most soft tissues to be obtained using ultrasonic waves...
Recommendations and ultrasound care?
An ultrasound scanner is a medical device that makes it possible to obtain diagnostic images from the echoes obtained by the...
Frequently Asked Questions about Ultrasound Scanners
How to know the prices of Ultrasound Scanners?
To know the price of Ultrasound Scanners we invite you to send us an email with your request through the contact form.
What are the delivery times of Ultrasound Scanners?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your in terestis in stock orifitmustbe manufactured.
- The type of freight you have chosen, this may be; air or sea.
- Equipment in stock:
-Delivery Time(Air):15-30days.
-Delivery Time(Maritime):45-60days.
- Equipment not in stock:
-Delivery Time (Air): 30-60days.
-Delivery Time (Maritime): 60-90days.
How to make a purchase of Ultrasound Scanners?
You can make your purchase through:
- By email: sales@kalstein.eu
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
All Kalstein equipment has a 1-year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or by uses other than those specified by the manufacturer. Warranty excludes electrical or consumable parts. For more information visit our “terms and conditions” by clicking HERE
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
