Laminar flow hood, clean bench and Biosecurity Cabinet
The structure of a safety cabin is quite similar to that of vertical laminar flow bells, but they also have HEPA filters in the air outlet that retain the contaminants present, thus allowing to protect the product, the operator, and the environment.
The safety cabins feature a safety glass sheet that provides maximum optical capacity to manipulators by amplifying cellular components. Air quality inside the cabin is sustained (such as open air or with circulators and filters) to ensure that there are no particles that could impact samples and experiments. They also have cabinets that emit intense ultraviolet light in timed increments, thus facilitating the sterilization of the environment.
Types of Biosafety Hoods and Cabinets a Laboratory May Need
Class II Biosafety Cabinets
- Class II A2 Biosafety Cabinets are characterized by their work surface, interior walls, and exhaust air that are HEPA-filtered, providing a high level of protection for both the worker and the environment. The interior of the cabinet is under negative pressure relative to the surrounding laboratory area, which helps to prevent the release of hazardous materials. The air within the cabinet is exhausted through a HEPA filter, removing any potentially contaminated particles.
- Class II A2 Biosafety Cabinets are designed for use in laboratory applications where low to moderate risk biological agents are being manipulated, such as cell culture, tissue culture, and handling of samples from infected animals or patients. They are commonly used in medical, pharmaceutical, and research laboratories.
- In summary, Class II A2 Biosafety Cabinets provide a controlled and contained environment for the handling of low to moderate risk biological agents, while protecting the worker and the environment from exposure.
Horizontal laminar flow cabinet
- The whole equipment adopts cold-rolled plate welding, and the surface is electrostatic sprayed.
- The air supply mode of the equipment is divided into vertical air supply and horizontal air supply, quasi-closed glass damper, which is easy to operate.
- Small and exquisite, it can be freely placed on the general workbench for operation, which is convenient for use in small studios.
- The fan system is controlled by a remote switch fast and slow dual speed to ensure that the wind speed in the work area is always in an ideal state.
In Kalstein you can find the Biosafety Hoods and Cabinets ideal for your Laboratory
Biological Safety Cabinet Class II A2 YR0090B
Get to know more about Kalstein’s new Full Stainless Steel Biosafety Cabinet, with front window operation port...
Horizontal Air Supply Clean Bench YR05730
Equipped with HEPA high-efficiency air filter, with primary filter for preliminary filtration, which can effectively...
Laminar Flow Cabinet YR05732
This is a Kind of new type horizontal unidirectional clean bench widely used in electron, national defense, precise instrument and apparatus, pharmacy...
Class 100 Horizontal Air Laminar Flow Cabinet
The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304...
Our Best Selling Biosafety Hoods and Cabinets
This is a kind of clean bench widely used in medical treatment, chemical experiment, electron, precise machinery, instrument, apparatus, medical preparation, operating room, foodstuff, drinks, dailyuse cosmetic, stock raising and aviation, as well as providing germfree dustless clean environment.
- Adopting arbitrary positioning sliding door system
- The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
- The lighting and sterilization systems are interlocked safely, and have the timing function of the ultraviolet lamp
- Digital display LCD contrai interface, more user-friendly design.

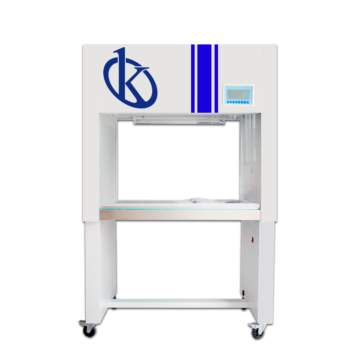

| Model | YR05738 |
| Air supply | Vertical Air Suppply |
| Cleanliness grade | Class 100 (US Federal 209E) |
| Number of colonies | ≤0.5pcs/dish-hour (Ø90mm culture dish) |
| The average wind speed | 0.25-0.45m/s |
| Noise | ≤62dB (A) |
| Power supply | AC single phase 220V /50Hz |
| Vibration half peak | ≤0.5µM (x, y, z direction) |
| Illumination | ≥300LX |
| Max. Power consumption | 400 W |
| Dimension of working area (W*D*H)(mm) |
880x650x580 |
| Overall dimension (W*D*H)(mm) | 1040x690x1600 |
| Specification and quantity of high efficiency filter |
865x555x50x 1 |
| Specification and quantity of fluorescent lamp/UV lamp |
12 W x 1 / 30 W x 1 |
| Applicable persons | Single person- Single Side |
Analysis of the best Biosafety Hoods and Cabinets for your Laboratory
Horizontal laminar flow hood
Horizontal laminar flow hoods are those in which the HEPA filter is placed at the rear of the cabin, so the unidirectional air flow moves through horizontal parallel lines, that...
Laminar Flow Hood, Why are they used?
A laminar flow Hood is a laboratory instrument that is used to obtain a free environment of contamination, to the...
Biosafety cabinet for PCR and Covid
A biosafety cabinet for polymerase chain reaction (PCR) work is laboratory equipment that confers a work...
Horizontal laminar flow hoods and in vitro botany
Horizontal laminar flow hoods are workstations that have a built-in filter system for air filtration and are therefore...
Catalog of Biosafety Hoods and Cabinets on offer
-
Laminar Flow Cabinet YR05725
-
Laboratory Fume Hood,acid and alkali resistance Fume Cupboard Hospital Laboratory equipment YR05817 // YR05819
Select options -
Vertical Laminar Flow Cabinet YR05735
-
Laminar Flow Cabinet YR05743
-
Laminar flow cabinet (Single Person) YR05266-1
-

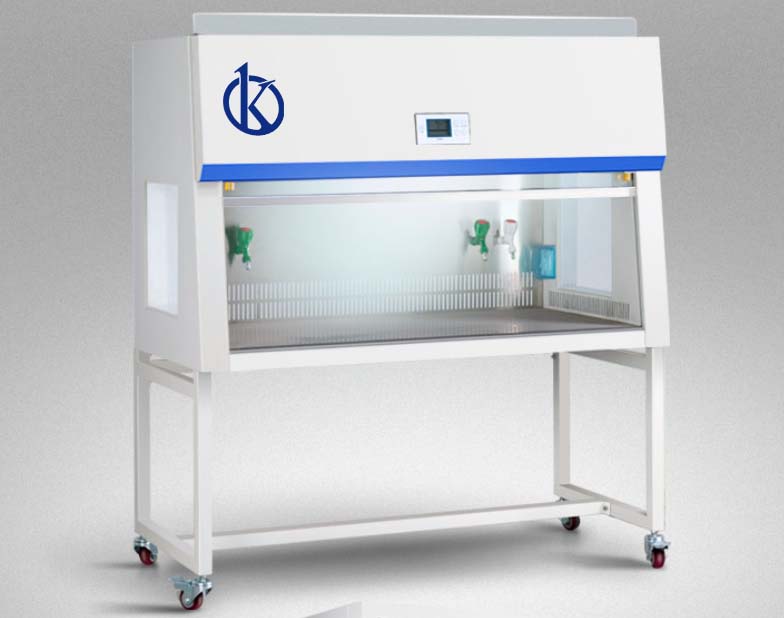

Laminar Flow Cabinet (Double Person) YR05268-1 // YR05269-1
Select options -
Horizontal Air Supply Clean Bench YR05733
-
Class 100 Horizontal Air Laminar Flow Cabinet YR05726
Guides to becoming an expert in Biosafety Hoods and Cabinets
What types of laboratories are used in?
Biological safety Hoods are equipment that provide protection for the operator against infectious agents. Their designs...
Horizontal laminar flow Hood: What is your application?
A laminar flow hoods a laboratory equipment used to obtain a pollution-free environment, as it provides a sterile and safe ...
Biosecurity Cabinet: When should they be used?
Biological safety cabinets are laboratory equipment that acts as ventilated enclosures designed to protect the operator...
What are the differences between laminar flow hoods and type I biosafety Cabinet
A laminar flow hood is equipment used in laboratories in order to provide a pollution-free environment, as it offers a sterile and safe area within the laboratory, and any activity that is required safely can be carried out within it. The laminar flow hoods have ...
Biosafety Hoods and Cabinets in operation
A laminar flow hood is equipment used in laboratories in order to provide a pollution-free environment, as it offers a sterile and safe area within the laboratory, and any activity that is required safely can be carried out within it. The laminar flow hoods have a HEPA filter, which is responsible for filtering the air and maintaining the air flow.
While a biological safety cabinet (BSC) represents a primary containment barrier that allows safe working with biological agents. It is equipment that has a structure designed to prevent the exit of bioaerosols from the work area and therefore protect users and the environment from possible exposure to biological agents. There are three types: type I, type II, and type III. In the case of type I, it provides protection to the user and the environment but does not protect the product from possible contamination.
Frequently Asked Questions about Biosafety Hoods and Cabinets
How to know the prices of Biosafety Hoods and Cabinets?
To know the price of Biosafety Hoods and Cabinets we invite you to send us an email with your request through the contact form.
What are the delivery times for Biosafety Hoods and Cabinets?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
- Equipment in stock:
How to make a purchase of Hoods and biosecurity Cabinets?
- [email protected]
- Telephone: +33 (0) 1 78 95 87 02
- E.commerce: via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
