An ion meter is a device used in laboratories and industries to measure the concentration of ions in a solution, by using ion electrodes (ISE) thanks to its electrochemical activity. An ion selective electrode (ISE) is a kind of sensor that allows ion testing in various types of samples. The process that these electrodes work with is ion exchange, which measures the potential difference that is produced by the contact of the electrode with the ion being determined.
These innovative equipment currently have many utilities, but it is used more frequently to measure and control water purity. Because pure water is required for many laboratory and clinical procedures. Moreover, that drinking water for consumption, should be as optimal as possible to avoid diseases and health conditions of people.
As mentioned above the measurement of the ion concentration or the measurements of specific ions through an ion meter can be performed on a wide variety of samples such as: water, food, beverages, pharmaceuticals and also samples of biological origin.
An ion meter works by selective ion electrodes (ISEs) which are measuring devices with a sensitive membrane capable of measuring ion activity. These devices measure the concentration of ion determined in a solution using a sensor electrode and a reference electrode. They work through ion exchange, where the difference in potential that is generated when the electrode comes in contact with the ion being studied is measured. The specific ion activity is transformed into electrical potential at the moment it comes into contact with the active membrane of the selective ion electrode.
Setup menu allows you to configure the number of calibration points, stability criteria, temperature,Unit, date and time...
Multiparameter portable ion meter, 2 to 5 points calibration, selectable ion concentration units. The meter is suitable...
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, stability criteria, temperature
unit, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface for data transfer or connecting a power adapter to meter.

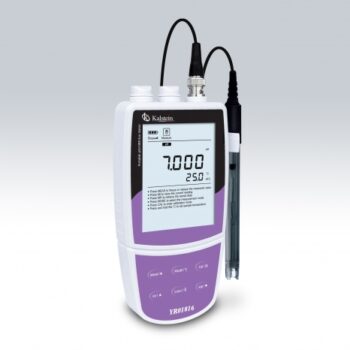

| Model | YR01816 |
| pH | |
| Range | -2.000 to 20.000pH |
| Resolution | 0.001, 0.01, 0.1pH, selectable |
| Accuracy | ±0.002pH |
| Calibration Points | 1 to 5 points |
| pH Buffer Options | USA, NIST, DIN, 2 custom buffers |
| ORP | |
| Range | ±1999.9mV |
| Resolution | 0.1, 1mV, selectable |
| Accuracy | ±0.2mV |
| Calibration Points | 1 point |
| Measurement Modes | Relative or absolute mV |
| Ion Concentration | |
| Range | 0.001 to 19999 (deponding on the range of ISE) |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Accuracy | ±0.5% F.S. (monovalent), ±1% F.S. (divalent) |
| Calibration Points | 2 to 5 points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 |
| Measurement Units | ppm, mg/L, mol/L, mmol/L |
| Temperature | |
| Range | 0 to 105°C/32 to 221°F |
| Resolution | 0.1°C/0.1°F |
| Accuracy | ±0.5°C/±0.9°F |
| Offset Calibration | 1 point |
| Calibration Range | Reading ±10°C |
| General Specifications | |
| Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic |
| Stability Criteria | Low or high |
| Calibration Due Alarm | 1 to 31 days or off |
| Auto-Power Off | 10, 20 or 30 minutes after last key pressed |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC, 3.5mm jack socket |
| Display | Custom LCD (80×60mm) |
| Power | 3×1.5V AA batteries or DC5V power adapter |
| Battery Life | Approximately 150 hours (turn off the backlight) |
| Dimensions | 170(L)×85(W)×30(H)mm |
| Weight | 300g |
The ion meter is a piece of equipment used to detect the concentration or activity of ions in a solution...
A pH meter is a laboratory instrument for scientific use, which measures the activity of the hydrogen ion in aqueous solutions, indicating its degree of acidity ...
An ion meter is a device used in laboratories and industries to measure the concentration of ions in a solution,...
The potassium meter is a portable, safe and easy-to-use device. This device is essential for laboratory ...
An ion meter is an electrochemical analytical device that is used to measure ion concentration in a solution. It is used...
An ion meter is an analytical and electrochemical instrument used to measure the concentration of ions in a solution...
In the manufacture of cosmetic products there are three essential aspects that must be addressed, the first, the elaboration...
In recent years the use of chlorine for swimming pool disinfection has been replaced by ionization with copper or with the combination of copper and silver. This procedure is performed with copper ionizers. These devices use electrolysis to release copper...
In this section you can find, our Ion meter running, packaged, receiving service, etc.
An ion meter is an electrochemical analytical device that is used to measure ion concentration in a solution. It is used with several ion electrodes (ISE).
An ion is an atom or a group of atoms with electric charge. This charged particle can be positive or negative. A cation is an ion with positive charge and an anion is one with a negative charge (atom or molecule). The ions are formed when a neutral (electrically neutral) atom loses or gains electrons. The anions have more electrons than protons and cations have a higher proton number.
Measuring the concentration of ions or measurements of specific ions through an ion meter can be performed in a wide variety of samples such as water, food, beverages, pharmaceutical products and samples of biological origin.
To know the price of the Ion Meter we invite you to send us an email with your request through the contact form..
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
