A patient monitor is a medical device used to continuously detect, process and deploy the vital parameters of a patient under continuous medical surveillance, including respiratory rate, blood pressure, body temperature and pulse. This device performs a real-time recording of these parameters, reflecting their information in the form of waves and numbers for further clinical interpretation.
Patient monitors are very useful in health institutions where emergency and hospitalization services are provided. It is equipped with a series of alarms that alert health personnel when there is an adverse situation or outside the desired limits, although these can be silenced if they are trying to solve the problem that has generated them.

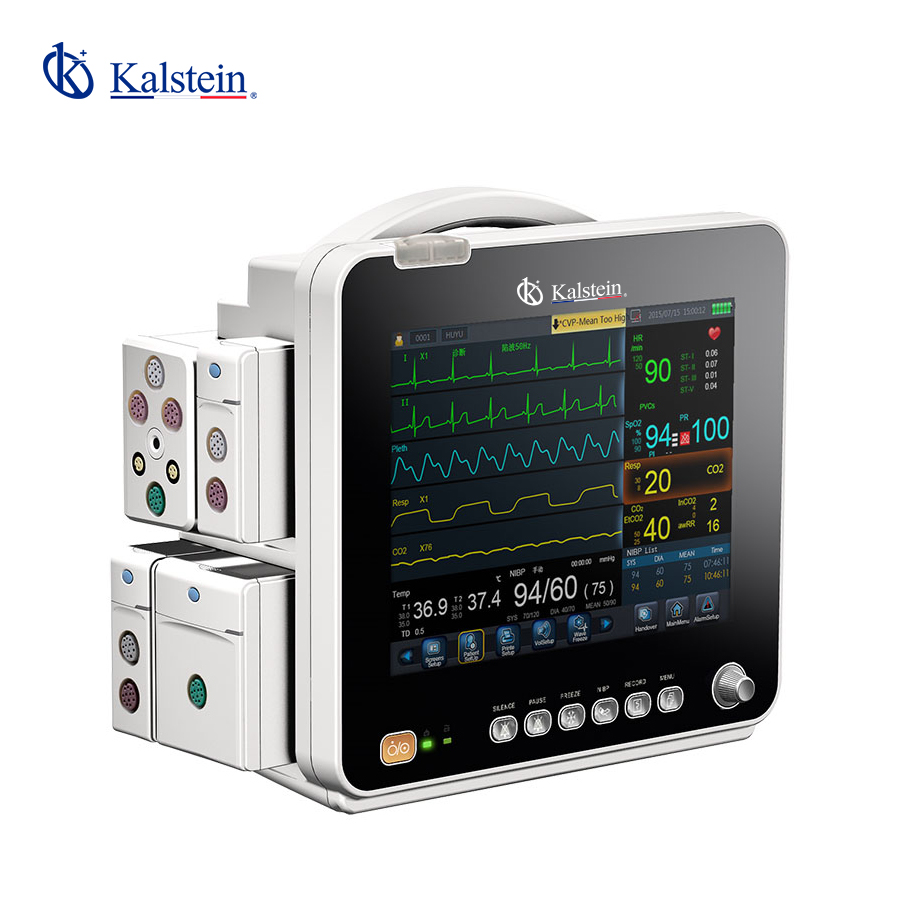

8.4 inch touchscreen; Embedded handle; Able to use module; 1.6kg of weight; 5 hours of battery life; No-fan...
Monitoring of adults, children and newborns is supported;Slim body with hidden handle, easy to move;Visual and...

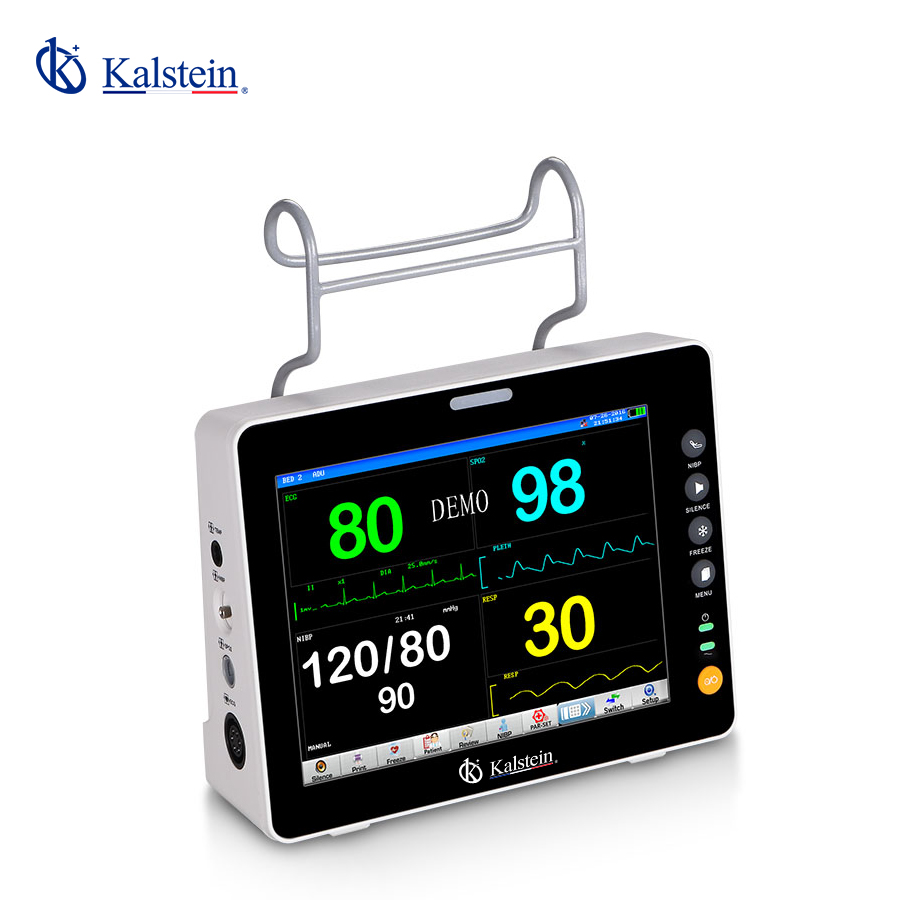

NICU Monitor. Devised specillay for neonatal. 8.4 inch touch screen,ECG (3 lead), Suntech NIBP, Masimo SpO2...

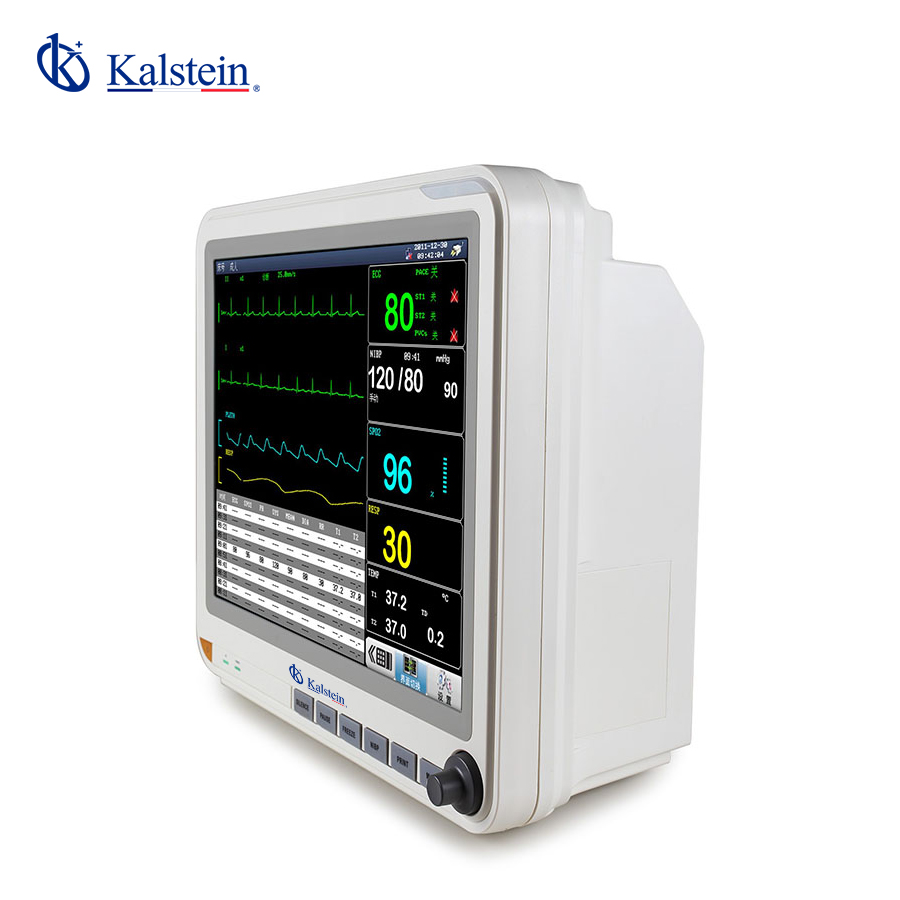

12.1 inch high resolution LCD display; 35 million clicking times long life touch screen with Accutouch technology...
| Model | YR02176 |
|
Input
|
3 leads or 5 leads selectable |
| 3-conductor cable: RA; LA LL or R: L; F | |
| 5 Lead wire: RA: LA: RL: LL: V or R: LN: F: C | |
|
Selection of potential clients
|
3 leads: 1, 1, 111 |
| 5 leads: 1, Il, Il, AR, AVL, AVF. V | |
| ECG waveform | 2 channels |
| Win selection | x0.25, x0.5.x1, x2.x4, Automatic |
| Sweep speed | 12.5mm / s, 25mm / s, 50mm / s |
| Heart rate | for newborns 15-350BPM |
| Heart rate | for AdulVPediatric 15-300BPM |
| Precision | 1 bpm or 1%, whichever is greater |
| Resolution | 1 bpm |
| Filter diagnostic mode | 0.05-100 Hz |
| Monitor mode | 0.5-40 Hz |
| Surgical mode | 1.0-25Hz |
| Protection | Withstands 4000VAC / 50Hz voltage in isolation Against electrosurgical interference and defibrillation |
|
Alarm range
|
Newborn: 15-350 BPM |
| Adult / pediatric: 15-300 BPM | |
| ST segment detection | Measurement range: -2.0 mv to 2.0 mv |
| Alarm range | -2.0m and 2.0mv |
| Arrhythmia analysis | Yes |
| Alarm | audible and visual alarm, recoverable alarm event |
| Rhythm detection | Yes |
| Calculation of drug dose | Yes |
| Standby mode | Yes |
| Breathing | |
| Method | Tooraclc impedance |
|
Measuring range
|
Newborn / Pediatric: 0-150 RPM |
| Adult: 0-120 RPM | |
| Apnea alarm | No alarm, 10s, 15s, 20s, 25s, 30s, 35s 40s selectable |
| Alarm | Audible and visual alarm, recoverable alarm events |
| NIBP | |
| Method | Oscillometric |
| Measurement modes | Manual / Automatic / Continuous |
| Displayed parameters | Systolic, diastolic and MAP (mean arterial pressure) |
| Automatic measurement time | Adjustable |
| Unit of measurement | mmHg / kPa selectable |
| Type of measure | Systolic, Dlastolic. Piss |
|
Systollc pressure range
|
Adult: 40-270 mmHg |
| Pediatric: 40-200 mmHg | |
| Newborn: 40-135 mmHg | |
|
Diastolic pressure range
|
Adult: 10-210 mmHg |
| Pediatric: 10-150 mmHg | |
| Newborn: 10-100 mmHg | |
|
Medium pressure range
|
Adult: 20-230 mmHg |
| Pediatric: 20-165 mmH | |
| Newborn: 20-110 mmHg | |
| Precision | ± 5 mmHg |
| Resolution | 1 mmHg |
| Alarm | Systollc, Diastollc, Mean |
| Overpressure protection | Double safety protection |
Some tests for patients in intensive care units depend on direct observation and physical examination, and...
The patient monitor is a multifunctional instrument designed to monitor vital functional signs of adult and child patients....
Patient monitors, also called vital signs monitors, are essential medical equipment in every health care facility...
This medical equipment, needed in clinics and hospitals, is used to monitor and control the vital signs of the patient...
A patient monitor is a medical device used to continuously detect, process and deploy the vital parameters of a patient under....
A patient monitor is a medical device that allows monitoring the vital signs of patients in critical condition and should...
A patient monitor is one of the most important medical equipment in a hospital, clinic or other medical facility...
A patient monitor is an electronic device used in hospitals and clinics to monitor vital signs of patients who are in critical condition or who must undergo continuous medical surveillance, in case any alteration in the values of these occurs...
To know the price of Patient Monitor and Child Monitor we invite you to send us an email with your request through the contact form.
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
