A heating plate in the laboratory is a very useful piece of equipment. Its main use is to keep containers containing materials at a uniform temperature, as these containers are often located in different areas of the laboratory with different temperatures. This is especially important when it comes to mixing or handling chemicals.
Another common application is the process of performing a chemical reaction, often requiring high temperatures for the reaction to occur. Therefore, heating plates are often used to heat reagents to the appropriate temperature.
At Kalstein we have the right heating plate for the laboratory, thanks to its secondary thermal insulation plate prevents heat loss and eliminates heat damage to electronic components, adjustable temperature and rotation speed.

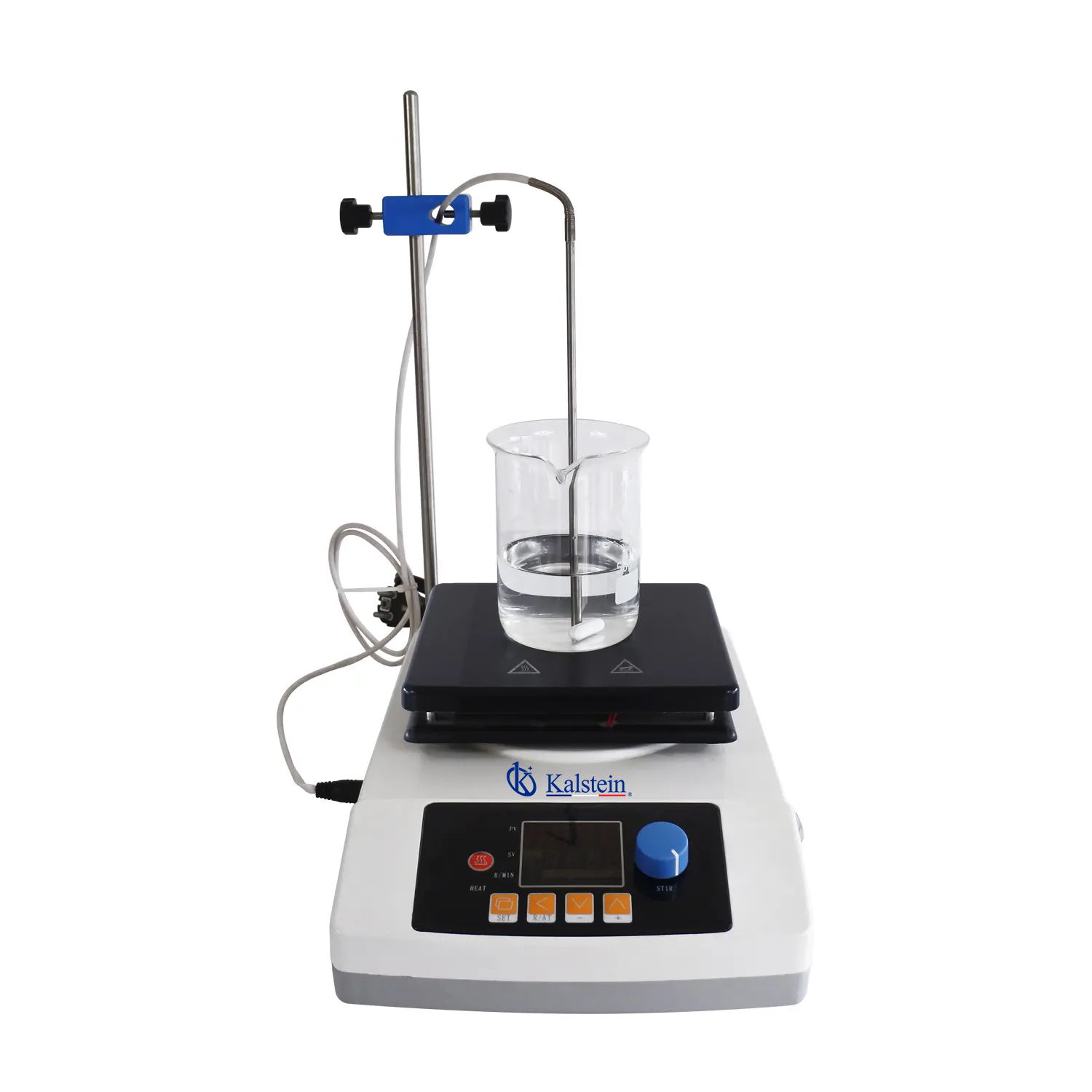

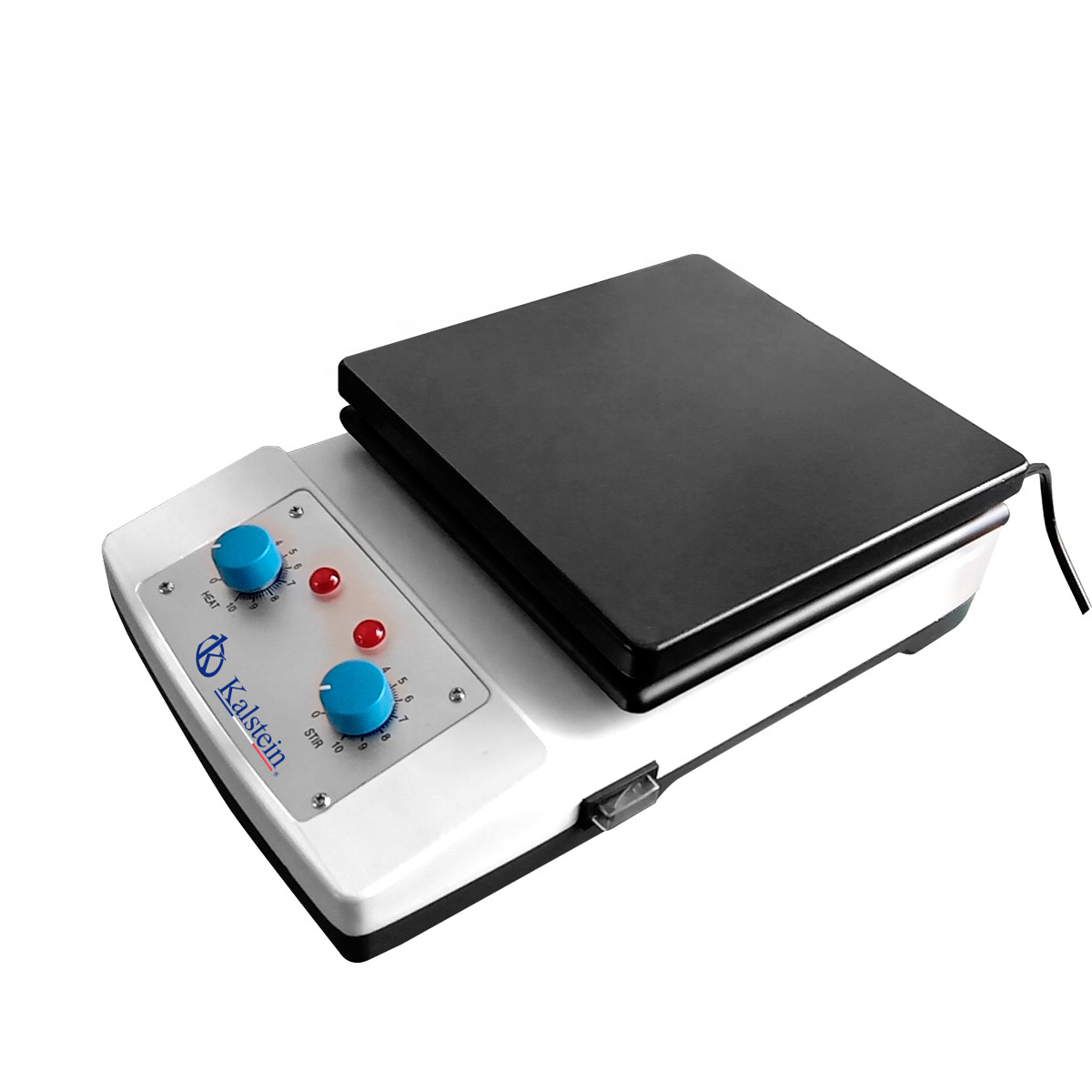

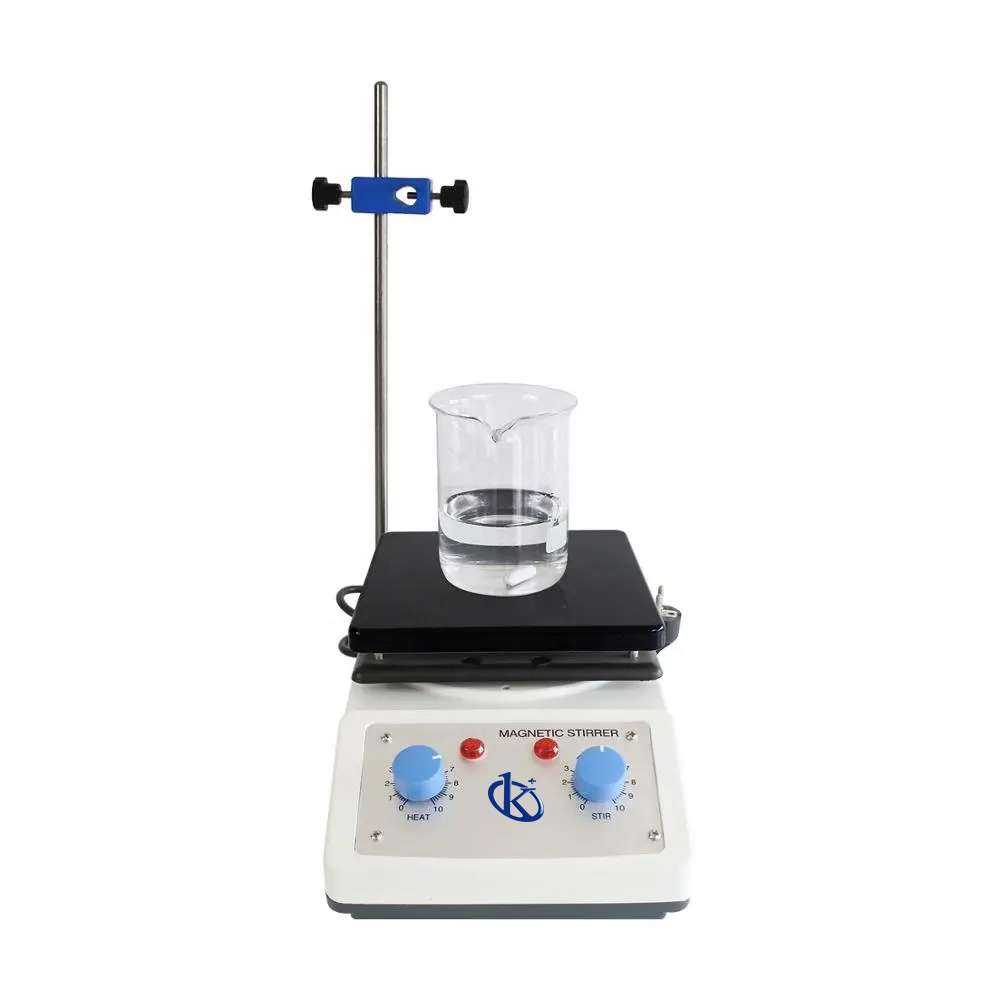

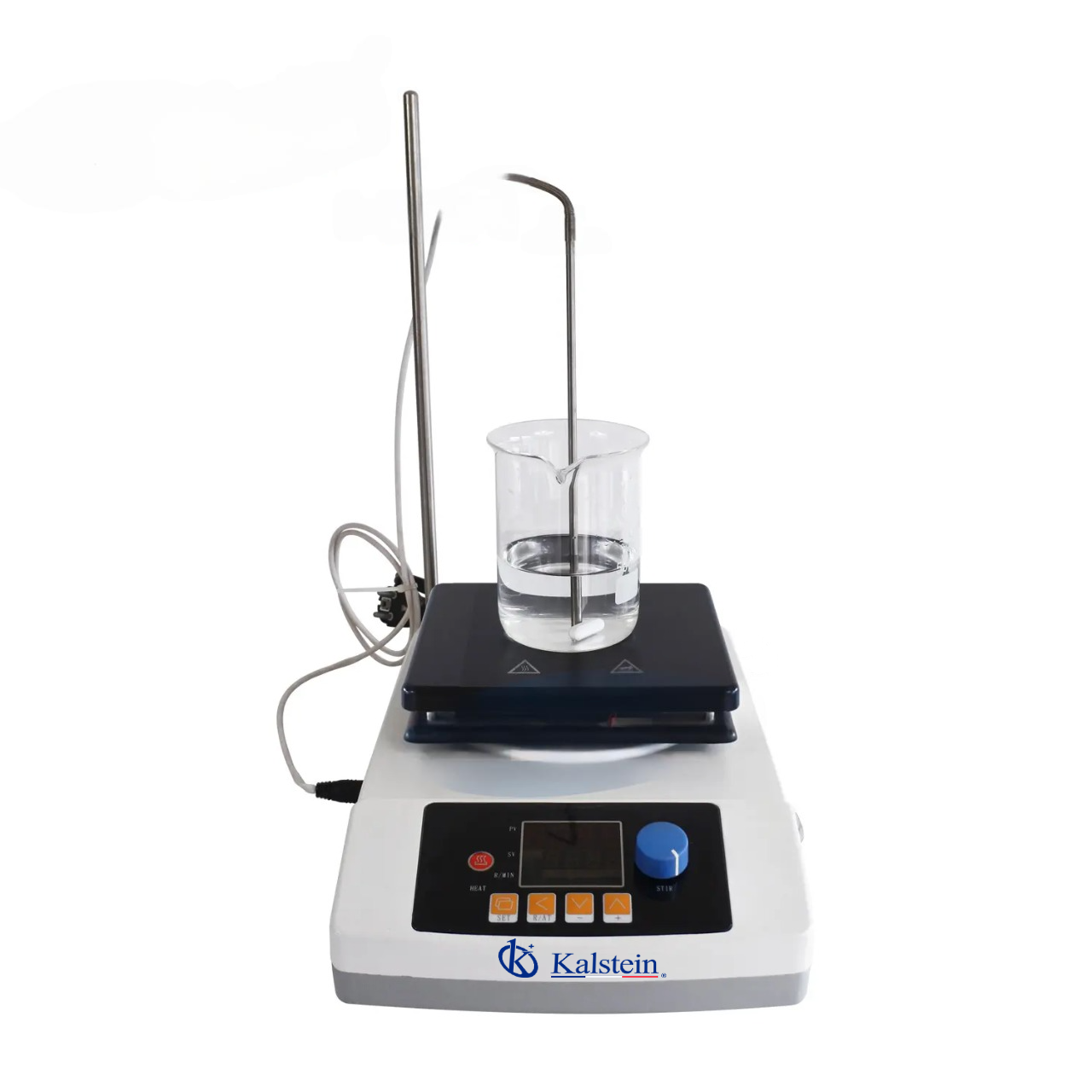

Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers...
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized...
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized...
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized...
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out (other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned and sterilized than other stirring devices. They do not require lubricants which could contaminate the reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means for heating the liquid.

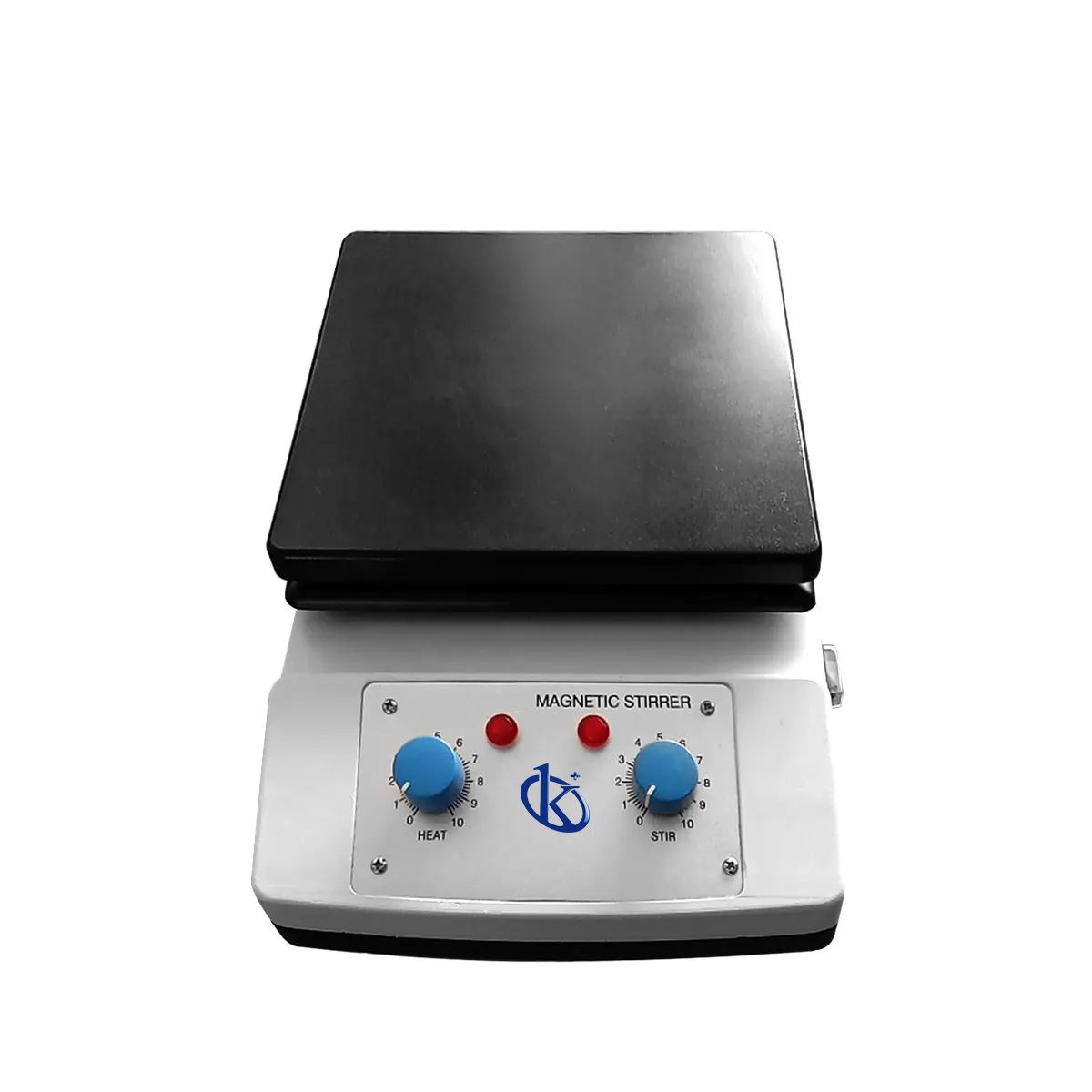

| Model | YR02936 |
| Top Plate Dimension (mm) | 280 × 280 |
| Heating Temperature Range ( ) | Ambient to 400 degree |
| Temperature Control | PID control LED display when the machine works. |
| Temperature Range | Ambient to 400 |
| Top Material | black ceramic or white ceramic |
| Temperature Display | |
| Permissible Ambient Temperature | Ambient temperature at 40 degrees |
| Voltage | 110 V – 240 V |
| Power(w) | 450 W |
| Motor Power | 16W, DC20V |
| Temperature Accuracy | ±5 degree |
| Stirring Flask Capacity (ml) | 50 – 15 000 |
| Overall Dimensions (mm) ( L × W × H ) |
500 x 420 x 270 |
| Packing Dimension (mm) | 550 x 450 x 290 |
| Shipping Weight (kg) | 9.5 Kg |
| Shell material | Superfine Metal |
The heating plate is a laboratory instrument desktop and portable comprised electric heating elements and corrosion resistant to chemical...
In the laboratories, various procedures are carried out to achieve the objective of their studies, such as distillation, boiling and extraction...

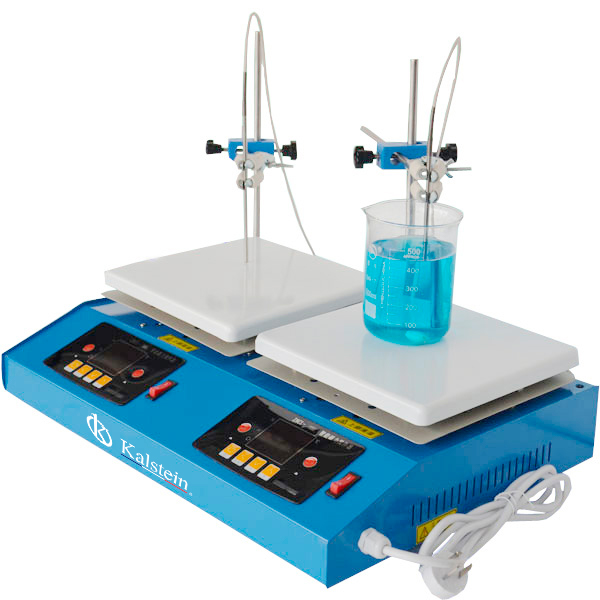

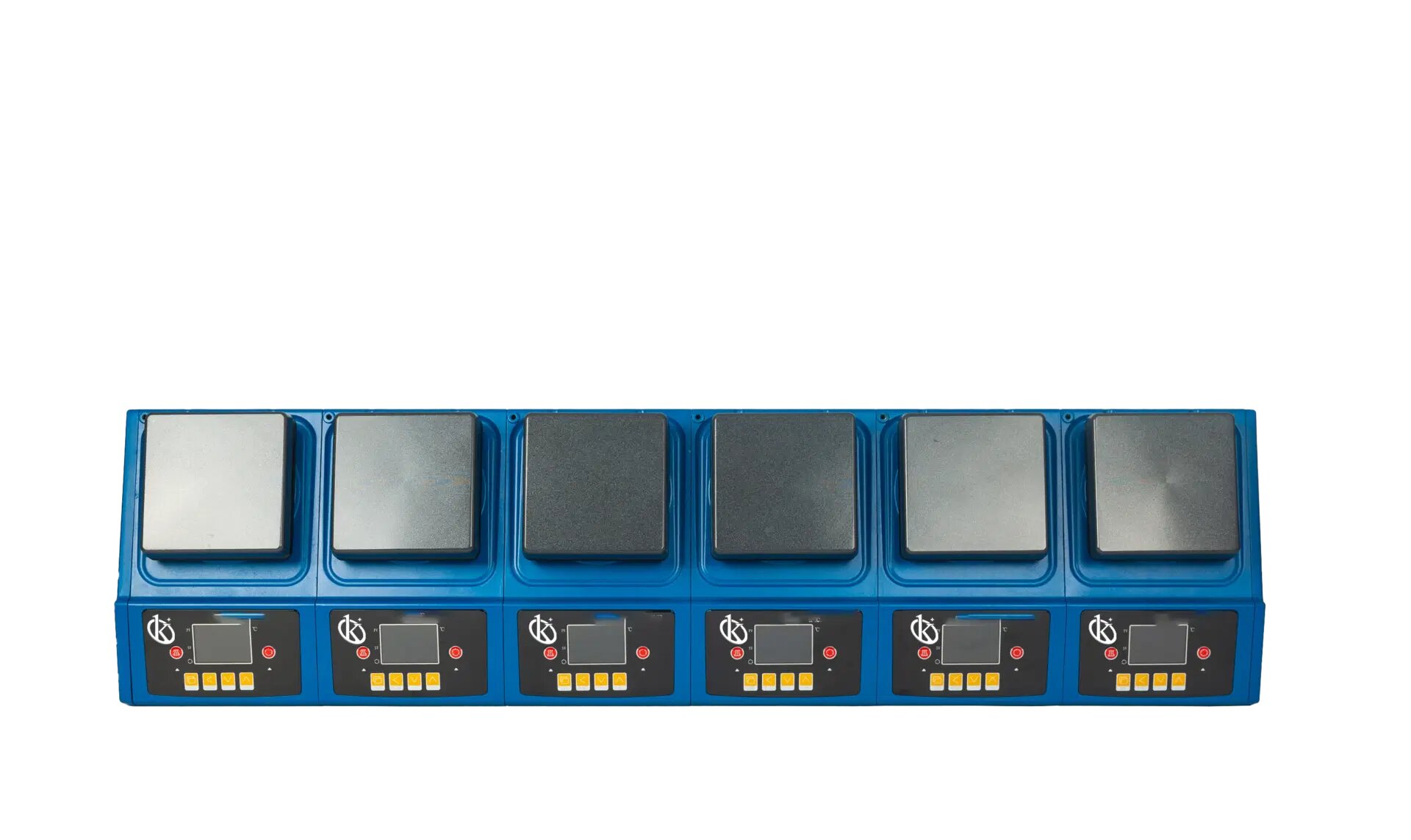

The multi-station heating plate is a benchtop and portable laboratory instrument that adapts to multiple ...
The heating and stirring plate is the ideal equipment for laboratory practices, able to offer precise temperature...
It is a laboratory equipment that adapts to multiple experiments that require temperature and agitation frequently ...
Heating plates or plates are small laboratory instruments that have a structure of excellent resistance to ...
A heating plate in the laboratory is a very useful piece of equipment. Its main use is to keep containers containing...
These are laboratory instruments are small appliances that have one or more elements of electric heating, in addition they have a structure resistant to chemical spills, as well as corrosion; its main purpose is to heat containers of different materials with liquid...
In this section you can find, our heating plates in operation, packaged, receiving service, etc.
The Hot Plate is a portable benchtop laboratory instrument that has electrical heating elements resistant to corrosion and chemical and mechanical attacks. Useful for heating containers with liquids, glassware or the content inside them in a uniform and controlled way.
This instrument can be found in chemistry, biology and biochemistry laboratories, among its uses are:
To know the price of the heating plates we invite you to send us an email with your request through the contact form.
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
