Rotary Evaporator
There are many reasons to prefer the use of a rotary evaporator to concentrate samples in the laboratory. First, it is a very controlled method to evaporate the solvent, obtaining a correct and precise concentration of the sample. In addition, the fact that the sample is not damaged during the process is very important, as it prevents the loss of precious material.
Another advantage of the rotary evaporator is that it allows you to work with small samples, which is very useful if you need to concentrate a very small sample. Another aspect to keep in mind is that the concentration time is usually very short, allowing to save time and effort.
In short, the rotary evaporator is a very efficient and useful instrument for concentrating samples in the laboratory, since it allows precise concentration control, prevents damage to the sample and is very fast.
Types of Rotavapors a Laboratory may need
Rotary Evaporator YR02306
It is suitable for experiment of evaporation, distillation or separation of chemicals. It usually works with ...
Rotary Evaporator YR02307 // YR02310
Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating...

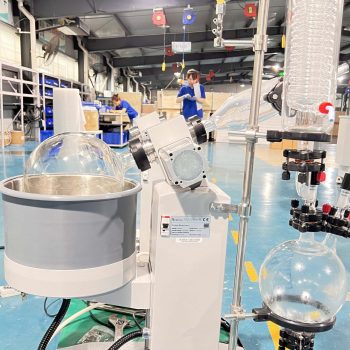

Our Best Selling Rotavapor
Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, and solvent evaporates more efficiently under vacuum condition. It can be used for pilot-scale production in biology engineering, pharmaceutical industry, chemical industry and food processing. It usually works with water circulating vacuum pump, diaphragm vacuum pump, recirculating chiller, constant-temperature circulator, low temperature circulating pump, etc.
- Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
- Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
- Teflon discharge valve is corrosion resistant and contamination free.
- Water bath jacket protecting operator from scalding by hot liquid.
| Model | YR02307 | YR02308 | YR02309 | YR02310 | |||||
| Evaporating flask | 5L, flange opening: Φ50mm | 10L, flange opening: Φ125mm | 20L, flange opening: Φ125mm | 50L, flange opening: Φ125mm | |||||
| Receiving flask(L) | 3 | 5 | 10 | 20 | |||||
| Speed-regulation | DC stepless speed-regulation | ||||||||
| Power supply | 220V-240V, 50/60Hz | 3~, 380V, 50Hz | |||||||
| Overall power(kW) | 2.3 | 3.8 | 6.3 | 6.3 | |||||
| Rotation speed (rpm) | 20~140 | 20~130 | 20~130 | 20~110 | |||||
| Power of motor(w) | 250 | 250 | 250 | 250 | |||||
| Condenser | Vertical type double coil pipe | Vertical type, Main + auxiliary triple-circulating cold traps | |||||||
| Bath material | Stainless steel 304 | ||||||||
| Temperature range | RT~99℃ | ||||||||
| Temperature display | Digital display | ||||||||
| Sealing | 20mbar/h | ||||||||
|
Evaporating Speed (L/h)
|
Water | 2.0 | 3.2 | 5.0 | 9.0 | ||||
| Ethanol | 5.4 | 8.6 | 14.3 | 24.5 | |||||
| Lifting function | Motorized Lift | Motorized lift + Manual lift | |||||||
| Elevating stroke(mm) | 0~150 | 0~160 | 0~190 | 0~180 | |||||
| Dimensions(mm) | 835W×400D×1090H | 990W×550D×1655H | 1195W×635D×2070H | 1345W×770D×2140H | |||||
| Net Weight(kg) | 60 | 85 | 115 | 200 | |||||
Analysis of the best Rotavapores for your Laboratory
Why is the Rotary Evaporator the most used distillation equipment?
The rotary evaporator is a very useful tool in laboratories, since it allows the elimination of volatile solutions...
Advantages and Disadvantages of using a Rotary Evaporator?
A Rotary evaporator is a laboratory equipment, applied in the chemical sector, capable of separating...
The Rotary Evaporator in the Biology Laboratory
A rotary evaporator is laboratory equipment designed to facilitate the evaporation of liquids at high temperatures. It is an essential tool in the biology laboratory...
Rotary evaporators in the laboratory: keys for efficient use
Rotary evaporators are a key tool in the laboratory, as they allow the evaporation of liquids at low temperatures...
Catalog of models of Rotavapores on offer
Guides to become an expert in Rotavapores
How the Rotary Evaporator can be used to accelerate chemical reactions
The rotary evaporator is a laboratory equipment used to carry out the distillation process by which the components...
How can the Rotary Evaporator be used to purify organic compounds?
At Kalstein we have the ideal rotary evaporator, commonly used in the laboratory to distil or purify liquids. Similarly...
Maintenance of Rotary Evaporators: how to extend the service life?
Rotary evaporators are an essential part of laboratory equipment, and their proper maintenance is crucial to ensure...
Why is it more efficient to use a Rotary Evaporator to concentrate laboratory samples?
A rotary evaporator is a very useful and efficient instrument for concentrating samples in the laboratory, since it allows the solvent to be evaporated in a controlled way and leaves the sample in the container without damaging it. This is very important...
Videos of Rotavapor in operation
In this section you can find, our Rotavapores in operation, packaged, receiving service, etc..
Rotavapor Assembly
Potential risks include implosions resulting from the use of faulty glass items such as star-shaped cracks. Explosions can also occur by concentrating unstable impurities during evaporation. Accordingly, it is recommended that users of equipment take precautions to avoid contact with rotating parts, especially entanglement of loose clothing, hair or necklaces. In these circumstances, the winding action of the rotating parts can attract users to the apparatus, which causes the breakdown of glassware, burns and chemical exposure. In addition, additional caution should be applied to operations with reactive materials in air, especially when under vacuum. A leak can draw air into the device and a violent reaction can occur.
Frequently Asked Questions about Rotavapors
How to know the prices of Rotavapores?
To know the price of Rotavapores we invite you to send us an email with your request through the contact form.
What are the delivery times of the Rotavapores?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Rotavapores?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
