Chamber
The climate chamber is an essential testing tool for product development and performance validation. It is used to simulate environmental effects during product design, manufacture, storage and use. This allows tests for accelerated aging, stability and reliability.
Increasing attention is now being paid to the environmental impact of electronic products that are subject to a wide range of environmental factors throughout their life cycle, which can significantly affect their performance and reliability. It is therefore essential to consider environmental impacts in the design and validation of electronic products. The climate chamber can be used to assess the impact of environmental factors on electronic components.
Types of Weather Chambers that a Laboratory may need
Humidity Chamber
Using a climate camera offers many advantages, including:
- Improving component performance: By testing components under different conditions, it is possible to identify which materials and designs are best suited for specific applications. This information can be used to improve the efficiency of production processes.
- Reducing emissions: By improving the efficiency of production processes, it is possible to reduce emissions associated with the industrial sector.
- Cost savings: The cost of using a climate chamber is generally much lower than the cost of traditional component testing. This is because the climate chamber can test several components at the same time.
Artificial Climate Chamber
A humidity and temperature chamber has in its structure components that when combined allow to create stable conditions of temperature, humidity and, occasionally, also of light. These cameras have a wide range of variants, ranging from small cameras on laboratory tables to large cameras on wheels, to walkable cameras that can be easily moved from one location to another.
Many of these cameras have LCD screens to set the time and PC touch (digital method) with software that allows programming and control functions, display of recorded data, alarms, and an LED indicator indicating the beginning and end of a cycle. They can have double door design and magnetic sealing in order to avoid any kind of leakage. They also have a compressor that can handle temperatures ranging from 30 °C to 80 °C, these temperatures are adjustable to the needs of the user and the operation being performed.
At Kalstein you can find the ideal Weather Cameras for your Laboratory
Climate Simulation Chamber YR05347
Simulate the day and night light changes and climate conditions, to meet the multi segment ladder programming...
Strong Illumination Stability Test Chamber YR05353
Strong illumination stability test chamber for pharmaceutical companies to evaluation of drug failure, accelerated ...
Drug Stability Test Chamber YR05350
Mainly used in the pharmaceutical industry, medicine, biotechnology, food industry and other industries...
Humidity Chamber YR05802
Without fluorine refrigerant system, reasonable air circulation system to ensure temperature uniformity; intelligent control to ensure constant and precision of ...
Our Top Selling Climatic Cameras
- Integrated, dot-matrix LCD display, Chinese and English subtitles, design for the highest operational comfort.
- Display parameters: temperature, humidity, cycle, run time, run/stop.
- Adaptive PID controller precisely controls the temperature and humidity, prevent temperature soaring, keep working room temperature stable and uniformity.
- User password protection, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.
- Programmable multi-sections control, to meet customer needs, temperature and humidity control up to 30 sets. Time setting: 0-99h,0-9999m, programs can be executed automatically cycles.
- Set operations with beep tips.
- Remote control of computer software, professional operation ALLSENSTM software (optional)
|
Product Model
|
ALLIGENT-KG
Comprehensive drug stability test chamber |
||
| YR05353 |
YR05353-1
|
YR05353-2
|
|
|
Convection Mode
|
Forced Convection
|
||
|
Control System
|
Thirty stages Microprocessor PID controller
|
||
|
Temp. Range
|
10~65℃(with lighting)/0~60℃(without lighting)
|
||
|
Temp. Accuracy
|
0.1℃
|
||
|
Temp. Fluctuation
（10-40℃） |
±0.5℃
|
||
|
Temp. Uniformity（10-40℃）
|
±1
|
±1
|
±1.5
|
|
Illumination Range
|
0~6000LX（five stages adjustable）
|
||
|
Working environment
|
Ambient temperature：10~30℃, Humidity <70%
|
||
|
Insulation materials
|
Imported environmental protection type material
|
||
|
External Dimensions (H×W×D)
|
1410×650×680
|
1730×650×740
|
1700×745×930
|
|
Internal Dimensions (H×W×D)
|
760×510×390
|
1100×510×450
|
1050×600×640
|
|
Interior Volume (L)
|
150
|
250
|
400
|
|
Interior steel materials
|
Interior steel materials
|
||
|
Power Consumption (W)
|
1080
|
1100
|
1350
|
|
Power supply
|
AC220V/50Hz
|
||
|
Net Weight(KG)
|
107
|
135
|
158
|
|
Shipping Weight(KG)
|
132
|
162
|
186
|
|
Shipping Dimensions (H×W×D)
|
1610×750×830
|
1930×750×890
|
1900×840×1080
|
Analysis of the best Weather Cameras for your Laboratory
What is a Stability Test Chamber?
The stability test chambers are used in the pharmaceutical, food and cosmetics sector, able to store...
What are Chambers of Culture?
The chambers of cultures, are peculiar units, capable for the growth of vegetables, plants, seeds, small...

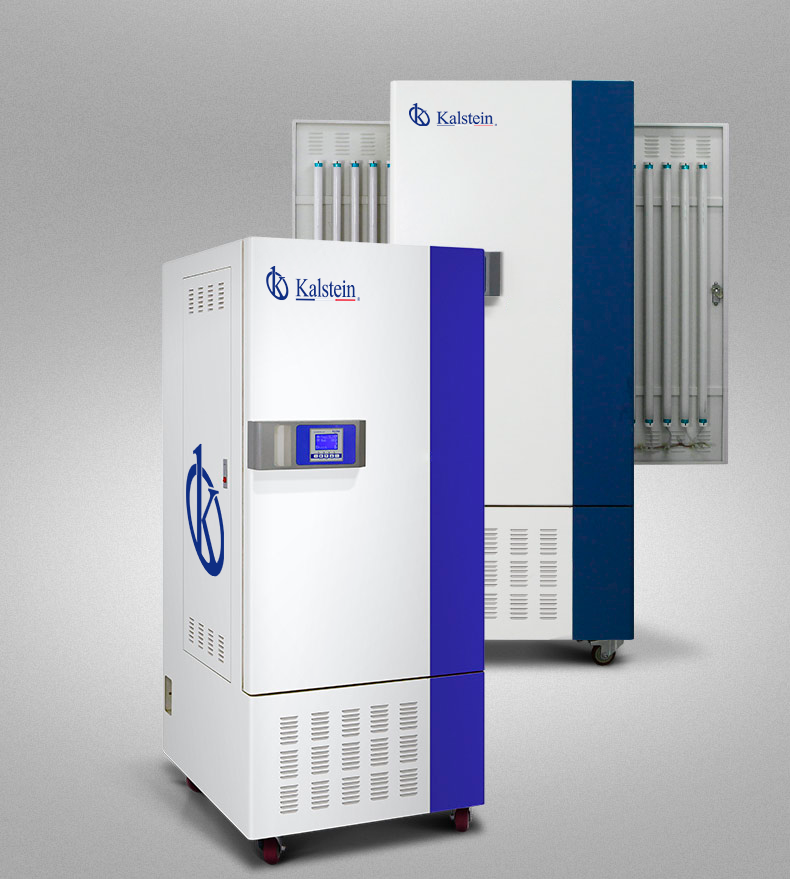

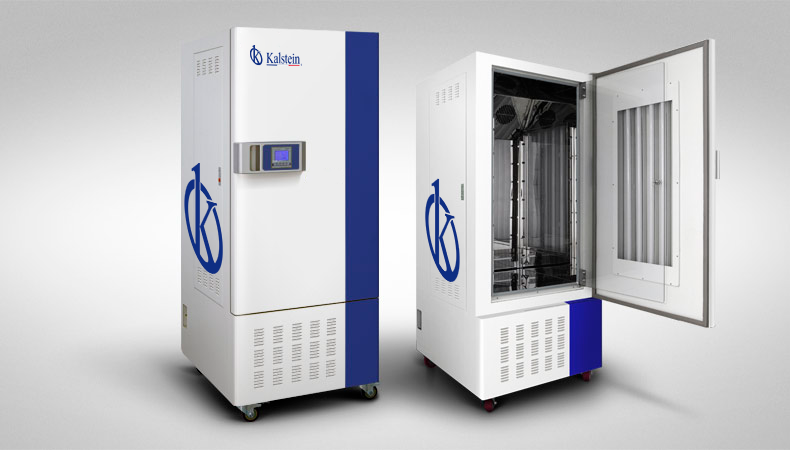

Climate chamber for cosmetic industry
The climate chamber, also known as test chamber, moisture chamber or environmental chamber, is used...

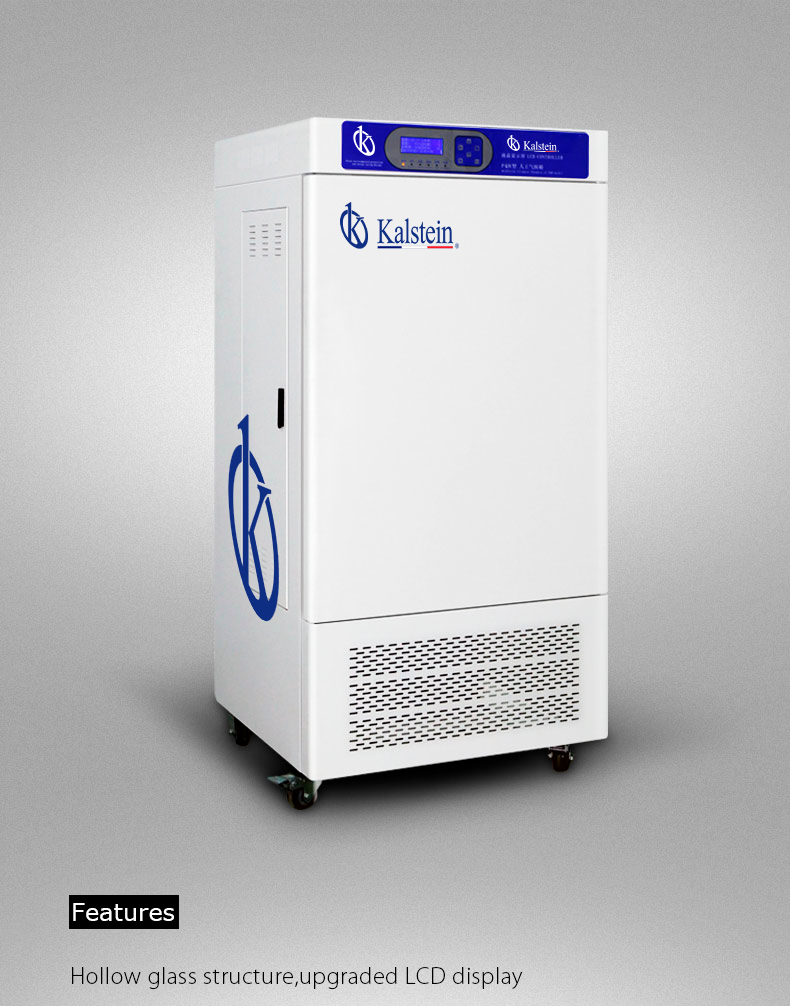

Why are climate cameras important?
Climatic chambers are equipment or devices used in laboratories for the purpose of reproducing controlled...
Catalog of Climatic Camera models on offer
-
Environmental Chamber YR05340 // YR05346-1
Select options -
Illumination (Ray radiation) Incubator YR05331 // YR05333
Select options -
Comprehensive Drug Stability Test Chamber YR05354 // YR05356
Select options -
Strong Illumination Stability Test Chamber YR05353 // YR05353-2
Select options -
Drug Stability Test Chamber YR05350 // YR05352
Select options -
Humidity Chamber YR05802 // YR05807
Select options -
Climate Simulation Chamber YR05347 // YR05349
Select options -
Artificial Climate Incubator YR05328 // YR05330
Select options
Guides to becoming an expert in Weather Cameras
What is a pharmaceutical stability chamber?
A pharmaceutical stability chamber is a laboratory instrument that allows to carry out the so-called stability tests of drugs or...
Plant growth chambers: What are they used for?
Plant growth chambers are specialized chambers that are used to monitor climatic conditions during the study of plants...
Using the Climate Chamber for Electrical Components
A climate chamber is a tool that can be used to test the performance of electrical components under various environmental...
What is a humidity and temperature controlled chamber?
It is a equipment whose main function is to reproduce certain conditions necessary for analysis carried out in industries or research laboratories, that is to say, these instruments meet defined conditions for stability control of different materials simulating in turn different values of temperature and humidity...
Climatic Cameras FAQs from our customers
How do you know the prices of the Weather Chambers?
To know the price of the Climatic Cameras we invite you to send us an email with your request through the contact form.
What are the delivery times of the Climatic Chambers?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of the Climatic Cameras ?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
