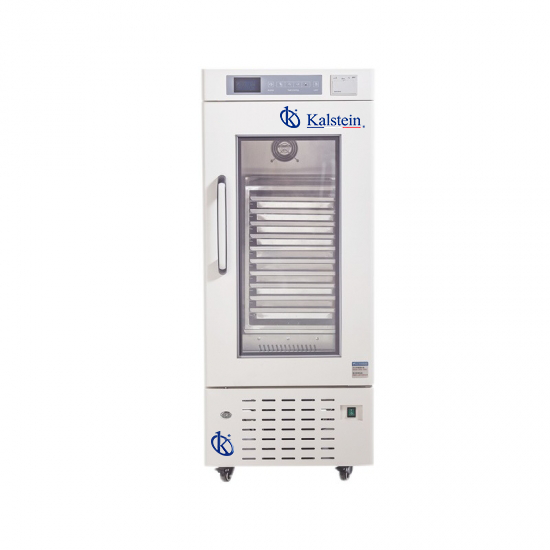

22 °C Blood Platelet Incubator YR06028-YR06029

Manufacturer: Kalstein

Product Description

Kalstein blood platelet incubator is integrated with agitator. The agitation system has been designed for continuous quiet operation. it widely used on store blood platelet (20℃ ~24℃), biological reagent (2℃~40℃) and chemical product (2℃~40℃). The applications could be found in hospital, blood bank, research institute, laboratory and universities. The platelet incubator resembles a simple storage cabinet with multiple levels of horizontal flatbed storing units, with a heating element and refrigerating element incorporated in the storage space.

  • Constant Temperature: 2℃ of temperature fluctuations
  • Themal Printer: Real-time automatic printing of temp, can be optional USB port
  • Universal Castor Wheels: Castors with brake
  • High-Quality Steel: 304 Stainless steel chamber and 304 stainless steel oscillator
  • Micoprocessor control system: Continuously alarm for 72h after power failure. Micoprocessor electronic temperature controller, LED temperature display, the display accuracy is 0.1℃.
  • 5 Types Of Alarms: High and low temperature alarm, power failure alarm, Sensor malfunction alarm, Door Ajar, Power failure backup system alarm.
Technical Specifications:
Model YR06028 YR06029
Shelf/drawer QTY Drawer / 5 Drawer / 10
Cooling method Forced air cooling
Defrost No frost
Refrigerant R134a
Power consumption(kWh/24h) 2.69 4.4
Noise (db) 49 50
Ambient temperature (°C) 10~32 °C
Temperature range (°C) 20~24 °C
Cooling system
Compressor brand/QTY EMBRACO/1
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Voltage/frequency (V/Hz) 220/50Hz
Power (W) 197W 280W
Current (A) 0.9A 1.27A
Inside material SUS
Outside material Colored Spray Steel
Insulation PU
Capacity (L/cu.ft) 5 10
Bloodbags(450ml)/Layers 10 /5 layers 20 /10 layers
NT./GT. (kg) 65/87 85/108.5
Exterior size(W*D*H)(mm) 520*640*1030 520*640*1290
Interior size(W*D*H)(mm) 427*360*467 432*462*728
20GP/40GP/40HQ 24/48/96 32/68/68
Alarm System
High/low temperature Y
Power failure Y
Sensor malfunction Y
Low batery /
Door ajar Y
Power failure backup system(alarm) 72h
Caster Y
Outer door / Type 1 (Foamed glass door)
Test hole Optional
Light UV Light
Temperature recorder Optional
Other Certification ISO, CE

Additional Information

Weight N/A
Dimensions N/A

YR06028, YR06029
