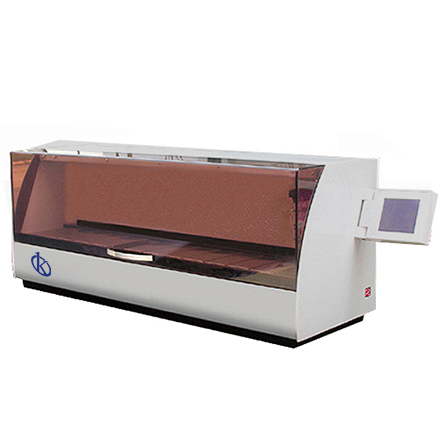

Automatic slide staining YR435-1

Manufacturer: Kalstein


The YR435-1 Automated Slide Stainer is an innovative solution designed to increase efficiency and precision in histology laboratories. This compact and silent device features a flexible and wear-resistant transmission system, utilizing high-quality imported materials to ensure stable and reliable operation. Its small footprint allows it to be placed near the sectioning area, optimizing workflow. Additionally, its intuitive touch screen interface makes operation easy to learn and use.

Market Price

The price of the YR435-1 Automated Slide Stainer generally varies between $5,000 and $7,000 USD. This range can fluctuate depending on the region, shipping costs, and additional installation fees. To obtain an accurate and personalized quote, we invite you to request a budget through our Kalstein Plus platform. Take advantage of this opportunity to enhance your laboratory’s efficiency with a high-quality device at a competitive price.

Frequently Asked Questions

1. How many slides can be stained simultaneously with the YR435-1?

The device allows staining up to 24 slides simultaneously with a quick staining process.

2. How many staining protocols can be stored in the system?

You can program and store up to 25 sets of staining protocols, each with 30 editable steps.

3. Is the YR435-1 suitable for H&E staining?

Yes, this device is an ideal option for H&E staining due to its precision and efficiency.

Advantages and Disadvantages


The YR435-1 offers several significant advantages. Firstly, its flexible and low-noise transmission system guarantees reliable performance. Additionally, the intuitive touch screen interface and intelligent control system facilitate operation. The robust APS-coated housing is easy to clean and highly resistant to corrosion. The device also features an intelligent automatic input/output/drain system, ensuring sufficient washing performance at each step and improving water efficiency.


However, some disadvantages include the initial cost, which can be a considerable investment for smaller laboratories. Furthermore, regular maintenance is necessary to ensure the device operates at its maximum capacity and prolong its lifespan.

Field Use

In histology laboratories, the YR435-1 Automated Slide Stainer is essential for performing precise and rapid stains. It is especially useful in medical diagnostic and scientific research processes, where precision and efficiency are crucial. Its ability to adjust treatment duration in the tank and agitation frequency makes it ideal for various staining applications.


To maximize the performance of the YR435-1, it is essential to follow the regular maintenance guidelines for the transmission system and ensure the staining protocols are correctly configured. Take advantage of its advanced features, such as precise temperature control and error alerts, to optimize your staining processes and ensure consistent and reliable results.

Don’t miss the opportunity to enhance your laboratory’s efficiency with the YR435-1 Automated Slide Stainer. Request a quote today through our Kalstein Plus platform and discover how this advanced device can transform your histology procedures. Click here to generate your automatic quote and take your laboratory to the next level!

Technical Specifications

Model YR435-1
Capacity of staining 400pcs slides in one hour
Capacity of Staining Rack 30pcs slides
Loading Capacity up to 10 different Rack for different programme(Continuous Loading)
Station capacity 36
Reagent station capacity 26
Washing tank capacity 5
Capacity of Reagent Station 500ml
Discharge capacity 2
Voltage 220VAC ± 10%, 50 / 60HZ
Power Draw 200W
Overall dimension 1050mm × 615mm × 590mm (WXDXH)

Additional information

Weight 118 kg
Dimensions 118 × 78 × 91 cm
