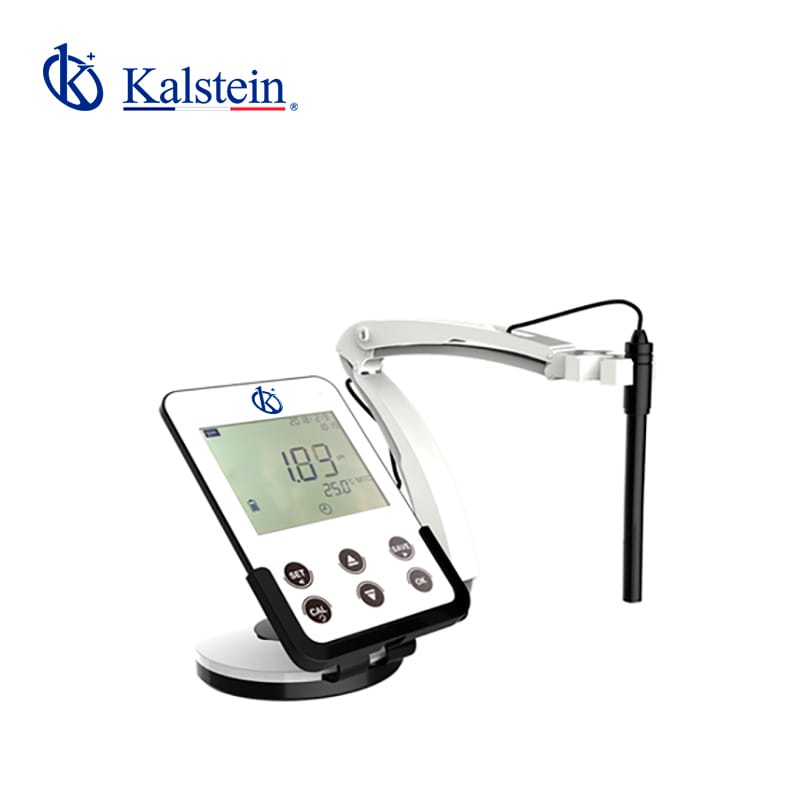

Benchtop pH / Ion Meter YR01826

Manufacturer: Kalstein

Certificacion europea

Product Description

Precision benchtop pH/ion meter, 1 to 5 points calibration, selectable concentration units. The meter is suitable for measuring the pH, ORP and ion concentration.

pH Mode

• Precision benchtop pH/ion meter is equipped with a large backlit LCD display.

• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.

• Automatic electrode diagnosis shows the pH slope and offset.

ORP Mode

• 1 point offset calibration allows adjusting the displayed value to a known standard.

• Relative and absolute millivolt modes ensure the reliable ORP measurements.

Ion Concentration Mode

• 2 to 5 points calibration, including the 8 concentration points can be selected.

• Direct ion concentration readout simplifies the measurement process.

• Automatic electrode diagnosis shows the calibration points and slopes.

• Selectable concentration units (ppm, mg/L, mol/L) and ionic valency.

Other Features

• Automatic temperature compensation ensures accurate readings over the entire range.

• Auto-Read function senses and locks the measurement endpoint.

• Calibration due alarm prompts user to calibrate the meter regularly.

• Setup menu allows setting the number of calibration points, stability criteria, temperature

unit, date and time, auto-power off, etc.

• Reset function automatically resumes all settings back to the factory defaults.

• Expanded memory stores or recalls up to 500 data sets.

• USB communication interface for data transfer and timed interval readings.

Model YR01826
pH
Range -2.000 to 20.000pH
Resolution 0.001, 0.01, 0.1pH, selectable
Accuracy ±0.002pH
Calibration Points 1 to 5 points
pH Buffer Options USA, NIST, DIN, 2 custom buffers
ORP
Range ±1999.9mV
Resolution 0.1, 1mV, selectable
Accuracy ±0.2mV
Calibration Points 1 point
Measurement Modes Relative or absolute mV
Ion Concentration
Range 0.001 to 19999 (deponding on the range of ISE)
Resolution 0.001, 0.01, 0.1, 1
Accuracy ±0.5% F.S. (monovalent), ±1% F.S. (divalent)
Calibration Points 2 to 5 points
Calibration Solutions 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
Measurement Units ppm, mg/L, mol/L, mmol/L
Temperature
Range 0 to 105°C/32 to 221°F
Resolution 0.1°C/0.1°F
Accuracy ±0.5°C/±0.9°F
Offset Calibration 1 point
Calibration Range Reading ±10°C
General Specifications
Temperature Compensation 0 to 100°C/32 to 212°F, manual or automatic
Stability Criteria Low or high
Calibration Due Alarm 1 to 31 days or off
Memory Stores up to 500 data sets
Output USB communication interface
Connector BNC, 3.5mm jack socket
Display Custom LCD (125×100mm)
Power DC5V, using AC adapter, 220V/50Hz
Dimensions 210(L)×188(W)×60(H)mm
Weight 1.5kg

Additional Information

Weight 1,5 kg
Dimensions 32 × 27 × 20 cm
Modelo

YR01826, YR01826-1
