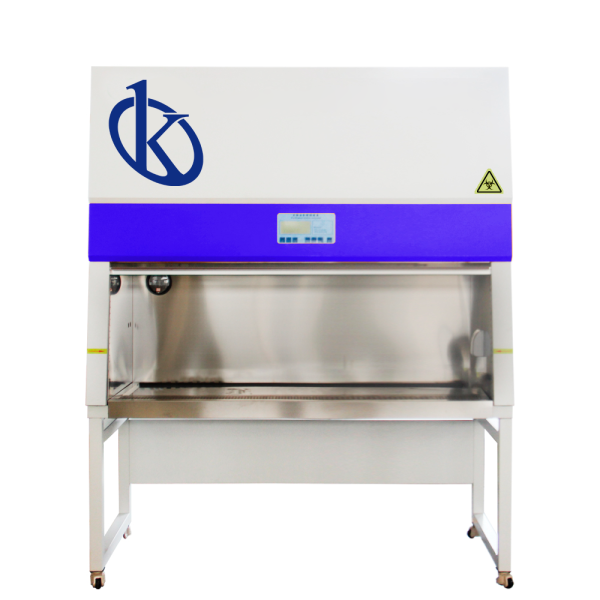

Biological Safety Cabinet YR05708 // YR05710



YR053708 // YR05710 biological safety cabinet Class II biological safety cabinet/biological safety cabinet is necessary in animalcule lab, especially in the condition needing protection measure, such as medicine, pharmacy, scientific research and so on.

Product Features
  • Air curtain isolation design prevents internal and external cross-contamination, 100% air flow is discharged outside, negative pressure vertical laminar flow, no need to install pipes
  • The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts.
  • The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
  • A special filter is installed at the exhaust air to control emission pollution
  • The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent corrosion by corrosive agents and disinfectants
  • It adopts LED LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed
  • With DOP detection port, built-in differential pressure gauge.
  • 10° tilt angle, in line with the human body design concept
Technical Specifications
Model   YR05708   YR05709   YR05710
Cleanliness Class 100@≥0.5μm (US Federal 209E)
Number of colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
average wind speed Inside the door 0.38±0.025m/s
middle 0.26±0.025m/s
Inside 0.27±0.025m/s
Front suction wind speed 0.55m±0.025m/s
noise ≤65dB(A)
Voltage AC single-phase 220V/50Hz
Maximum power consumption 500W 600W 700W
Weight 210KG 250KG 270KG
Working area W1×D1×H1 1040×650×620 1340×650×620 1640×650×620
Overall dimension W×D×H 1200×800×2270 1500×800×2270 1800×800×2270
High efficiency filter specification and quantity 980×490×50×1 1280×490×50×1 1580×490×50×1
520×380×70×1 820×380×70×1 1120×380×70×1
Specification and quantity of fluorescent lamp/ultraviolet lamp 20W×2/20W×1 30W×2/30W×1 30W×2/30W×1

Additional information

Weight N/A
Dimensions N/A

YR05708, YR05709, YR05710
