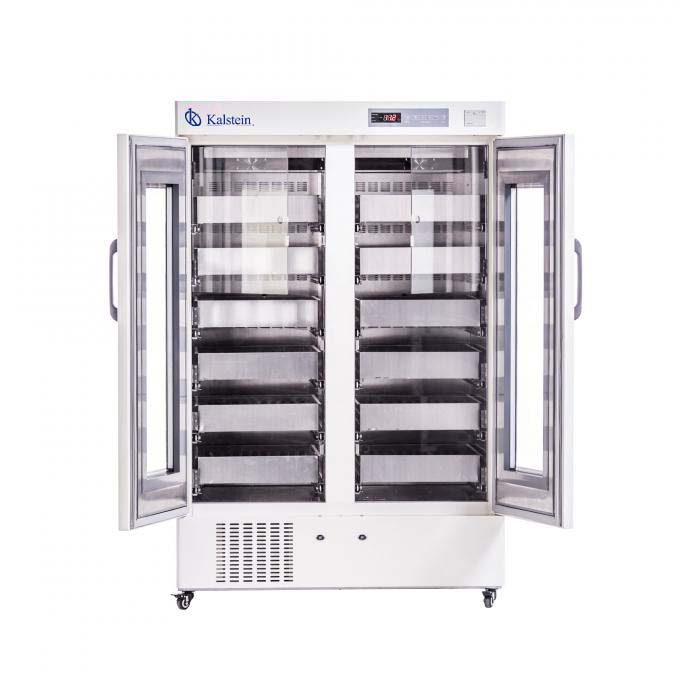

Blood Bank Freezer With 12 Pcs 304 Stainless Steel Drawers YR05292

Manufacturer: Kalstein


1008L blood bank refrigerator with 12 pcs 304 stainless steel drawers , temperature 4Ā±1Ā°C.

PROMED blood bank refrigerator are specially designed to store blood bags and blood-derived products.

For 450ml blood bags storage: 576units

  • Accurate microprocessor controller to ensure consistent cabinet temperature 4Ā±1Ā°C.

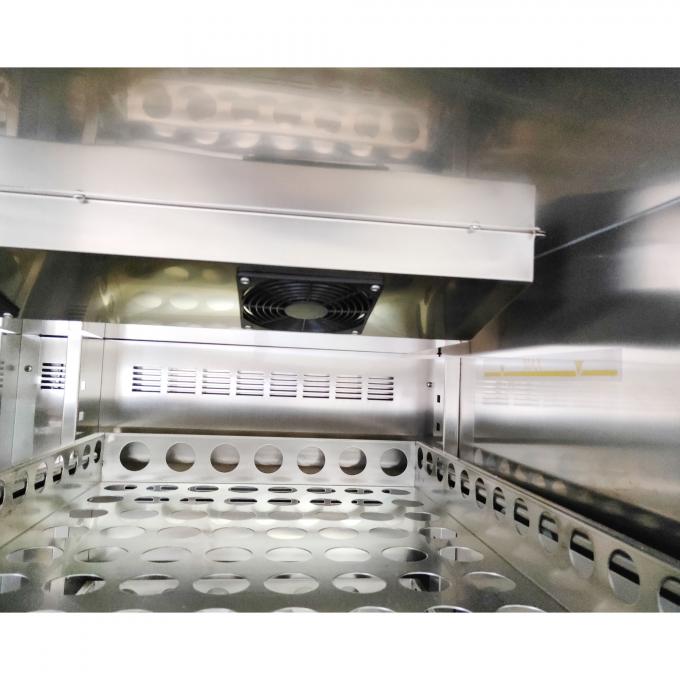

  • Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity.
  • Three layer toughened glass door with heater to avoid condensation.
  • 304 stainless steel inner chamber for friendly using and easy cleaning.
  • Wide available voltage range: 187V~242V
  • Safety door lock and controller setting password to prevent unauthorized access.
  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.
  • Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
  • Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar,backup battery malfunction
  • Power failure protection: turn on delay of the cooling system after power failure.
  • Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.
  • Temperature printer: print current inside temperature automatically per 15 minutes.
Humanized design
  • 4 casters with stopper for easy moving and fixation.
  • 12 stainless steel drawers for easy using.
  • Special designed service-free drainage system ensure no water in the cabinet.
  • Standard 25mm test hole for easy connecting to temperature monitoring systems.
  • Digital display with big screen, easy to check
Technical Specifications
Model YR05292
Temperature Range 4Ā°CĀ±1Ā°C
Ambient Temperature 10~32Ā°C
Controller Microprocessor
Display Digital Display
Refrigeration System
Compressor 1
Refrigerant R134a
Cooling Type Forced-air cooling
Defrost Type Frost free
High/Low Temperature Y
Sensor Error Y
Power Failure Y
Door ajar Y
Caster 4
Lamp LED
Drawer 12
Test hole 1/25mm
Temperature printer 1
Chart recorder Optional
Electrical Data
Power Supply(V/Hz) 220/50~60; 115/60
Rated Power(W) 513
Electrical Current(A) 2.74
Power Consumption 8.53 kWh/24h
Capacity 1008L
Interior Size(W*D*H) 1100*684*1325mm
Exterior Size(W*D*H) 1240*860*1895mm
Package Size(W*D*H) 1300*960*2130mm
N.t./G.t.(approx) 265/335kg
Loading Qty(20’/40’/40’H) 8/16/16

Additional information

Weight 335 kg
Dimensions 130 × 96 × 21,3 cm
