Color Light Box YR05520 // YR05523
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description

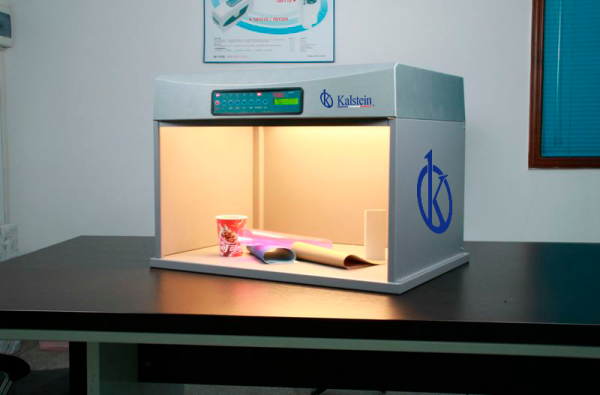

YR05520 // YR05523 color light box is our updated version, and it can accommodate up to 6 light sources. The consistency of the light sources in all Tilo Colour Assessment Cabinets gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.
YR053445 // YR053448 color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Product Features
- TILO Color light box render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
- Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
- Easy to operate by using individual switches for each light source.
- Elapsed time meter for tracking optimal lamp replacement.
- Automatically alternating among light sources.
- No warm-up time or flickering which insures quick and reliable color judgment.
- Economic power consumption and low heat generation for high light efficiency.
- The dimension can be made by customized.
Technical Specifications
| Model | YR05520 | YR05521 | YR05522 | YR05523 | |
| Light source | D65, TL84, UV, F, CWF, TL83 | D65, TL84, UV, F, CWF | D65, TL84, UV, F, CWF, TL83 | D65, TL84, UV, F, CWF | |
| Dimensions(W*D*H) | 695x552x502 mm | 695x552x502 mm | 695x552x502 mm | 695x552x502 mm | |
| Inner Size(W*D*H) | 665x490x360 mm | ||||
| Voltage | 220V/50Hz – 110V/60Hz | ||||
| Light sources Configuration | D65 | 2 PCS | 2 PCS | 2 PCS | 2 PCS |
| TL84 | 2 PCS | 2 PCS | 2 PCS | 2 PCS | |
| F | 4 PCS | 4 PCS | 4 PCS | 4 PCS | |
| UV | 1 PCS | 1 PCS | 1 PCS | 1 PCS | |
| CWF | 2 PCS | 2 PCS | 2 PCS | 2 PCS | |
| TL83 | 2 PCS | / | 2 PCS | / | |
| Weight | 19.5 kg | 19.5 kg | 28.9 kg | 28.9 kg | |
| Light Source Specifications | |||||
| Light Source | Color Light Box Application | Color temperature(k) | Power(W) | ||
| D65 | International standard Artificial Daylight | 6500 | 18 | ||
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 | ||
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 | ||
| F | “Sun-setting Light Yellow” incandescent light source
(imitation of sunset) |
2700 | 40 | ||
| UV | Viewing under ultraviolet light to detect and evaluate
optical brighteners or fluorescent pigments |
Wavelength:365nm | 20 | ||
| TL83 | Applied to stores in Europe | 3000 | 18 | ||
| Remarks: Optional tubes D50, D75, U30, U35, A | |||||
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | 69 × 83 × 32 cm |
| Model | YR05520, YR05521, YR05522, YR05523 |
