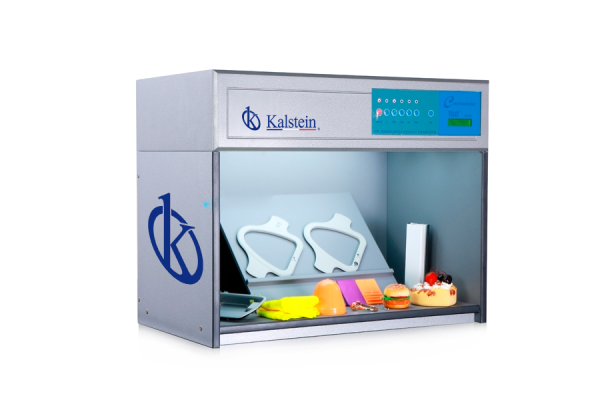

Color Light Box YR05524 // YR05529

Manufacturer: Kalstein


YR05524 // YR05526 color light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color matching box instrument products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
YR05524 // YR05526 color light box can accommodate up to 4 light sources. The consistency of the light sources in all Tilo Color Matching Cabinet gives excellent viewing conditions for reliable colour critical decisions under consistent lighting.
Color Light Box Features
  • TILO Color light box render color more accurately. With 4 different light sources(D65, TL84, F, UV), which can detect the metamerism.
  • Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
  • Easy to operate by using individual switches for each light source.
  • Elapsed time meter for tracking optimal lamp replacement.
  • Automatically alternating among light sources.
  • No warm-up time or flickering which insures quick and reliable color judgment.
  • Economic power consumption and low heat generation for high light efficiency.
  • The dimension can be made by customized.
Technical Specification
Model YR05524 YR05525 YR05526 YR05527 YR05528 YR05529
Light source D65, TL84, UV, F D65, TL84, UV, F, CWF D65, TL84, UV, F, CWF, TL83 D65, TL84, UV, F D65, TL84, UV, A, CWF, TL83 D65, TL84, UV, F, CWF, TL83
Dimensions(W*D*H) 710x405x570 mm 710x405x570 mm 710x530x570 mm 710x405x570 mm 710x530x570 mm 1310x600x800 mm
Inner Size(W*D*H) 680x385x

355 mm


355 mm

680x515x355 mm 680x385x

355 mm


355 mm


590 mm

Voltage 220V 220V 220V 220V 220V 220V
Weight 28 kg 30 kg 35 kg 28 kg 35 kg 60kg
Light sources Configuration:  D65 2 PCS 2 PCS 2 PCS 2 pcs 2 pcs 2 PCS
TL84 2 PCS 2 PCS 2 PCS 2 pcs 1 pcs 2 PCS
F 4 PCS 4 PCS 4 PCS 4 pcs 4 pcs 6 PCS
UV 1 PCS 1 PCS 1 PCS 1 pcs 1 pcs 1 PCS
CWF NO 2 PCS 2 PCS NO 1 pcs 2 PCS
Light sources Specification
Light Source Color Light Box Application Color temperature(k)
D65 International standard

Artificial Daylight

TL84 Applied to stores in Europe,

Japan and China

CWF (Cool White Fluorescent)

American Standard

F “Sun-setting Light Yellow”

incandescent light

source(imitation of sunset)

UV Viewing under ultraviolet light to

detect and evaluate optical

brighteners or fluorescent pigments

TL83 Applied to stores in



Additional information

Weight 32 kg
Dimensions 82 × 52 × 34 cm

YR05524, YR05525, YR05526, YR05527, YR05528, YR05529
