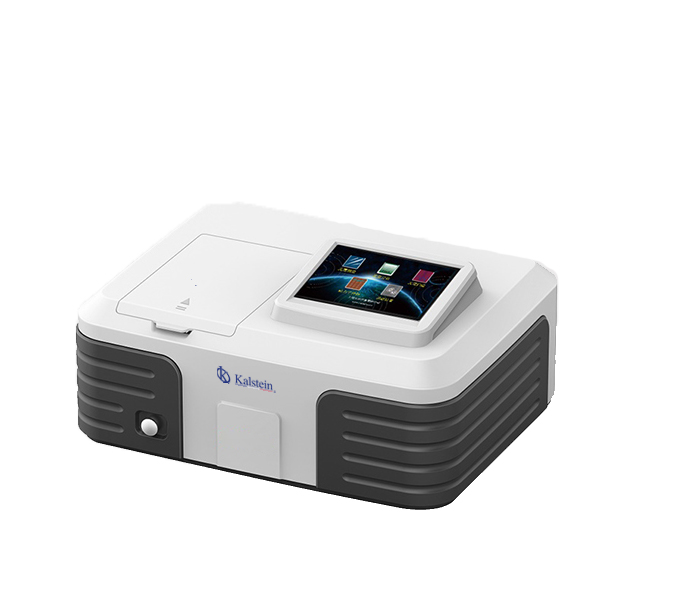

Unique beam UV / VIS Spectrophotometer- YR01858
Manufacturer: Kalstein
Product Description
- 800*480 large touch screen clearly shows test results and graphs.
- Powerful data analysis system with internal computer host could realize multi functions independently.
- Like establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/Protein test, multi-wavelength analysis and data printing.
- Optical system adopts suspension design. All optical parts are independently fixed on the 8mm thick aluminum deformation-free base to avoid the impact of bottom plate deformation and outside vibration on optical system.
- This premium design greatly improved the stability and reliability of the instrument.
- Convenient data storage and printing function.
- YR01858 can be directly connected to the printer for A4 format data and graph printing.
- Automatic power on self test and system positioning function could inspect and calibrate the deviation before every use.
| Model | YR01858 | ||
| Wavelength Range | 190-1100nm | ||
| The spectral bandwidth | 2nm | ||
| Wavelength Accuracy | ±0.5nm | ||
| Stray light | 0.05% T @ 220 nm, 360 nm | ||
| Wavelength Repeatability | ≤0.1nm | ||
| Photometric Accuracy | 士0.2%T(0-100%T)
±0.002Abs(0-0.5Abs) ±0.004Abs(0.5-1.0Abs） |
||
| Photometric Repeatability | ≤0.1%T(0-100%T)
0.001Abs(0-0.5Abs) 0.002Abs(0.5-1.0Abs) |
||
| Stability | 士0.001A/h@500nm | ||
| Photometric Range | 0-200%T, -0.3-3.0A, 0-9999C | ||
| Baseline flatness | 士0.001A | ||
| Noise | ±0.0005A | ||
| Display | 800*480 touch screen | ||
| Data Output Port | USB | ||
| Print Port | USB Port | ||
| Light source | Tungsten Lamp & Deuterium Lamp | ||
| Power Requirements | AC 220V/50Hz or AC 110v/60Hz | ||
| Detector | Silicon Photodiode | ||
| Dimension | 460*380*180mm | ||
| Weight | 20KG | ||
| Item | Description | Quantity | Unit |
| 1 | Spectrophotometer | 1 | set |
| 2 | 1cm Glass cuvette | 4 | pcs |
| 3 | Power cord | 1 | pcs |
| 4 | User’s Manual | 1 | pcs |
| 5 | 1 cm quartz cuvette | 2 | pcs |
| 6 | Dust Cover | 1 | pcs |
Additional Information
| Weight | 20 kg |
|---|---|
| Dimensions | 62 × 53 × 37 cm |
