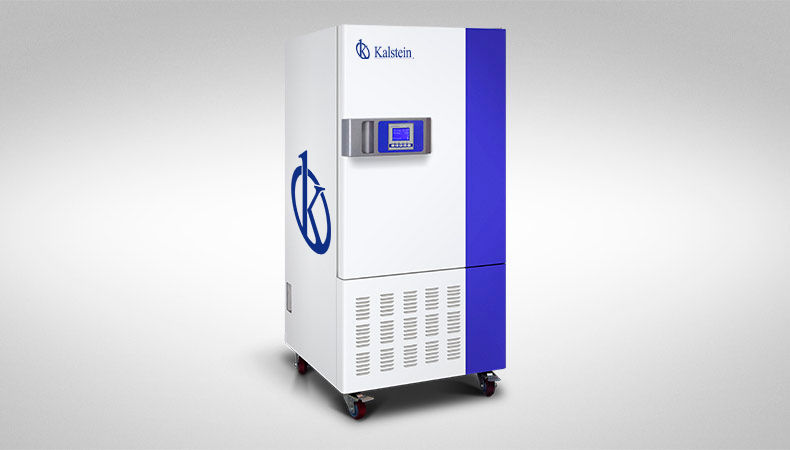

Drug Stability Test Chamber YR05350 // YR05352

ManufacturerKalstein

Description

Mainly used in the pharmaceutical industry, medicine, biotechnology, food industry and other industries, the electronics industry and all including life sciences related industries with painstaking research. Is the pharmaceutical industry stability field of test system, the main simulation environment and climate in the temperature, light test.

Product Introduction
  • World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
  • Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
  • Refrigeration effect manual control system: meet customer’s terrible work environment.
  • Imported DuPont SUVA R134 an environmental refrigerant. For cleaner world, for better work condition
  • To save energy, to reduce the cost.
ALLFLOW Perfect Air Current Cycling
  • ALLFLOW air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture.
  • ALLFLOW air current cycling: keep temperature continuous and stable, keep humidity continuous and stable, ensure perfect sample culture environment.
ALLSENS Programmable PID Control
  • Integrated, dot-matrix LCD display, Chinese and English subtitles, design for the highest operational comfort.
  • Display parameters: temperature, humidity, cycle, run time, run/stop.
  • Adaptive PID controller precisely controls the temperature and humidity, prevent temperature soaring, keep working room temperature stable and uniformity.
  • User password protection, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.
  • Programmable multi-sections control, to meet customer needs, temperature and humidity control up to 30 sets. Time setting: 0-99h,0-9999m, programs can be executed automatically cycles.
  • Set operations with beep tips.
  • Remote control of computer software, professional operation ALLSENSTM software (optional)
Efficient Isolation Design
  • Design of double-layer isolation, reduce power consumption, environmental protection concept, energy conservation.
  • Internal isolated door design, easy observation of working room samples, keep temperature stability of working room.
Excellent Imported Sensor
  • Imported industrial sensor PT100, short response time, low self-heating temperature.
  • Imported humidity sensor, aerospace material, no maintenance, precision humidity control level.
ALLGENT Humidification System
  • Original design of humidification system, prevent disadvantages (non-uniformity, instability) of traditional atomizer design.
  • Automatic water intake, automatic water level control, ensure the precision of humidity control.
  • Stainless steel SUS304 internal surface and water tank, ensure the quality of atomization and uses persistent.
Ergonomic Design
  • Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
  • Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
  • Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
  • Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
  • Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.

    Modern manufacturing processes

  • Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
Easy to Clean
  • Internal surface is smooth and less weld, easy cleaning and maintenance.
  • Pull multilayer shelf design, less metal accessories, easy to clean.
  • Drainage design of chamber humidification collecting tank. User can discharge water as required to avoid bacteria.
Convenient Maintenance
  • Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
  • Electrical control components and working room are installed separately. installed behind incubator, easy to maintenance.
Secure and Efficient Protection Concept
  • Multiple over temperature protection function, sound and light alarm.
  • Automatic double over temperature protection function.
  • All electronic components are UL certified.
  • All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.
Technical Parameters

Product Model

ALLIGENT-KG

Comprehensive drug stability test chamber

YR05350

YR05351

YR05352

Convection Mode

Forced Convection

Control System

Thirty stages Microprocessor PID controller

Temp. Range

0~60

Temp. Accuracy

0.1℃

Temp. Fluctuation

(10-40℃)

±0.5℃

Temp. Uniformity(10-40℃)

±1

±1 ±1.5

Humidity Range

Humidity Range:50~90%RH,Humidity Fluctuation:±3%RH

Working environment

Ambient temperature:10~30℃, Humidity <70%

Insulation materials

Imported environmental protection type material

External Dimensions (H×W×D)

1410×650×680

1730×650×740

1700×745×930

Internal Dimensions (H×W×D)

760×510×390

1100×510×450

1050×600×640

Interior Volume(L)

150

250

400

Interior steel materials

Interior steel materials

Power Consumption (W)

1080

1100

1350

Power supply

AC220V/50Hz

Net Weight(KG)

107

135

158

Shipping Weight(KG)

132

162

186

Shipping Dimensions (H×W×D)

1610×750×830

1930×750×890

1900×840×1080

Additional information

Weight N/A
Dimensions N/A
Model

YR05350, YR05351, YR05352
