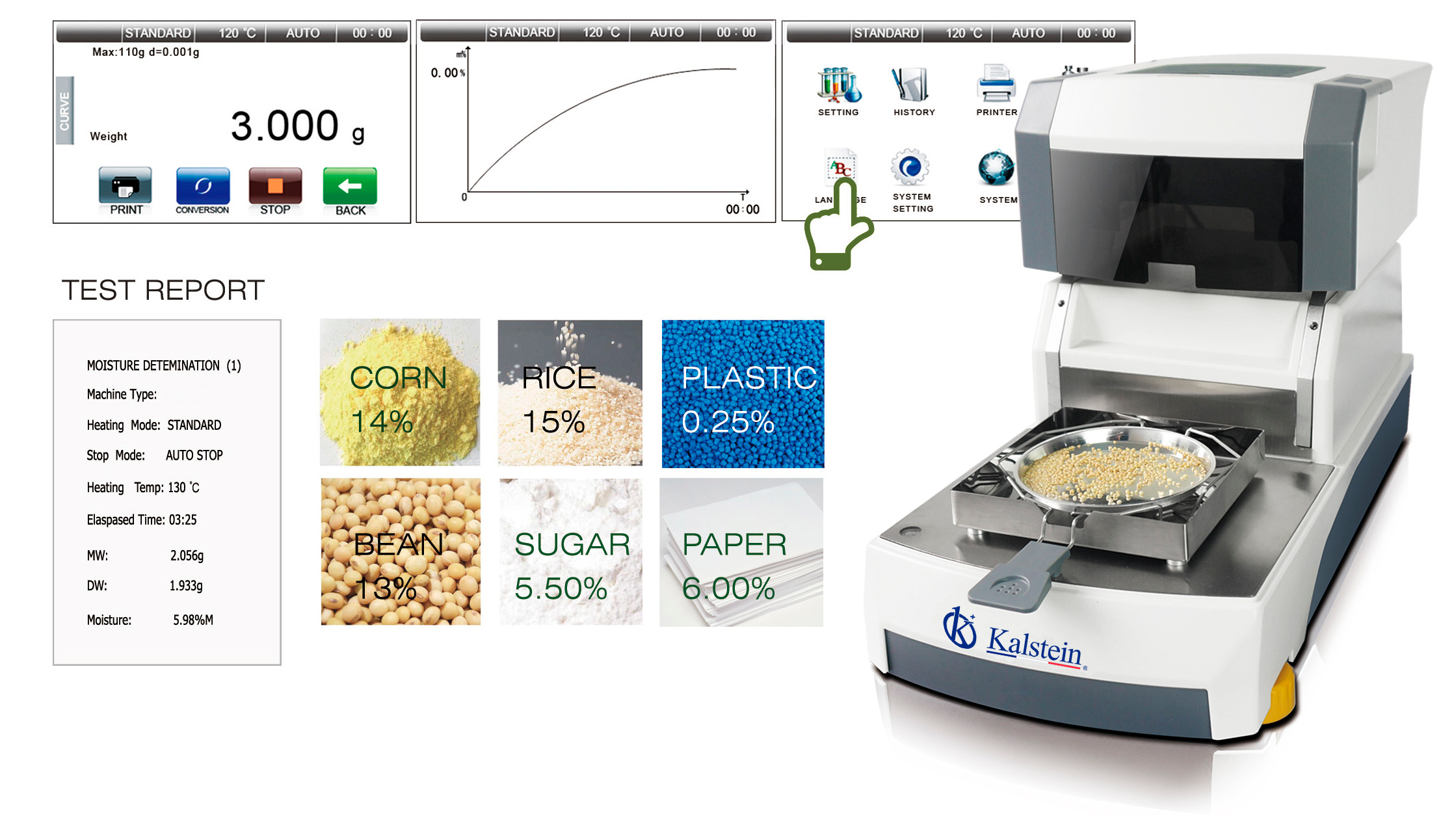

Halogen Moisture Analyzer YR05558 // YR05561

Manufacturer: Kalstein


  • 7 inch touch screen
  • Automatic door/Transparent window
  • Highlight halogen lamp
  • Polymer materials/Heat resistant molding
  • Dual motor drive/Double fan design
  • Temp.control/Stainless steel chamber
  • Real-time dynamic curve/Date and Time
  • Temperature/Time set
  • The percentage of moisture content
  • Store historical set
  • Connect PC and printer
  • Option: Printer
Technical Specifications
Model           YR05558 YR05559 YR05560 YR05561
Capacity   110g 210g
Readability    0.001g
Operating Temp    5℃-35℃
Pan Size     Ø100mm
Heating Source      Halogen Lamp
Temp.Sensor    PT100
Temp.Range      40℃-230℃
Temp.Step     1℃
Moisture Range     0.00%-100.00%
Moisture Readability   0.01%
Dry Range       100.00%-0.00%
Dry Readability   0.01%
Temp Setting      40℃-230℃ By 1℃ Step
Time Setting     1-99min By 10s
Number Of Storage      20
Number Of History      20
Heater     220V ±15% 50HZ/110V±15% 60HZ/400W
Balance     Input:220V 50HZ/110V 60HZ  Output:9V
Machine       Input: 220V 50HZ/110V 60HZ  Output:24V  Dual-drive
Host Dimension      215x195x415mm
Indicator Dimension  200x75x135mm
Operation Height        275mm
The Chamber Height 35mm
Display       7 inch touch panel
Interface       RS232/RJ45/USB…
Communication Mode       Cable Wireless Cable
Rechargeable Battery No 10,000mAh No

Additional information

Weight 10 kg
Dimensions 6 × 41 × 48 cm

YR05558, YR05559, YR05560, YR05561
