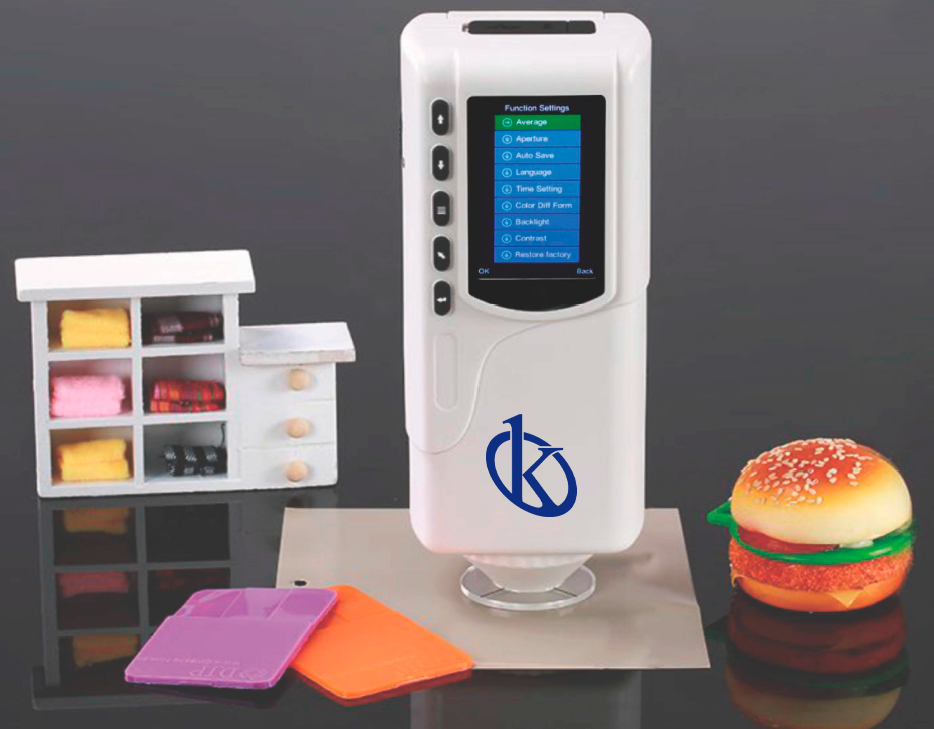

High cost-effective portable colorimeter YR05514


Product Description

ln response to the market demand for low price and high cost performance products, Kalstein has developed the YR05514 economic colorimeter, which is a higher cost-effective model. With the advantages of high precision, high performance and low price, this model has been widely used in food, chemical industry, electronics, automobile, cosmetics, food and other fields .

Product Features
  • High performance and low price.
  • Repeatability: ΔE ≤ 0.03.
  • Double locating: illuminating locating and precise cross locating.
  • Equipped with rechargeable Li-ion Battery, no need to purchase battery repeatedly.
  • 4mm measuring aperture, portable structure, suitable for more measuring occasions.
  • White appearance, color box packaging, easy to transport.
  • Built-in white plate parameters, no need to do calibration.
  • Directly use after power on, no need to connect with computer.

YR05514 Colorimeter is an economical and practical model, user-friendly interface design is easy to learn and operate. Illuminating and cross double locating functions make measurement more precise. Built-in white board makes measurement easier. At the same time, CQCS high-end color quality management software equppied  with instrument can easily help you manage your color database.

Application industry

Colorimeter can easily achieve accurate color transmission, also can be used as a measuring equipment for precise color matching system. It’s widely used in traffic signs, plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper and so on. With UV included, it can test fluorescent sample.

Technical Description
Model YR05514
Illuminating/Viewing Geometry 8° /D
Standard CIE No.15, GB/T 3978
Sensor Silicon photodiode
Measuring Aperture 4mm
Color Space CIE LAB, Lch
Observer CIE 10°
Illuminant D65
Display Data Colorimetric Value, Color Difference Value Storage
Temperature /Graph, PASS/FAIL Result, Color Offset
Measuring Time 1.5s
Repeatability ΔE* ab ≤ 0.03 (Average of 30 measurements of
Standard white Plate)
Dimension 205*67*80mm
Errors Between each instrument ΔE* ab 0.4
Weight 400g
Battery rechargeable lithium-ion battery 3. 7V@ 3200Ah
Lamp Life 5 years, more than 1.6 million measurements
Screen TFT 2.8 inch (16:9)
Interface USB
Storage 100 Standards, 10000 Samples
Operating Temperature 0-40°C (32-104°F)
Storage Temperature -20 -50°C (-4-122°F)
Optional Accessory miniature thermal printer, powder test box

Additional Information

Weight 1 kg
Dimensions 33 × 12 × 15 cm
