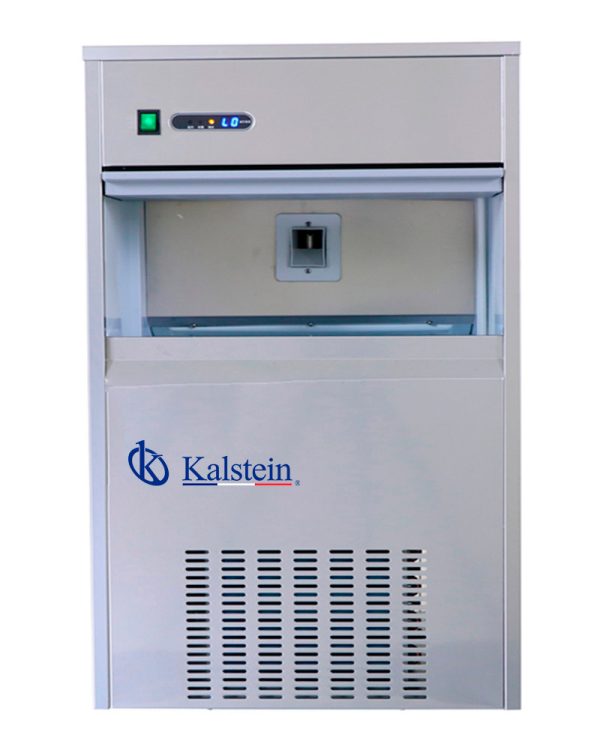

High Quality Shaved Ice Machine For Laboratory YR05137 //  YR05139

Manufacturer: Kalstein


  • High grade stainless steel is used which are anti-corrosive and durable. The compact structure is simple and space-saving.
  • The cabinet are filled with fluoride-free foam thermal cover featuring good insulation effect. The inner liner is food grade plastic. They are both energy-saving and environment-friendly.
  • World famous brand CFC free R134a compressors are used. Major parts and components have passed relevant safety certifications. The product has stable quality and long service life.
  • The ice-making process is fully computer controlled, using imported computer chips to make control reliable and operation easily.
  • The advanced technologies and imported accessories makes noise low, operation smooth and reliable.The ventilation holes and fans are deployed to ensure that motor of reducer can work reliably with high ambient temperature.
  • The patented technology of line of chip ice-making chamber separated from the evaporator which provides the high cooling efficiency and large ice-making capacity.
  • The screw extrusion hob-style ice-making type makes a compact structure,and automatic separation of ice from water. The optimal design of skate blade makes the shape of ice small and practical.
  • The unique float-type water tank water inflow system ensures that there is no residual water.Ice clearance process not needed and no water wasted, saving water and energy.
  • Fully automatic running with ice full display, water shortage display, in operation display and malfunction warning display, etc. for shutdown protection. They will stop automatically in case of ice full or water shortage and start automatically when ice is not full or water supply is resumed.
  • Flake ice cools more quickly than other ice forms,which can infiltrate into narrow space, featuring fast cooling speed, good ice bathing effect.
  • Long-term performance tests and safety electrical tests will be performed before delivery, ensuring excellent performance of the product.
Technical Characteristics
Model YR05137 YR05138 YR05139
Ice Making Capacity 100 Kg / 24 h 120 Kg / 24 h 150 Kg / 24h
Ice Storage 40 Kg
Voltage 220V / 50Hz or 110V / 60HZ (you need to pay extra)
Power 520 W 550 W 6800 W
Cooling Type Air cooling
Refrigerant R134a
Water Supply Tap water
Net Weight (Kg) 58
Gross Weight (Kg) 63
Product Dimension 500 x 611 x 940 mm
Packaging Dimension 560 x 670 x 980 mm
Filling quantity
20’GP 64
40’GP 136
40’HQ 136

Additional information

Weight 82 kg
Dimensions 64 × 73 × 112 cm

YR05137, YR05138, YR05139
