Laboratory Fume Hood,acid and alkali resistance Fume Cupboard Hospital Laboratory equipment YR05820 // YR05822

Manufacturer:ย Kalstein


  • Front Panel
  • Liner and guide baffles 5mm thick anti melamine board
  • (Window) 5mm thick tempered glass
  • Laboratory dedicated PP Cup
  • drain pioe
  • Lower Side Plate
  • Lower back plate
  • Lower Movable floor
  • Built in axial fan, air collector and anti-corrosion hose
  • With wind regulator
  • Upper side panel (1.2mm thick galvanized steel plate, epoxy sprayed outiside)
  • Built in LED tube

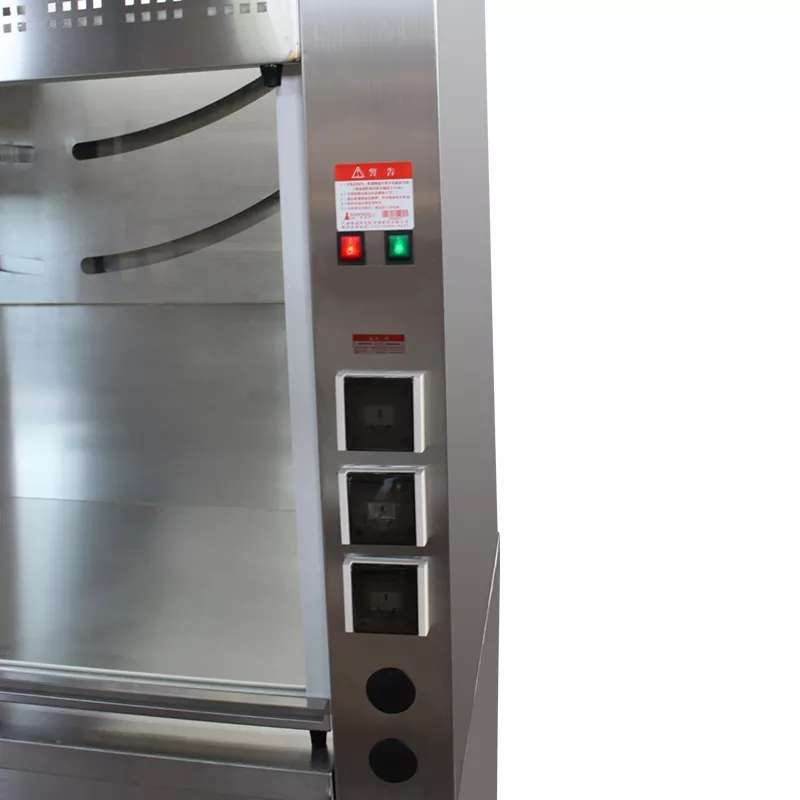

  • Fan and lamp switch
  • Multifunctional splash proof socket
  • 12.7mm corrosion proof solid core, physical and chemical board mesa
  • Door frames and door panels
  • Adjusting foot
Technical Specifications
Model YR05820 YR05821 YR05822
External Size (W*D*H) (mm) 1200*800*1500 1500*800*1500 1800*800*1500
Internal Size (W*D*H) (mm) 950*700*1150 1250*700*1150 1550*700*1150
Work Surface Height 800mm
Max Opening of window 750mm
Air Velocity/Exhaust air volume 0.4-0.6m/s,800-1000mยณ/h
Noise โ‰ค60dB
LED Lamp 10W*1
Blower Built-in axial flow blower;Speed adjustable.
Front Window Manual,5mm toughened glass,height adjustable.
Power Supply AC220Vยฑ10%,50/60Hz;
Consumption 100W
Main Body 1.2mm thickness stainless steel with epoxy resin powder coating.
Inner Side 5mm thickness compact,resistant to strong acid and alkali.
Work Table Chemical resistant phenolic resin, thickness 12.7mm.
Standard Accessory
LED lamp,Built-in axial flow blower with speed adjustable.
Waterproof socket*3
3 meter PP duct,Diameter:250mm
Optional Accessory Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight (kg) 235 265 300

Additional information

Weight N/A

YR05820, YR05821, YR05822
