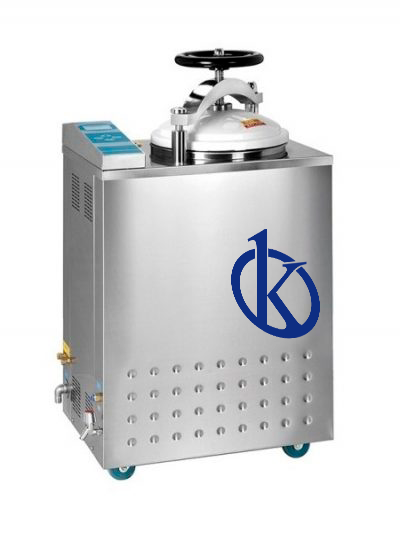

LCD Display Pulsating Vacuum Autoclave With Printer YR05673 // YR05675
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
- Automatically controlled bymicroprocessor, LCD display of working status, touch type key.
- Dynamically showed the temperature, pressure, time, vacuum rate, drying, alarm, water level, and the full cycle.
- Fully automatically route for adding water, pulse vacuum, heating, sterilizing, draining, exhausting, vacuum drying.
- Unique pulse vacuum drying procedure is designed, and the residue moisture of instrument less than 0.2% .
- The vacuum rate can reach -0.081Mpa, it fits various instruments, including packed, unpacked, dressings, solid, A, B type hollow whether multi-apertures or inset pipes.
- With 4 pre-set programs (Instrument, Textile, Rubber, Liquid), user-defined program, test programs (Bowie &Dick test, Vacuum leakage test)
- The door gasket is made of high-quality silicone, high temperature resistant, durable and not deformed.
- Equipped with water level cutoff sensor and water level indicator. If water shortage, the machine will stop running.
- Equipped with the PT/TT testing connector, easy to run the testing.
- Built-in high quality vacuum pump, to ensure effective removal of the air so as to get the optimum saturate steam, ensure the nice sterilization.
- Equipped with 0.22 µm bacteria filter, ensure the sterile air enter the inner vacuum environment, avoid the second contamination.
- Hand wheel type of quick-open door structure, self-inflating type seal.
- Adopted Independent steam generator, with high heating efficiency.
- Steam-water inner circulation system: No steam discharge and the environment for sterilizing will be clean and dry.
- Automatically shut off with beep reminding after sterilization.
- Fully high quality stainless steel 304.
- Built-in printer, record the entire sterilization cycle.
- Accessories: Drainage hoses, drain(exhaust) bucket, stainless steel baskets.
Safety Protection Device
- Heater protection
- Anti-dry heating
- Safety interlock door: The program can’t start up when the door is unlocked under normal condition. Door is locked and the door can’t open when pressure in chamber.
- Over-temperature protection: Adapt PT100 with accuracy class A for temperature control in chamber, collect temperature data in real-time, protect and alarm when temperature higher than default value.
- Over-pressure protection: The relief valve starts to release pressure automatically when the pressure in chamber and steam generator exceed the default value.
- Automatic release safety valve
- Over current protect
- Electric safety protective device: fuse protects control units when short circuit or overload occurs.
- Overheating protection device: high temperature deviation in chamber actuates protective device cuts off the heating source immediately.
- Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.
Technical Specifications
| Model | YR05673 | YR05674 | YR05675 |
| Max. pressure | 0.23Mpa | ||
| Working pressure | 0.22Mpa | ||
| Max. temperature | 136℃ | ||
| Working temperature | 134℃ | ||
| Working temperature range | 105 – 134℃ | ||
| Vacuum rate | -0.081Mpa | ||
| Sterilization time | 0 – 99 min | ||
| Drying time | 0 – 99 min | ||
| Accuracy of temperature | 0.1℃ | ||
| Heat average | ≤± 1℃ | ||
| Type | Vertical Pulsating Vacuum Autoclave | ||
| Class | Class B | ||
| Control | Microprocessor | ||
| Door | Hand wheel type quick open door | ||
| Display | LCD display | ||
| Drying system | Vacuum drying | ||
| Vacuum pump | Built-in | ||
| Steam generator | Built-in | ||
| Sterilization program | Pre-set program + User-defined program + Test program | ||
| Water tank | Yes | ||
| Printer | Yes | ||
| Sterilization basket | 2 PCS | ||
| Language | English | ||
| Voltage | 220-240V, 50/60Hz, single-phase | ||
| Chamber Size(mm) | 50L / Ø340×550 | 80L / Ø420×600 | 100L / Ø440×650 |
| Outer Size(mm) | 660×460×1160 | 700×520×1250 | 700×520×1250 |
| Packing Size(mm) | 820×600×1400 | 820×620×1450 | 820×620×1450 |
| G.W. / N.W. | 120/100 kg | 172/142 kg | 176/146 kg |
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | YR05673, YR05674, YR05675 |
