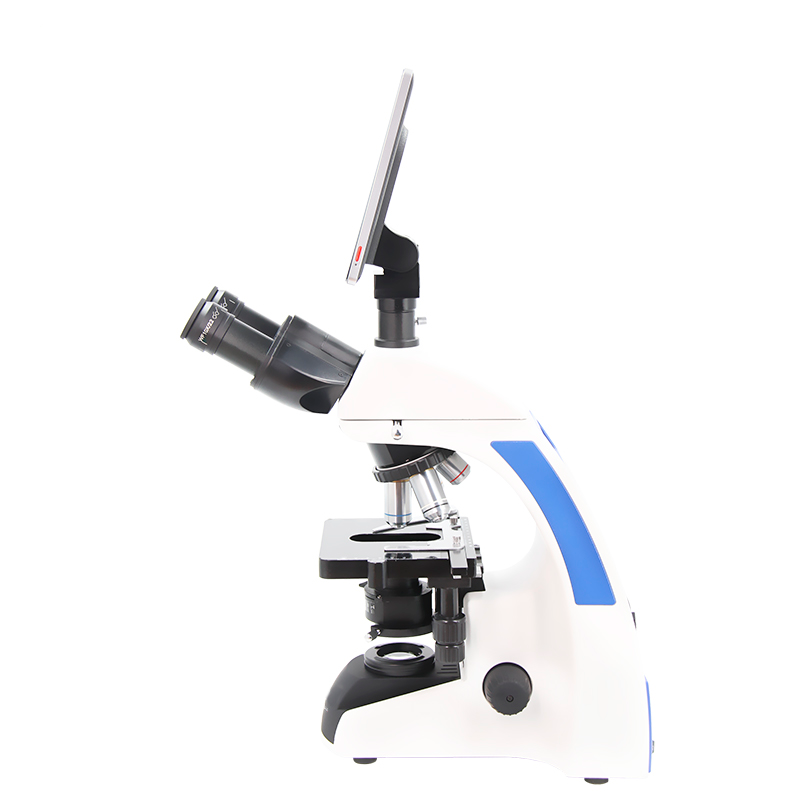

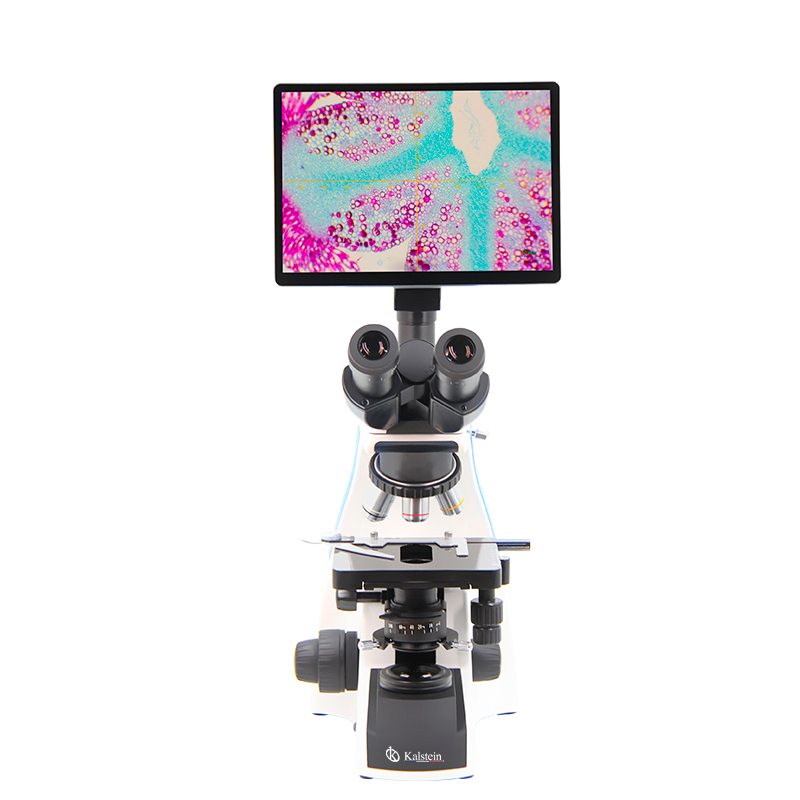

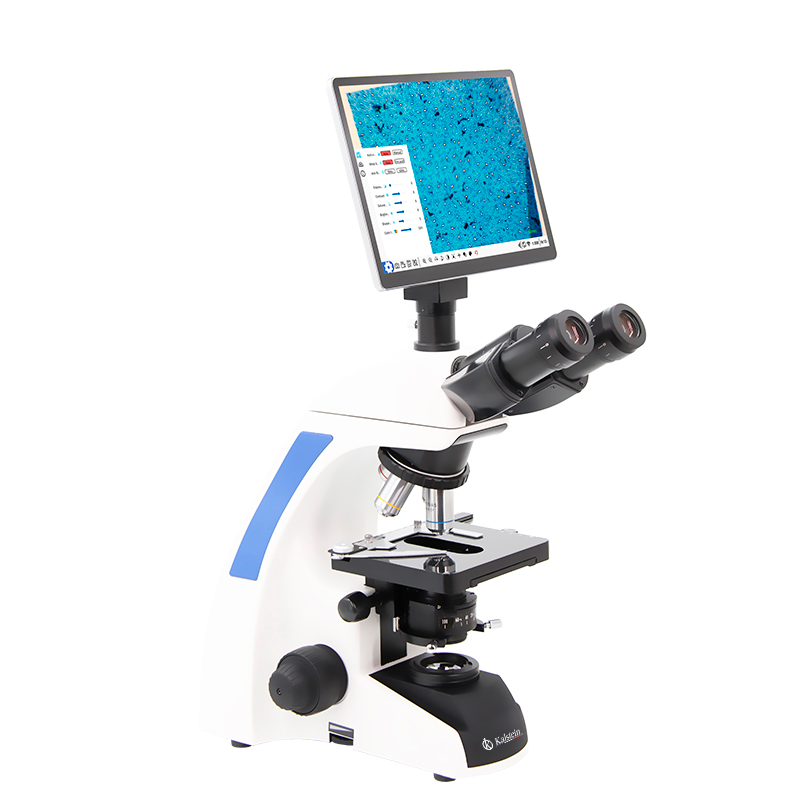

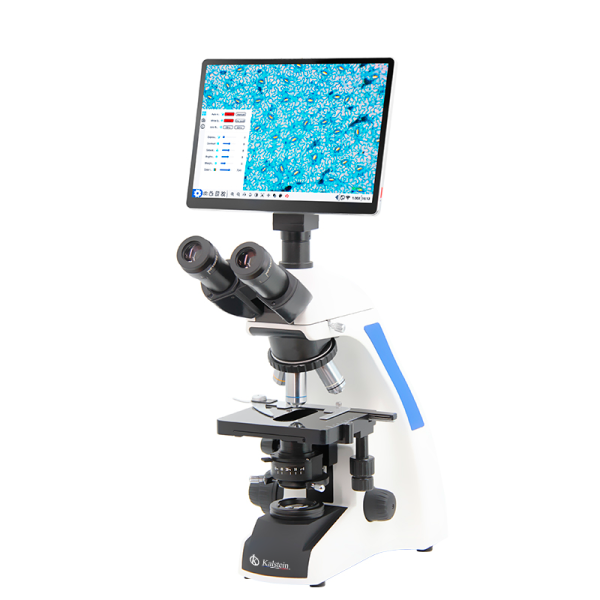

LCD Touch Screen Digital Microscope YR05782

Manufacturer:ย Kalstein


  • 10.5″LCD Touch Screen Pad, With Android System + Measuring Software
  • High Eyepoint Wide Field Eyepiece WF10x/20mm Dia.30mm
  • Achromatic HC 4x,10x,40x100x Objective, Upgradeable To Infinity
  • Double Layer Mechanical Stage 143*132mm, Upgradeable To 216x150mm
  • 3W LED Kohler Illumination With Removable Light House For Easy Maintainence
Technical Specifications
Model YR05782
Head Trinocular Head, 30ยฐ Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable
Eyepiece WF10x/20mm, Diopter Adjustable, Dia. 30mm
Objective High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S)
Focus Knob Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm
Nosepiece Quadruple, Backward With Click Stops

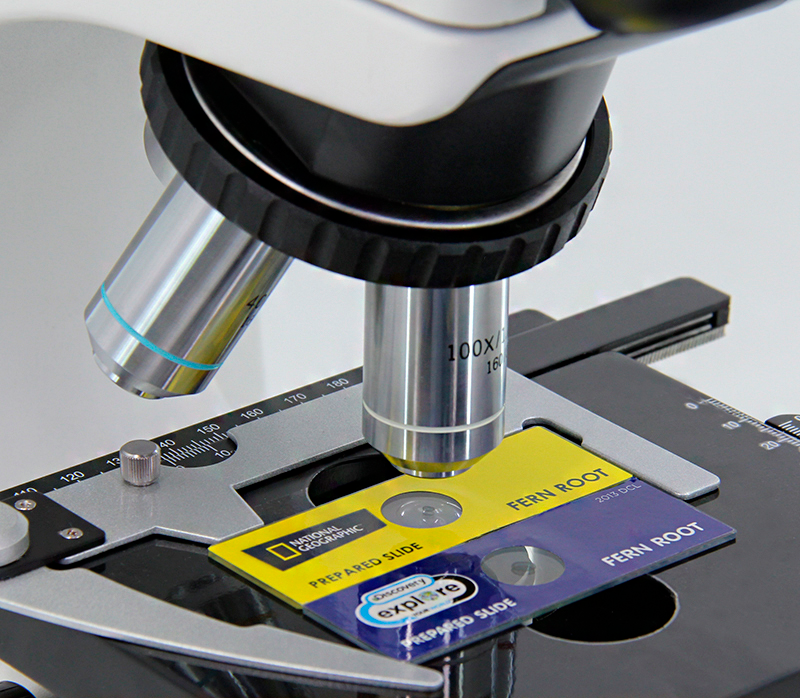

Stage Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm
Condenser Abbe Condenser N.A.1.25, Center Adjustable
Light Source 3W LED Brightness Adjustable
Adapter C-Mount 0.5x
Package 53*32.5*53.5cm/11.5Kg, 1 Set/Carton
10.5โ€œ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022!
Spec.ย  Model YR05782-op0
Category HD All-in-One Android 11 System Tablet Digital Camera
Sensor 1/1.8โ€ CMOS Sensor
Effective Pixel 8M, 4K
Screen 10.5โ€ High-Definition Touch Screen
Operation System Android 11
WIFI 2.4GHz/5GHz Dual-band WIFI, Support WIFI6
Bluetooth Bluetooth 5.0
Output USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port
Pixel size 2.0um*2.0um
Power DC-12V/2A
Function Basic Function Android Interaction, Installed S-Eye2.0 Measure Software
Image Adjustment Brightness, Contrast, Saturation, Color Temperature
Camera Function Mirror, Flip, Freeze, Black and White
UI Interface Support User-friendly Mouse & Keyboard, And Touch Screen Operation
Photo 8.0M Image Capture
Video 1080P Video
Storage Still Photo And Video Recording, Picture Preview
Marking Point Coordinates, Crosshairs, Coordinate System, Text Annotations
Length Measurement Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance
Geometric Measurement Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle
Geometric Area Measurement Polygon, Rectangle
Measurement System Built-in S-Eye Software
Package Box Size 237*169*10.5mm
Weight 0.6kg
Accessory DC-12V/2A Power Adapter
Laboratory Biological Microscope Optional Accessories
Eyepiece WF16X/F.N.15mm YR05782-op1
WF20X/F.N.12mm YR05782-op2
Nosepiece Backward Quintuple Nosepiece YR05782-op3
Dark Field Dark Field Condenser, Dry, N.A.1.25 YR05782-op4
Dark Field Condenser, Immersion, N.A.1.25~1.36 YR05782-op5
Polarizing Polarizer & Analyzer YR05782-op6
Phase Contrast Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x YR05782-op7
Infinity Plan Phase Contrast Objective 10x,20x,40x,100x
Centering Telescope 10x
Optional For B, T Only
Adapter Eyepiece Tube Adapter YR05782-op8
C-Mount 1.0x YR05782-op9

Additional information

Weight 11,5 kg
Dimensions 53 × 32,5 × 53,5 cm
