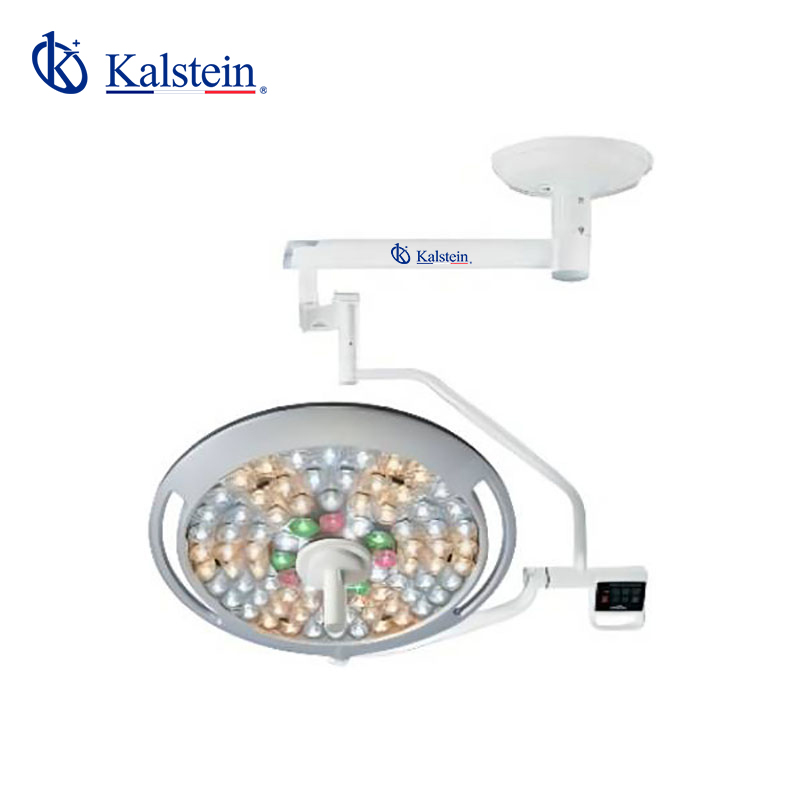

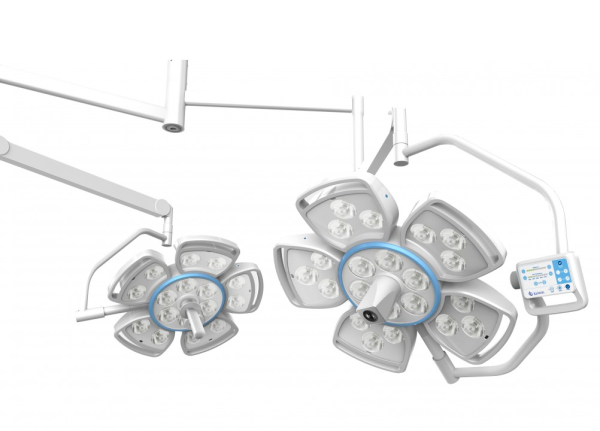

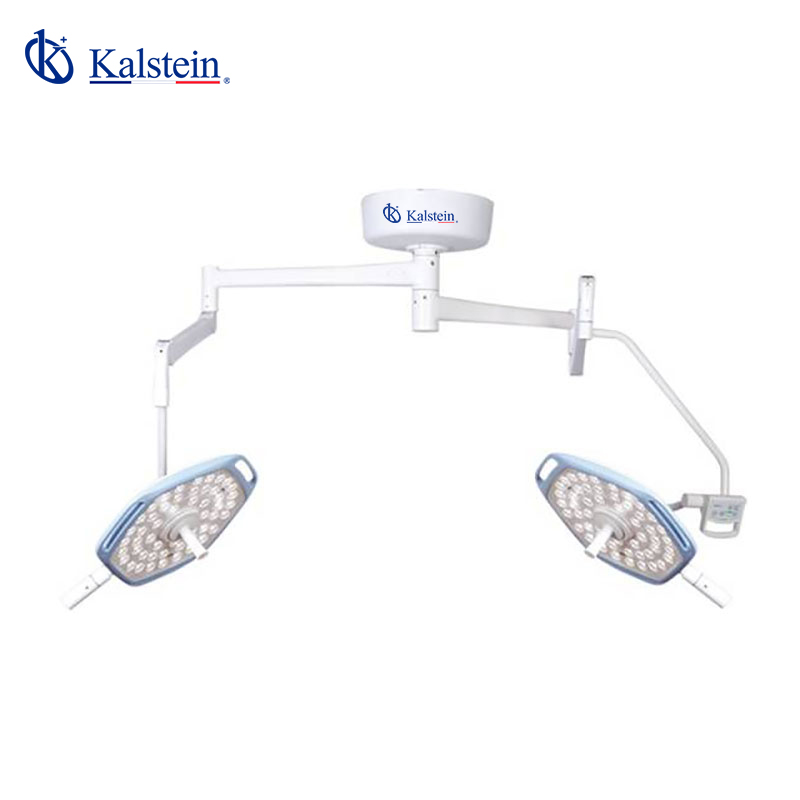

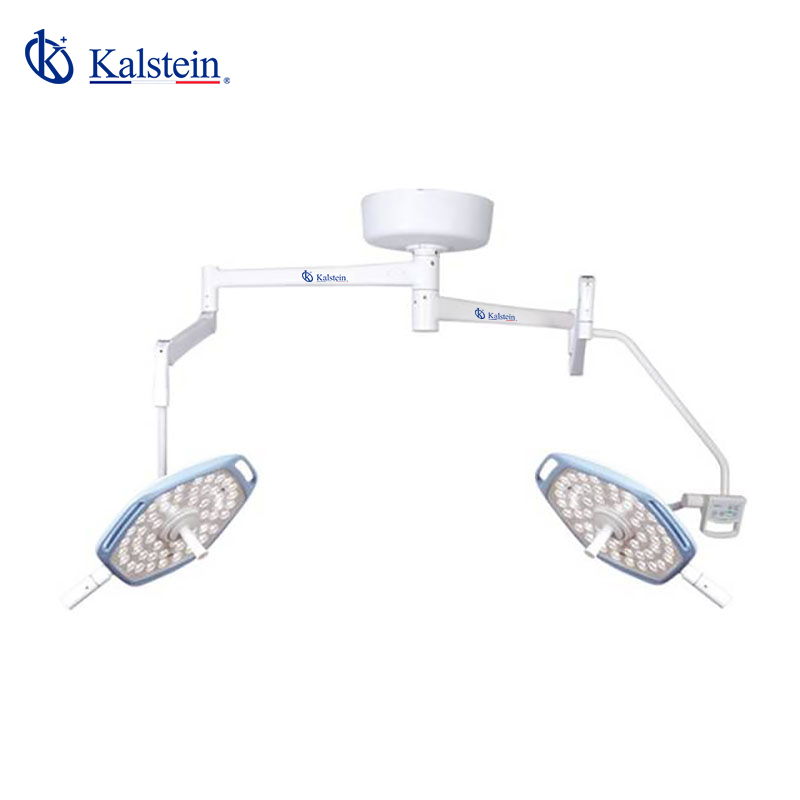

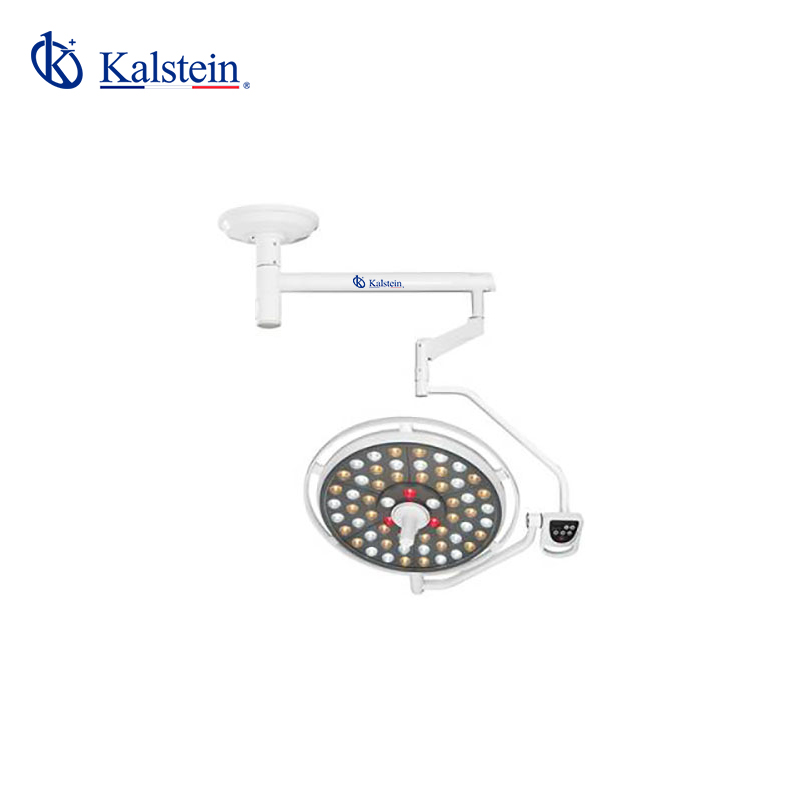

Operation Lamp YR02106 // YR02112

Manufacturer: Kalstein


Adopt imported LED cold light source.

Nano coating and die-cast aluminum enclosure creating a streamlined excellent cooling effect.

Intelligent touch control screen.

The removable handle sheath can be cleaned and disinfected.

The no welding titanium alloy arm, imported spring arm is lifted and lowed easily and freely.

The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable.

Adjustable temperature, R9 features that enhance the red color rendering index.

The service life of LED shadowless lamp is long (50,000h).

Technical Specifications
Model YR02106 YR02107 YR02108 YR02109 YR02110 YR02111 YR02112
Illumination at 1m(lux) 160000/160000
Illumination at 1m on Endo model(lux) 15000
Light field diameter D10 mm 180±40/180±40 180-300
D50 mm 110±35/110±35 180-300
Depth of illumination L1+L2 mm 150 >1000
Color rendering index(Ra) 100≥Ra≥85 ≥97
Red color index R9 R9≥97 ≥97
Optional color temperature(K) 6700K ≥Tc≥3500k 6700K ≥Tc≥3000k 4500K±500K
Average bulb life (hours) 50000h >50000h
Heat-to-light ratio(mW/m ²lx) <6
Power supply 110-240V AC110-240V 50/60Hz
Input power(VA) 150W/150W
Ceiling height for installation(cm) 270-320 cm 260 cm

Additional information

Weight N/A
Dimensions N/A

YR02106, YR02108, YR02110, YR02112, YR02107, YR02109, YR02111
