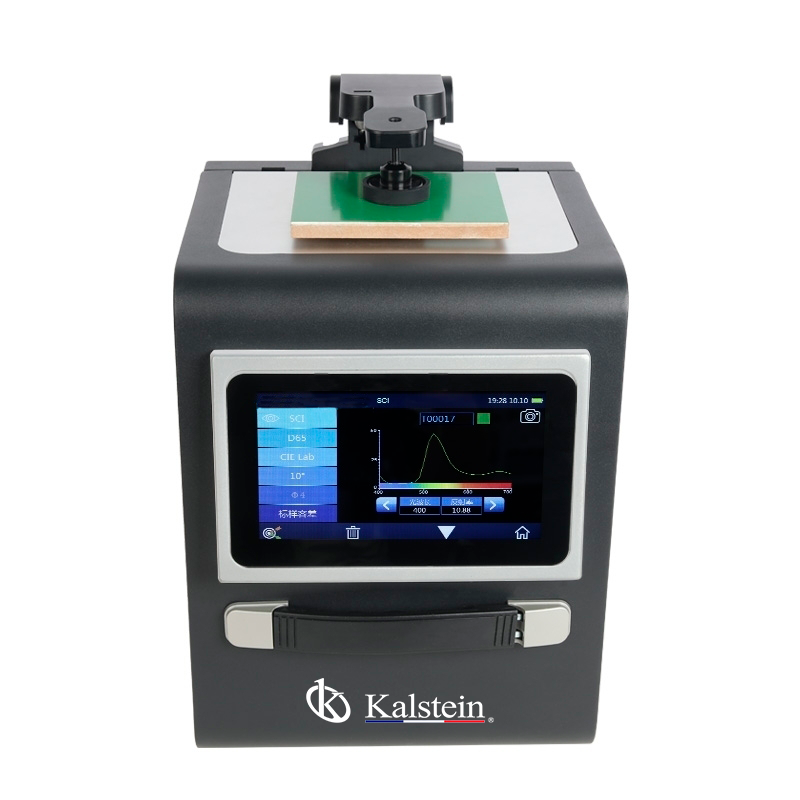

Portable Desktop Spectrophotometer YR05485

Manufacturer:ย Kalstein

Description

YR05485 portable desktop spectrophotometer color measurement instrument features with repeatability ฮ” E * ab easily control within 0.05, and inner errors ฮ” E * ab control within 0.15. This accuracy measurement makes it good used in the lab color accurate analysis and transfer.

The portable desktop spectrophotometer YR05485 is a spectrophotometer developed by Kalstein with independent core spectroscopic technology. It adopts built-in silicon photodiode array (40 groups in double rows) sensors and imported white board, and gives consideration to the speed of measurement and the convenience of operation. The rotating and pressing structure makes the test more convenient. YR05485 portable desktop spectrophotometer color measurement instrument features with repeatability ฮ” E * ab easily control within 0.05, and inner errors ฮ” E * ab control within 0.15. This accuracy measurement makes it good used in the lab color accurate analysis and transfer.

Application of YR05485 portable Desktop spectrophotometer:

YR05485 portable desktop spectrophotometer color measurement instrument equipped with ฮฆ30 mm diameter measurement, to adapt to the measurement of large samples, suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; and it can be used for fluorescence sample measurement.

Technical Advantages
  • Adopt international common use d/8 SCI/SCE Synthesis technologyYR05485 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement, and the test time is about 3.2 seconds.
  • Silicon photodiode array sensor (40 groups with double rows)Double 40 array sensor with larger area, high light saturation, high sensitivity of low light and wide spectral response range ensure the measurement speed, accuracy, stability and consistency of the instrument.
  • A variety of color space, a variety of observation light sourcesYR05485 portable desktop spectrophotometer color measurement instrument provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s – RGB, HunterLab, ฮฒxy, DIN Lab99, Munsell color space (C / 2), and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) light sources, which can meet the special measurement requirements under different measurement conditions.
  • Adopt combination full spectrum LED light source and UV light sourceFull band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing.
  • Calirbation CertificateEach YR05485 spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data.
  • Camera locating can clearly observe the measured areaYR05485 spectrophotometer has a built-in camera for positioning, which can accurately determine whether the measured part of the object is the center of the target through real-time viewing by the camera, thus improving the measurement efficiency and accuracy
  • Industrial-grade HD touch screen, easy to use user interfacUsing 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient.
  • Color management softwareSQCX quality management software with YR05485 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user’s color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer’s color management.
  • Optional AccessoryMicro printer, foot switch, rotating bracket can be freely selected according to the needs.
Technical Specifications
Model YR05485
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded) ;ย  Include UV / excluded UV light source
Comply to CIE No.15๏ผŒGB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic ฮฆ30mm apertures, to adapt to the measurement of large sample;
Rotary press type structure, more convenient for testing;
Accurate measurement, can be used for laboratory color accurate analysis and transmission;
Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; It can be used for fluorescence sample measurement.
Integrating Sphere Size ฮฆ152mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensor Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0~200%
Measuring Aperture ฮฆ30mm/ฮฆ25.4mm
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,ฮฒxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ฮ”E*ab,ฮ”E*uv,ฮ”E*94,ฮ”E*cmc(2:1),ฮ”E*cmc(1:1),ฮ”E*00, DINฮ”E99,ฮ”E(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter)๏ผŒ
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity
8ยฐ Glossiness,555 tone classification
Observer Angle 2ยฐ/10ยฐ
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, within ฮ”E*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ฮ”E*ab 0.15
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating
Dimension L*W*H=370X240X260mm
Weight About 7.8kg
Battery AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth ยฎ5.0, trigger switch interface
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40โ„ƒ, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment ย -20~50โ„ƒ, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity,Aperture
Optional Accessory Micro Printer, Foot Switch, Rotating Bracket
Notes Technical parameters are only for reference, subject to the actual sale of the product

Additional information

Weight 12 kg
Dimensions 45 × 32 × 35 cm
