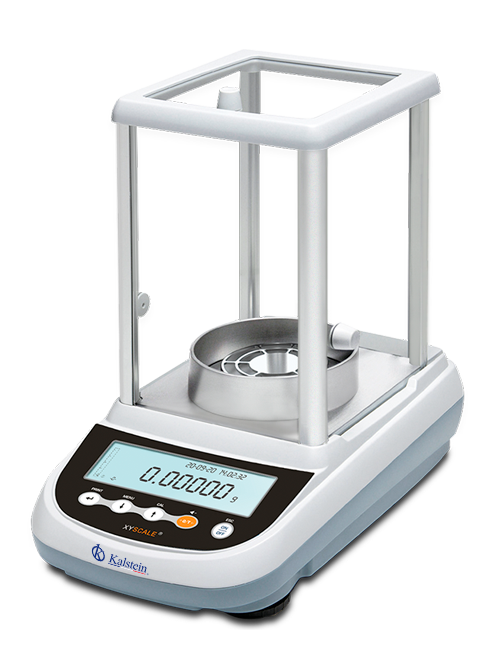

Semi-micro Analytical Balance YR05562 // YR05567



  • Recipe database: 99 datas can be stored
  • Automatic internal calibration
  • Tare/counting/percentage test/animal weighing
  • Baud rate is adjustable/ Density function
  • Unit conversion (g/mg/ct/oz)…
  • Multi-Language : English/ German/French/Italian/Spanish/Portuguese
  • Keep weight values in GLP/ISO format,Includes date, time, and serial number
  • Plastic protection cover for keypad
  • Sensitivity/speed adjustable
  • Overload alarm/fault alarm/level indicator
Optional Accessories

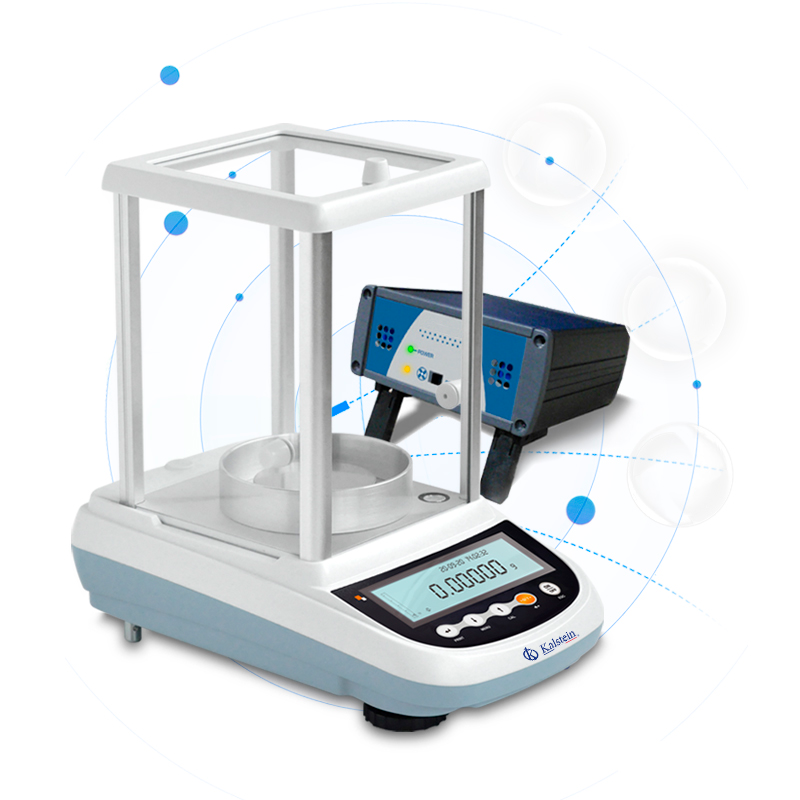

  • ION-A15 Static Eliminator
  • Balance plate system. USB version (BL0329) or Bluetooth version (BL0330)
  • DPP-250-BT Bluetooth printer for system (AC013)
  • TLP-50 serial printer with date/time (C054)
  • DPP-250 serial printer (AC007)
  • STAT serial printer with statistical function (AC022)
  • Alphanumeric external keyboard (AC005)
  • Serial to USB converter (E1002)
  • Serial cable for serial output to printer or computer (E743)
  • Factory calibration certificate (BL0333)
Technical Specifications
Model YR05562 YR05563 YR05564 YR05565 YR05566 YR05567
Capacity(g) 62g/120g 82g/220g 102g/220g 122g 162g 210g
Resolution(g) 0.01mg/0.1mg 0.01mg
Min weighing(g) 60mg 100mg 100mg
Stable Time ≤6s
Display LCD(white back light with black font)
Pan size Φ80mm
Operation temp 5-25℃ 20-80% humidity
Repeat ability 0.03mg/0.1mg 0.05mg/0.1mg 0.05mg 0.05mg
Liner ±0.08/±0.2mg ±0.1/ ±0.2mg ±0.1mg ±0.1mg
Draft shield size 152mm×160mm×225mm
Cal.weight Internal Calibration
Option RS232C & RS485、Printer
Dimension 345×215×345mm
G.N . weight 8.25kg/5.8kg 8.3kg/5.85kg
IONISER Option Standard
Language Italian/English/Portugues/Deutsch/France/Espanol
Packing Size 510x400x620mm(No pallet)
Power Supply 110-230V  50/60Hz Out DC 12V 1A

Additional information

Weight 8,3 kg
Dimensions 51 × 54 × 76 cm

YR05562, YR05563, YR05564, YR05565, YR05566, YR05567
