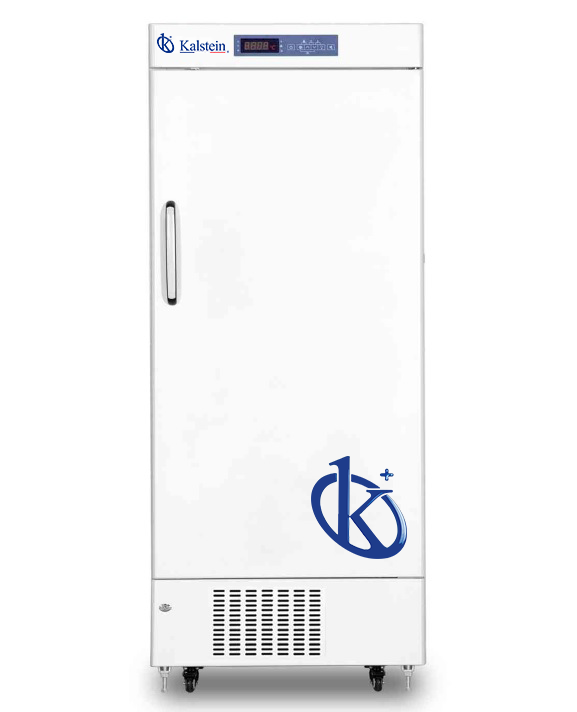

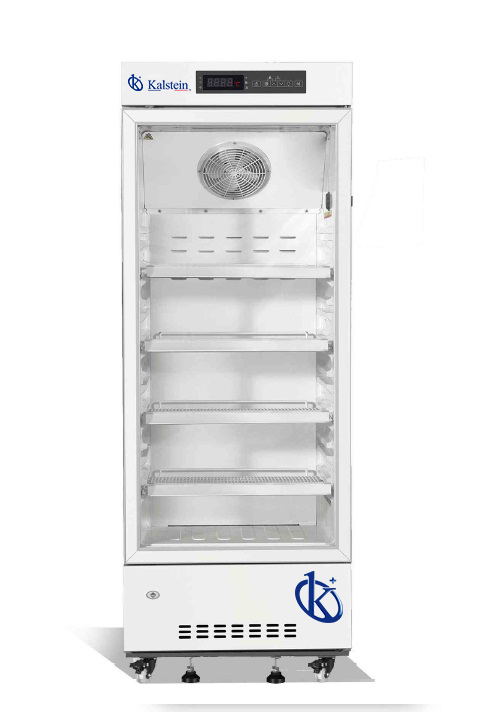

Single Door Medical Refrigerator Covid Vaccine Storage YR05288 // YR05289-2

Manufacturer:ย Kalstein


Kalstein Medical-grade Pharmacy Refrigerators are designed with the unique needs of the pharmacy environment in mind and safely store vaccines, pharmaceuticals, chemotherapy and other products requiring safe cold storage. The digital display control panel ensure the temperature display accurately in 0.1โ„ƒ.

  • Eletrically Heated Glass Door: Fog or condensation often occurs when opening and closing the door. However, this can be easily prevented which the electrically heated glass door, which quickly evaporate any moisture.
  • High Quality Materials: The Glass-door series products are made of high-quality coated cold-rolled steel both inside and outside, which is antibacterial, anti-corrosive, and easy to clean.
  • Green Earth: Sustainable U.S. EPA, SNAP, and EU F-Gas compliant natural refrigerants and foaming agents support sustainability initiatives. The cooling system uses R290 which are environmentally friendly, having no impact on ozone depletion and a very low Global Warming Potential (GWP) grade.
  • Ultimate Uniformity: The cabinet maintain temperature within +/-3 degree throughout the entire compartment, ensuring confidence that items are stored at the correct temperature regardless of their placement in the chamber.
Technical Specifications
Model YR05288 YR05289 YR05289-1 YR05289-2
Shelf/drawer QTY Wired shelf/5 Wired shelf/4
Cooling system Forced air
Defrost Frost-free
Refrigerant R290 R600a
Noise(db) 47 50 46
Ambient temperature (C) 10~32ยฐC
Temperature range( C) 2~8ยฐC
Compressor QTY 1
Sensor NTC
Temperature controller Microprocessor
Display LED digital display
Voltage(V) 187~242 187~242C 187~242
Frequency (Hz) 50Hz/60Hz
Power Consumption (kWh/24h) 2.2 3.2 2.4 1.6
Power (W) 480W 280W 260W 140W
Internal material Coated steel HIPS
External material Coated steel
Insulation CFC-free PURF
Capacity (L/cu.ft) 316/11.15 416/14.69 226/7.98
NT./GT.(kg) 92.5/100 120/133 118/130 73/80
Exterior size(W*D*H)(mm) 660*555*1915 782*552*1927 625*594*1707
Interior size(W*D*H)(mm) 540*425*1380 685*429*1380 534*406*1150
20GP/40GP/40HQ 27/54/54 18/39/39 24/51/51
High/low temperature Yes
Power failure Yes
Sensor error Yes
Low battery N/A
Condenser fault N/A
Ambient temberature N/A
Door ajar Yes N/A Yes
Power failure backup 8 hours
Castor Yes
Leveling feet Yes
Glycerine box/Qty Yes/1 N/A
Illumination LED
Access port Qty/diameter 1/25mm
USB Interface Optional
Remote alarm port Yes
Door type/Qty Heating glass/1 Self-closing Solid/1 Heating glass/1
Heated glass Yes N/A Yes
Chart recorder N/A Optional N/A Optional
Data logger Optional
AISI 304 interior Optional N/A

Additional information

Weight N/A
Dimensions N/A

YR05288, YR05289, YR05289-1, YR05289-2
