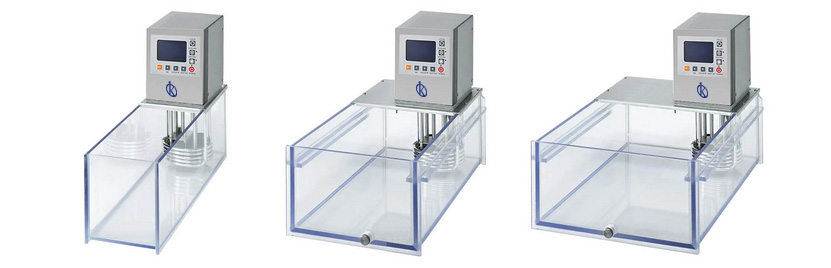

Transparent Water Bath YR05080 // YR05082

Manufacturer: Kalstein

Description

YR ย transparent water bath series is with transparent chamber design, with big improvement on temperature uniformity and accuracy, especially designed for tissue culture, enzyme reaction studies,growth observation studies etc.

Model YR05080 YR05081 YR05082
Cpacity (L) 10 16 23
Temperature (ยฐC) RT to 80ยฐC
Power (KW) 1.0 1.5
Resolution 0.1
Accuracy (ยฐC) ยฑ0. 5 0.5
Stability (ยฐC) ยฑ0.1
Power (KW) 1.0 1.5
Voltage 220V 50Hz
Max Flow 14L/ min
Max Lift 12M
Connector M16 (male screw)
Opening (W x D x H) (mm) 150x250x150 250x250x150 360x250x150
Tank (WxDxH) (mm) 160x420x150 260x420x150 370x420x150
Overall (WxDxH) (mm) 200x440x350 300x440x350 410x420x350
Optional Spare Parts
Tube Rack
No. 1 190 x 80 x 85 ; ร˜13 x 40
No. 2 230 x 95 x 85 ; ร˜ 17 x 40
No. 3 250 x 105 x 85 ; ร˜19 x 40
No. 4 270 x 110 x 85 ; ร˜21 x 40
No. 5 310 x 130 x 85 ; ร˜25 x 40
No. 6 330 x 140 x 85 ; ร˜27 x 40
Magnetic Stirrer
No. 1 10 โ€“ 2 000rpm; 25W x 2points ; 250 x 150 x 30mm
No. 2 10 โ€“ 2 000rpm; 25W x 4points ; 250 x 150 x 30mm
No. 3 10 โ€“ 2 000rpm; 25W x 6points ; 360 x 150 x 30mm
Connector
G โ€“ 15 / 6 304 Stainless Steel ; DN15-6mm
G โ€“ 15 / 8 304 Stainless Steel ; DN15-8mm
G โ€“ 15 / 10 304 Stainless Steel ; DN15-10mm
G โ€“ 15 / 12 304 Stainless Steel ; DN15-12mm
G โ€“ 15 / 14 304 Stainless Steel ; DN15-14mm
G โ€“ 15 / 16 304 Stainless Steel ; DN15-16mm
Hose
L โ€“ 6 / 8 Siliconetube ; inner diameter 6 mm โ€“ outer diameter 8mm
L โ€“ 8 / 10 Siliconetube ; inner diameter 6 mm โ€“ outer diameter 10mm
L โ€“ 10 / 12 Siliconetube ; inner diameter 6 mm โ€“ outer diameter 12mm
L โ€“ 12 / 14 Siliconetube ; inner diameter 6 mm โ€“ outer diameter 14mm
L โ€“ 14 / 16 Siliconetube ; inner diameter 6 mm โ€“ outer diameter 16mm
L โ€“ 16 / 18 Siliconetube ; inner diameter 6 mm โ€“ outer diameter 18mm

Additional information

Weight N/A
Dimensions N/A
Model

YR05080, YR05081, YR05082
