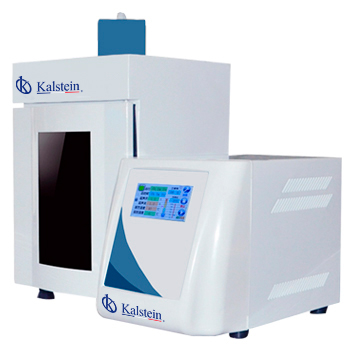

Ultrasonic Homogenizer YR05015 // YR05020

Manufacturer: Kalstein


  • Single-chip technology + 4.3-inch TFT capacitive touch screen (optional 7-inch), optional computer communication or data printing;
  • PID control, ultrasonic time, power can be set from 1% to 100%:
  • Sample temperature detection frequency automatically tracking, and the fault is automatically alarmed;
  • With overload protection function and the horn does not invade the liquid,it will automatically protect the horn from damage;
  • Voice alarm if fault, over temperature or operation error.
Technical Description
Model YR05015 YR05016 YR05017 YR05018 YR05019 YR05020
Power (Continuous) 1.5 โ€“ 150W 2-5 โ€“ 250 W 10 โ€“ 650 W 10 โ€“ 900 W 20 โ€“ 1 200W 50 โ€“ 1 800W
Mixing Capacity 0.1 โ€“ 150 ml 0.1 โ€“ 300 ml 0.1 โ€“ 500 ml 0.1 โ€“ 600 ml 1 โ€“ 1 000 ml 1 โ€“ 1 200ml
Optional Probe (mm) ร˜ 2/3/8 ร˜ 2/3/8/10 ร˜ 2/3/10/12 ร˜ 2/3/10/12/15 ร˜ 3/6/10/15/22/25 ร˜ 3/6/10/15/20/25/28
Ultrasonic Setting Time 0.1 โ€“ 99.9s
Single Stop Time 0.1 โ€“ 99.9s
Total Time Setiing 1 โ€“ 99hrs 59min 59s
Frequency Range 20 โ€“ 25 KHz 19.5 โ€“ 20.5KHz
Temp Control Range 0 โ€“ 100 C (Can be customized)
Alarm Functions Time, Temperature, overload, no-load Time, Temperature, overload, no-load, over temperature
Probe (Standard) ร˜ 6 (mm) ร˜ 20 (mm) ร˜ 22 (mm)
Display Mode Touch Screen
Data Storage 20 sets
Voltage (Optional 110V) 220 V / 110 V / 50 Hz / 60 Hz
Exterior Dimension 410 x 225 x 290 (mm)
Optional Function Computer + data printing function + soundproof cabinet lighting and sterilization
Control Mode Single Chip Microcomputer ยดTFT Touch Coontrol
Voice Alarm and prompt function Yes

Additional information

Weight 38 kg
Dimensions 50 × 35 × 50 cm

YR05015, YR05016, YR05017, YR05018, YR05019, YR05020
