Description

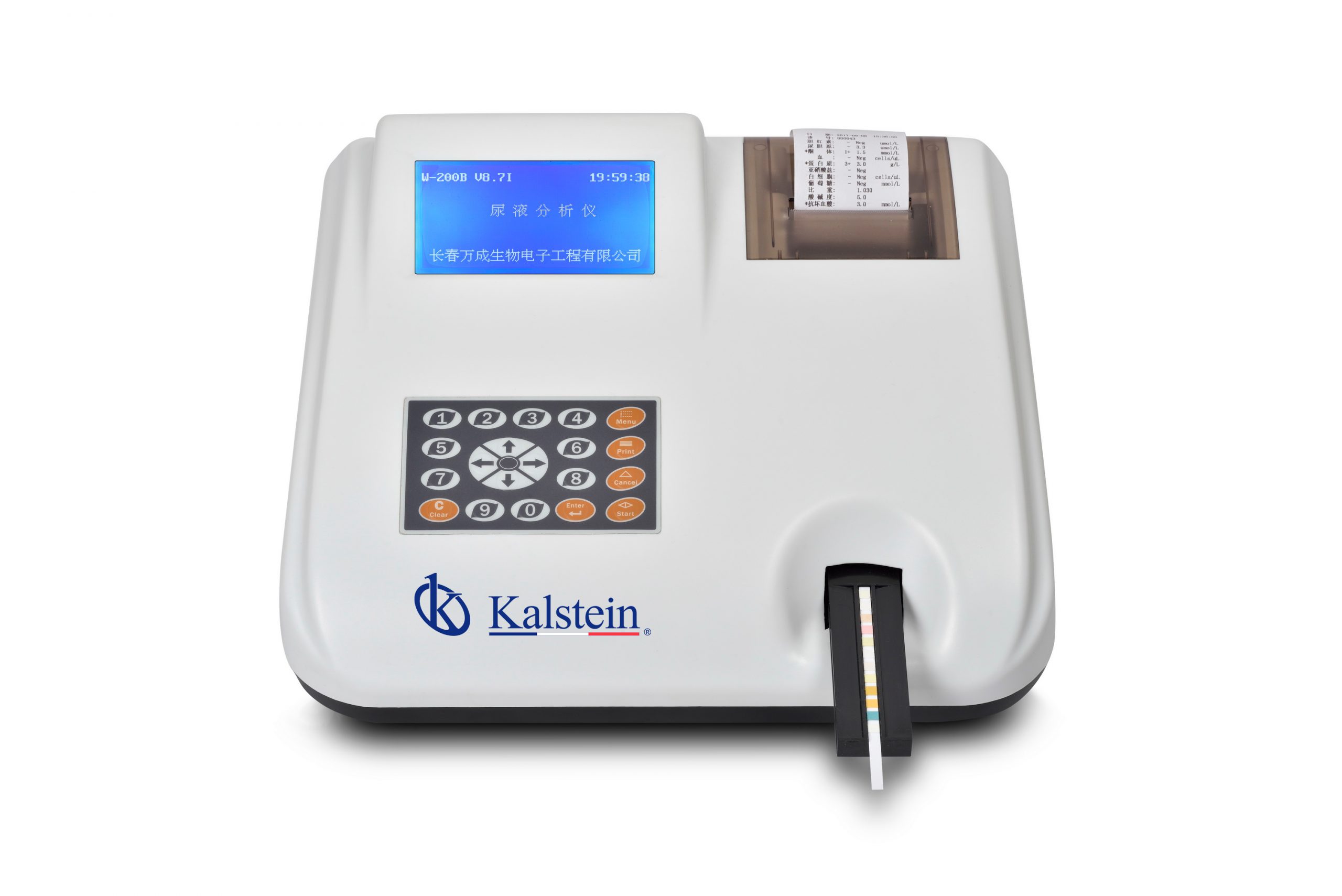

YR05180 urine analyzer is anather high performance, multi-function medical inspection instruments . Adopting the advanced “High luminosity cold light source reflection determination” technology and D pipeline architecture, the users put the test strips on the platform at any time and does not need to consider the reaction time. The instruments check the strips with the above sensor, and then transmit the strips to start testing, print the testing results automatically.
The information exchange between users and instruments are through the touch screen and interactive programs. Many models of urine strips which are produced by our factory can be used on this urine analyzer. It can finish testes on 12 kinds of biochemical components in urine within 6.9 seconds, such as Leucocyte, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose, and Micro Albumin.
| Model | YR05180 |
| Reaction principle | High luminosity cold light source reflection determination |
| Wavelength | 400nm,520nm,560nm ,610nm,660nm,940 nm |
| Test speed | 300-600, 522 specimens /hour (affected by human factors and software version) |
| Data Memory | 1000 patient results |
| Environment requirements | Temperature 10°C-30°C, optimal temperature 18 °C-25°C |
| Relative humidity | ≤80% |
| Communication interface | RS-232serial port, parallel printing interface |
| Power supply | 220 VAC(±15%), 50/60Hz |
| Fuse | 250V 2A |
| Power | ≤60w |
| Net weight | 7.5 kg |
| Dimensions | 350mm×320mm×150mm |
| Printer | internal thermal printer, outer needle printer port |
| Language | English ( we can add other languages according to customer’s demand) |
| Standard RS232C output | port connect with computer |
| screen display | True color screen, clearer and brighter |
| Program memory | 8M+512K, |
| RAM | 32M+96K |
| Reaction principle | High luminosity cold light source reflection determination |
| Test items | Leucocyte, Nitrite, Urobilinogen, Protein, pH, Blood, Specific Gravity, Ascorbic Acid, Ketone, Bilirubin, Glucose, Micro Albumin. |
| Wavelength | 400nm,520nm,560nm ,610nm,660nm,940 nm |
| Test speed | 300-600, 522 specimens /hour (affected by human factors and software version) |
| Data Memory | 1000 patient results |
| Environment requirements | Temperature 10°C-30°C, optimal temperature 18 °C-25°C |
| Relative humidity | ≤80% |
| Communication interface | RS-232serial port, parallel printing interface |
| Baud rate | 9600bps |
| Power supply | 220 VAC(±15%), 50/60Hz |
| Fuse | 250V 2A |
| Power | ≤60w |
| Net weight | 7.5 kg |
| Dimensions | 350mm×320mm×150mm |
| Printer | internal thermal printer, outer needle printer port |
| Language | English ( we can add other languages) |
| Standard RS232C output | port connect with computer |
| screen display | True color screen, clearer and brighter, 6.1 -inch touched LCD screen |
| Program memory | 8M+512K |
| RAM | 32M+96K |
| test system | using 6 wavelength cold light source, both sensitivity & veracity are improved, reduced the ambient light interference. |
| auto correction ability | correct the influence which result from urine pH value, gravity and color |
