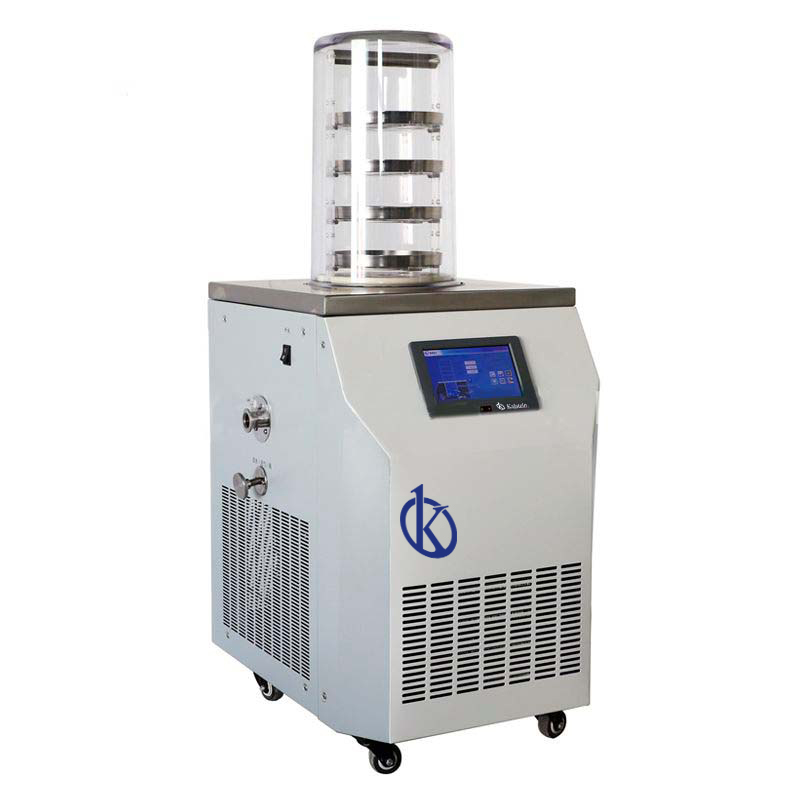

Vertical Normal Lab Freeze Dryer YR05190

Manufacturer: Kalstein


standard type vacuum freeze dryer is suitable for experiment in laboratory. Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

  • CFC Free refrigeration
  • LCD display drying curves, English interface
  • Big opening of condenser, condenser with pre-freezing function
  • Low noise compressor, good efficiency,long service life
  • Condenser and operation panel are all stainless steel
  • Drying Chamber with organic glass is safe and visible
  • Shelf and tray are stainless steel, tray spacing can be customized
  • Small volume , easy and convenient operation
  • Nitrogen valve is optional
  • Eutectic point test device is optional
  • Communication interface is optional
  • Cascade refrigeration is optional , applied for -80โ„ƒ device
Technical Description
Model YR05190
Freeze drying area 0.12ใŽก
Condenser capacity 3-4 L /24h
Condenser temperature -55โ„ƒย (-80ย โ„ƒย optional )
ย Vacuum degree < 10 Pa
Material tray ะค200mm , 4 layers
Bulk capacity 1.2L, 10mm thickness
Vial capacity ฮฆ12mm 920 pcs
Vial capacity ฮฆ16mm 480 pcs
Vial capacity ฮฆ22mm 260 pcs
Cooling Air, draughty, ambient ย  temperatureโ‰ค25โ„ƒ
Voltage 220V, 50Hz
Host dimension 556ร—460ร—(720+430) mm
Power 750W
Host weight 62 kg


Additional information

Weight 199 kg
Dimensions 77,5 × 69 × 120 cm
