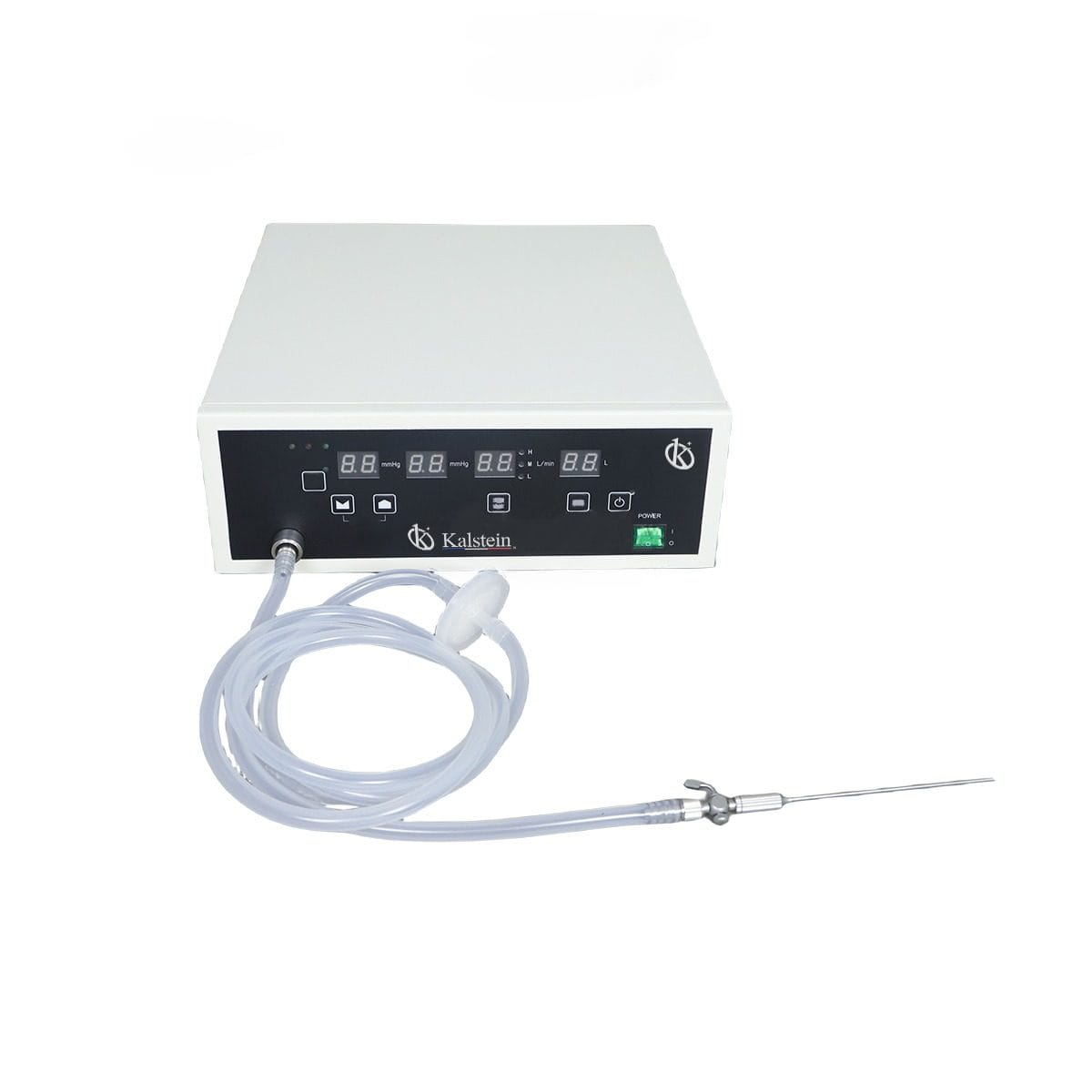

Veterinary CO2 Insufflator YR06157



Fully automatic silent design

Free choice of three flow rates: 4L/6L/10L

Special insufflator for animals, especially for small animals like dogs, cats, etc.

Automatic alarm function and safe procedure monitoring

To provide wide view and surgical space for animal laparoscopic surgery to connect with CO2 cylinders

Technical Specifications
Model YR06157
Flow rate 4L/min, 6L/min, 10L/min
Maximum flow rate 10L/min, adjustable
Preset pressure 0.67kPa~3.30kPa (5mmHg~25mmHg)
Control accuracy ±0.13kPa (1mmHg)
Power 40w
Gas source medical CO2
Working pressure alarm When it exceeds 4.40kPa±5% (i.e. 33mmHg±5%) for more than 3 seconds, it will alarm and relieve the pressure to the set pressure.
Cylinder pressure alarm When the cylinder gas output pressure is ≤0.29MPa (3kgf/cm2), the insufficiency machine will alarm to remind ventilation.
Ambient temperature 5℃~40℃
Relative humidity 30~75%
Atmospheric pressure 70kPa~106kPa
Power supply AC 220V, 50Hz

Additional information

Weight 12 kg
Dimensions 49 × 48 × 32 cm
