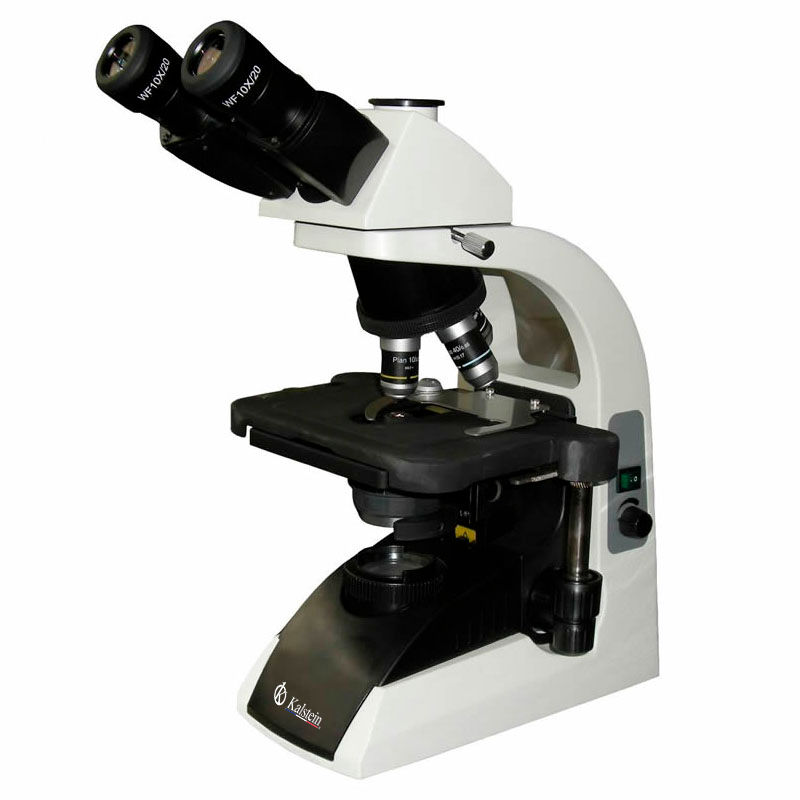

Binocular Laboratory Microscope YR0243 // YR0244

Manufacturer:ย Kalstein

Description

  • Infinity Achromatic Objective 4x,10x,40x,100x
  • Abbe Condenser N.A.1.25, Center Adjustable
  • Halogen Lamp 12V20W, Brightness Adjustable
  • Low Position Coaxial Coarse & Fine Focus System
  • Seidentopf Binocular (Trinocular) Head, 30ยฐ Inclined, 360ยฐ Rotatable
Technical Specifications
Model YR0243 YR0244

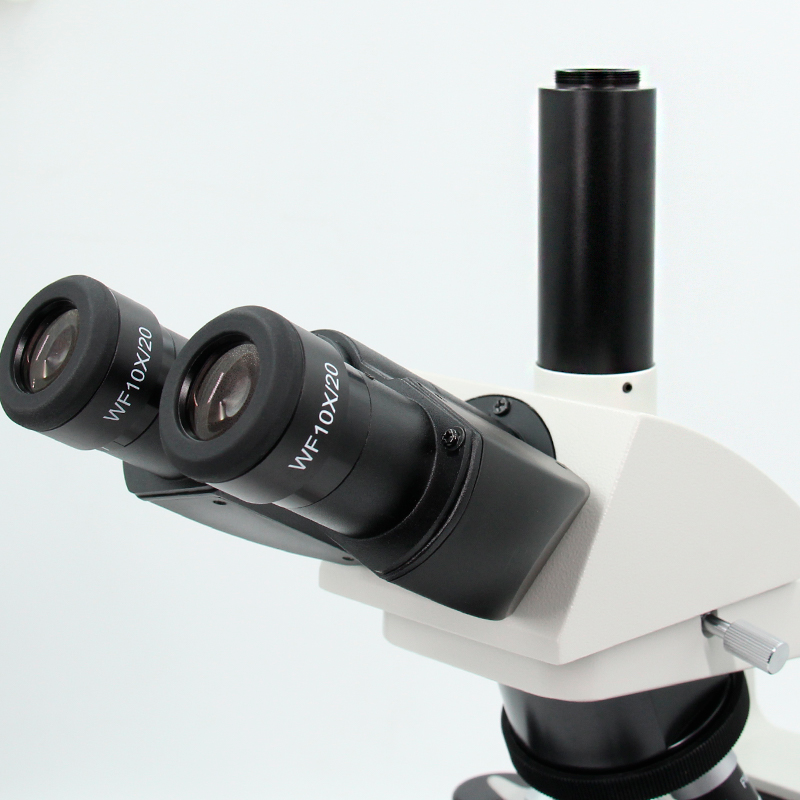

Head Seidentopf Binocular Head, 30ยฐ Inclined, 360ยฐRotatable,Interpulillary Distance 48-75mm โ—
Seidentopf Trinocular Head, 30ยฐ Inclined, 360ยฐRotatable,Interpulillary Distance 48-75mm โ—
Eyepiece Wide Field WF10x/20mm, Eyepiece Tube Dia.30mm, 2 pcs โ— โ—

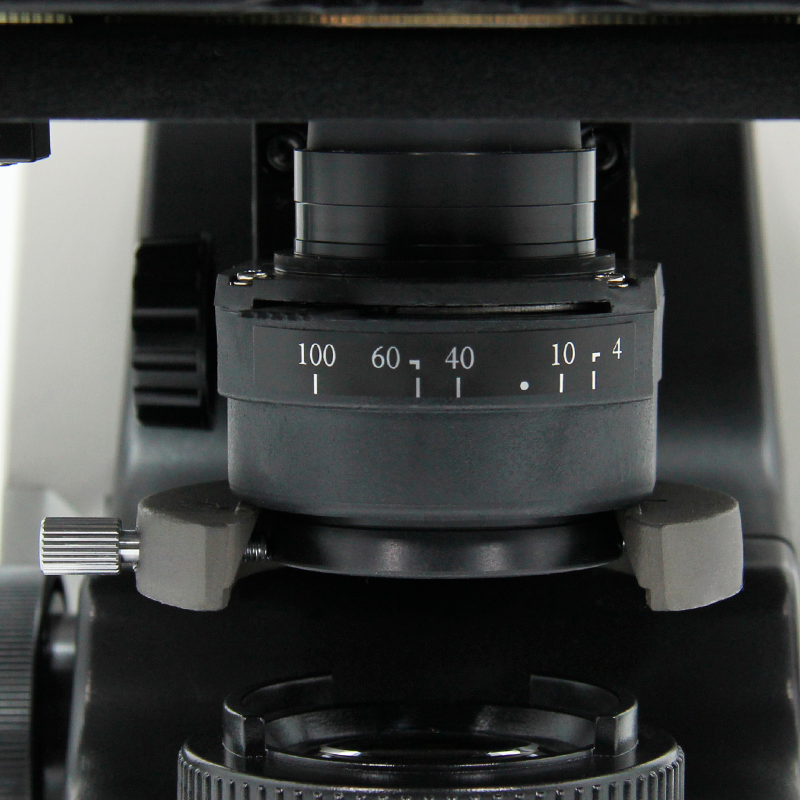

Nosepiece Backward Quadruple Nosepiece โ— โ—
Optical System Infinity Optical System โ— โ—

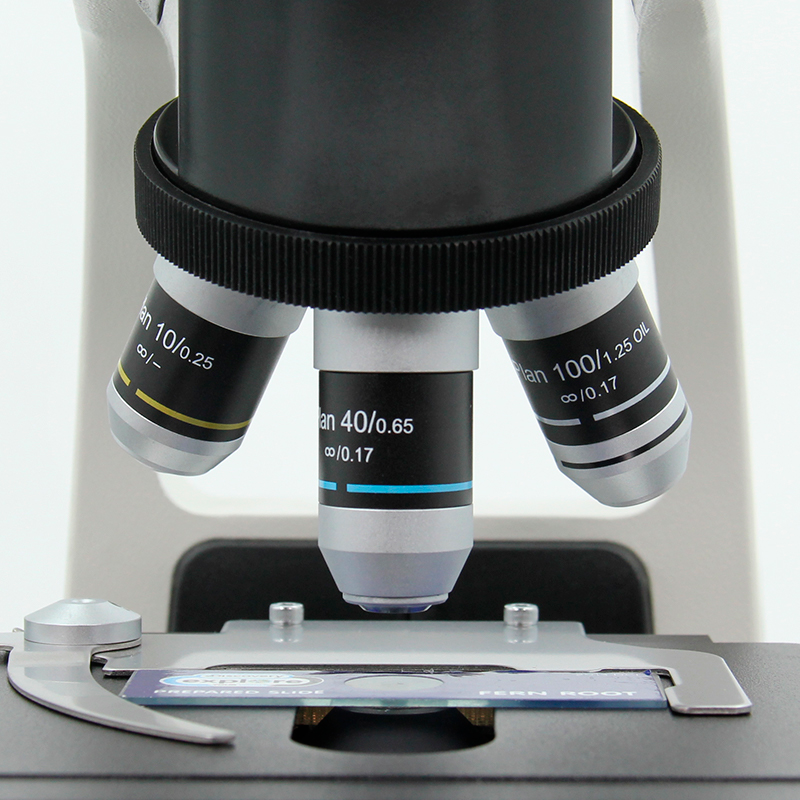

Objective Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65(S),100x/1.25(S,Oil) โ— โ—
Magification 40x-1000x โ— โ—

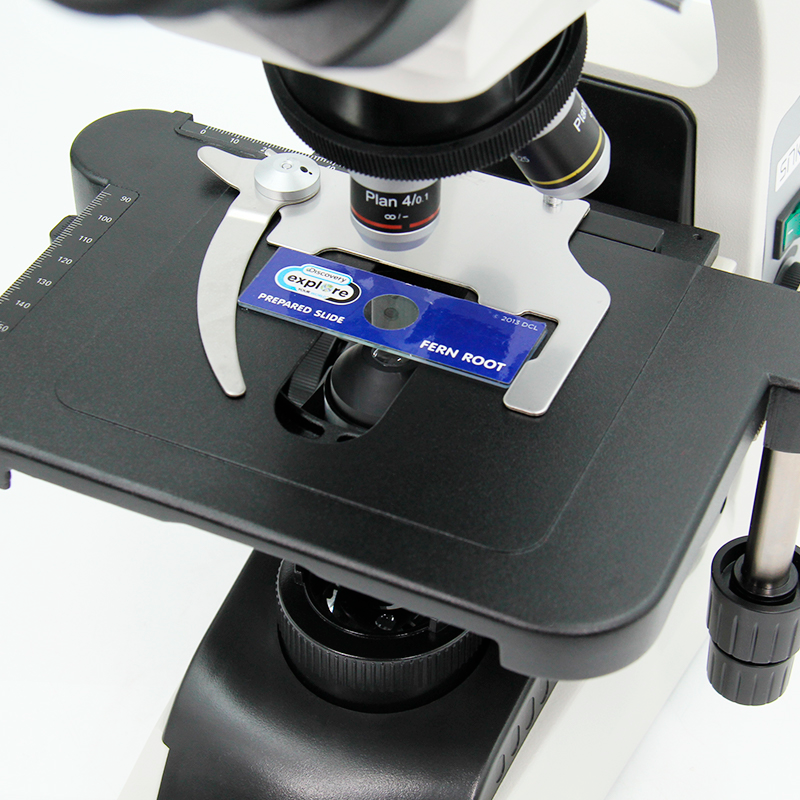

Stage Double Layer Mechnical Stage, 230x150mm, Moving range 54x78mm, Double Slide Holder, Low PositionX/Y Coaxial Control Knob, With Travel Guide To Aviod Scratch โ— โ—
Focusing Low Position Coaxial Coarseย ๏ผ†ย Fine Focusing. โ— โ—
Fine Focusing Scale 0.002mm, Moving Range 25mm, With Safety Stop โ— โ—
Condenserย  N.A.1.25 Abbe Condense, Iris Diaphargm,With Filter Holder,Up/Down Range 25mm, Center Adjustable,With Filter Holder โ— โ—
Filter Green โ— โ—

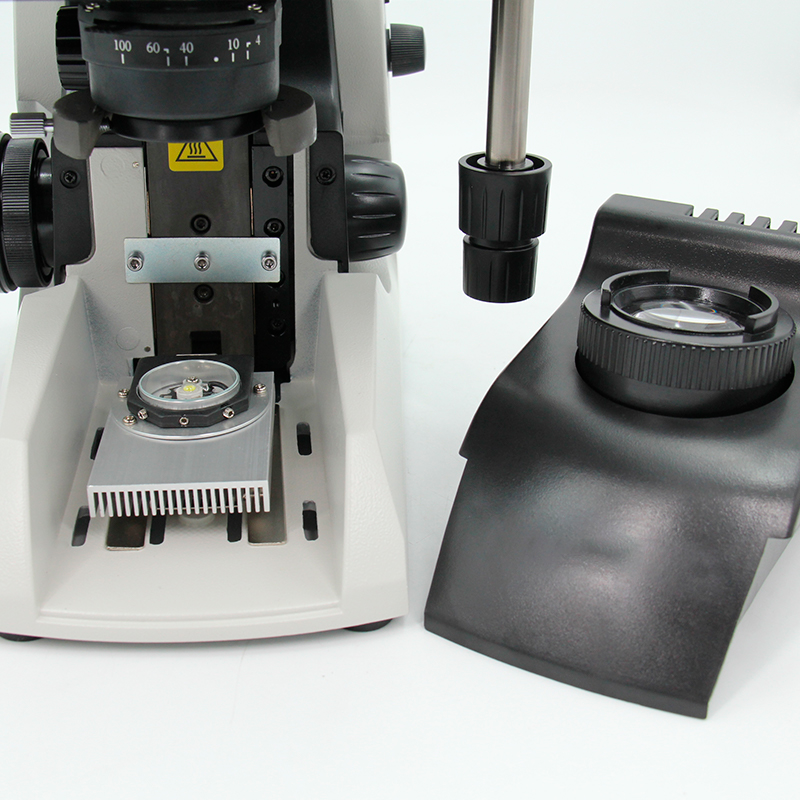

Light Source Halogen Lamp 12V/20W, Brightness Adjustable โ— โ—
Note:”โ—”In Table Is Standard Outfits
Items A12.1010 Laboratory Biological Microscope Optional Accessories
Eyepiece Wide Field WF15x/16mm, Eyepiece Tube Dia.30mm YR0244-op1
Wide Field WF20x/12mm, Eyepiece Tube Dia.30mm YR0244-op2
Objective Infinity Plan Achromatic 20x YR0244-op3
Infinity Plan Achromatic 60x YR0244-op4
Nosepiece Backward Quintuple Nosepiece YR0244-op5
Illumination Kohler Illmination YR0244-op6
Adapter Photo Adapter YR0244-op7
C-Mount 0.4x YR0244-op8
C-Mount 0.5x YR0244-op9
Dark Field Dark Field Condense, Dry YR0244-op10
Dark Field Condense, Immersion YR0244-op11
Polarizing Simple Polarizing Kit YR0244-op12
Phase Contrast Phase Contrast Set YR0244-op13
Fluorescent EPI-Fluorescent Kit YR0244-op14

Additional information

Weight N/A
Dimensions N/A
Model

YR0243, YR0244
