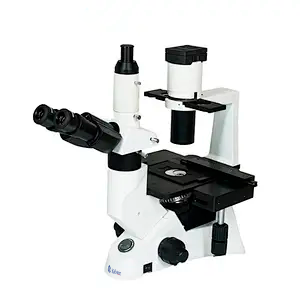

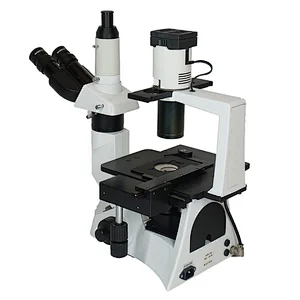

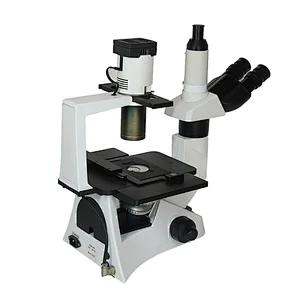

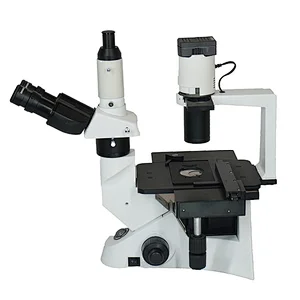

Inverted Trinocular Microscope YR0230

Manufacturer:ย Kalstein


Inverted Biological Microscope is equipped with extra Field Eyepiece EW10x/22mm, High Eye Point long working distance plan achromatic objectives, It can observe transparent and unfinished living specimen in culture bottle utensil. It is the ideal tools for research of living specimen structure liquid deposits and so on

Technical Specifications
Model YR0230
Optical Systemย  Infinity Optical System

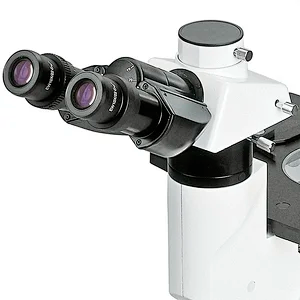

Head Seidentopf Trinocular Head, 30ยฐ Inclined,
Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Extra Wide Field Eyepiece EW10x/22mm, High Eye point
Nosepiece Quintuple Nosepiece
Objective Infinity Plan LWD Achromatic Objective 4x/0.1, W.D.18mm
40x/0.6, W.D.2.6mm,Cover Glass 1.2mm
Infinity Plan Phase Contrast Achromatic Objective PH10x/0.25, W.D.10mm
PH20x/0.40, W.D.5.1mm
Focusing Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per
Working Stage Plain Stage 160*250mm
โ€“Glass Insert Plate
โ€“Auxiliary Stage 70*180mm

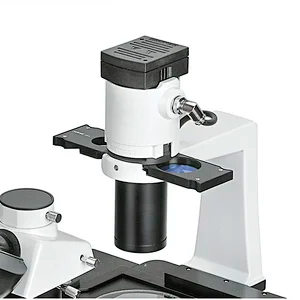

Condenser ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser
Phase Contrast โ€“Centering Telescope, Tube Dia.30mm
โ€“Phase Contrast Slide, 2 Holes For 10x-20x Objective
Filter Green, Blue, Ground Glass, Dia.45mm
Illumination External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable
Adapter Eyepiece Adapter Dia.23.2mm
Inverted Laboratory Biological Microscope Optional Accessories
Objective Infinity Plan LWD Achromatic Objective 10x/0.25,W.D.10mm YR0230-op1
20x/0.4,W.D.5.1mm YR0230-op2
Phase Contrast Infinity Plan Phase Contrast Achromatic Objective PH40x/0.6,W.D.0.35mm YR0230-op3
Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective YR0230-op4
Working Stage Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm YR0230-op5
Ergonomic Stage Knobโ€™s Height & Position Along Y-Axis Movable To Where It
Is Most Comfortable, Tightness Adjustable
Terasaki Holder, Inner Holding Size 56x88mm YR0230-op6
Petri Dish Holder Dia.38mm YR0230-op7
Slide Glass Holder Dia.54mm YR0230-op8
Slide Glass Holder Dia.90mm YR0230-op9
Adapter Photo Adapter YR0230-op10
C-Mount 1.0x YR0230-op11
C-Mount 0.45x YR0230-op12
Fluorescent Fluorescent Attachment YR0230-op13

Additional information

Weight 15,5 kg
Dimensions 46,8 × 39,7 × 66,5 cm
