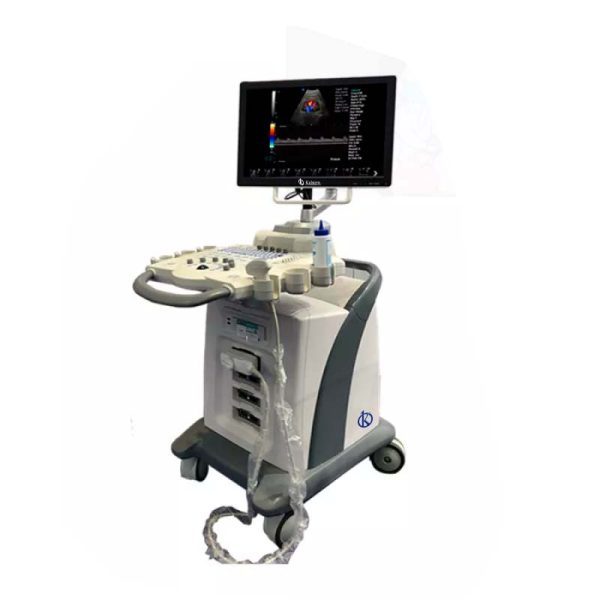

Color Doppler Ultrasound 128 Elements Good Quality YR05151

Manufacturer: Kalstein


  • 15 inch large LED color display Real Doppler function USB ports and VGA port and 4 probe connectors
  • Main Application: Abdomen/Cardiac/Obstetrics/Gynecology/Urology/Andrology/Small/Vascular/Pediatrics/Musculoskeletal disorders and so on.
  • Modes image: B 2Bโ€ฆ 4B MB/M/B/C.ย B/D/B/C/D/B/CFM/D CF + Model B Simultaneously PDI Dual Color Simultaneous Color 2D/3D/4D Composite Color PW CW Duplex/Triplexโ€ฆ CFMโ€ฆ CDE CD Directional PD Anatomy M Color M Mode
  • PC based Color Doppler with Windows system which can connect with any printers in any brands Printed area are adjustable which can be photos or reports image+report etc
  • Built in DICOM 3.0 protocol
  • Multi-languages โ€‹โ€‹function: English, Chinese, Spanish, Portuguese, Russian, Arabic, French, Vietnamese, Indonesian, German, Persian, Thai
Technical description
Model YR05151
Physical specifications
Equipment Weight 80kg
Packing Size 100cmร—80.5cmร—148cm
Packing Weight 200kg
Port Transducer 4
USB ports 4
128 Hard Drive 128GB (SSD) 120G/200GB SSD (optional)
Printing area Report image image + report
Ethernet port 2(100Mb/1000Mb)
external screen hdmi-vga
Printer (optional) USB Cable Digital Printer Digital Laser Printer B / W Thermal Printer
Hardware specifications of the LED monitor
Size fifteen”
Contrast Ratio 800: 01: 00
Resolution 1024 * 768 pixels
Brightness 230 cd / m2
Depth of color 24bit
Rotate Angle ยฑ 90 ยฐ
Gray the Levels 256
DICOM connectivity
software Built-in 3Dโ€ฆ

4D CWโ€ฆPW software

Image Storage
Video format export AVI
Export Image Format PNG JPEG BMP DICOM
Overall performance: Digital broadband 12288 channels
Haz-ex. Re-programmable
Transmit tension Adjustable (15 steps)
Haz-ex-frequency range 1 ~ 40 MHz

Additional information

Weight 222 kg
Dimensions 162 × 72 × 95 cm
