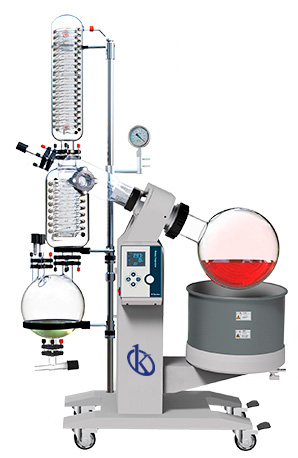

Rotary Evaporator YR02307 // YR02310

Manufacturer: Kalstein


Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, and solvent evaporatesย more efficientlyย under vacuum condition. It can be used for pilot-scale production in biology engineering, pharmaceutical industry, chemical industry and food processing. It usually works with water circulating vacuum pump, diaphragm vacuum pump, recirculating chiller, constant-temperature circulator, low temperature circulating pump, etc.

  • Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
  • Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
  • Teflon discharge valve is corrosion resistant and contamination free.
  • Water bath jacket protecting operator from scalding by hot liquid.

Model YR02307 YR02308 YR02309 YR02310
Evaporating flask 5L, flange opening: ฮฆ50mm 10L, flange opening: ฮฆ125mm 20L, flange opening: ฮฆ125mm 50L, flange opening: ฮฆ125mm
Receiving flask(L) 3 5 10 20
Speed-regulation DC stepless speed-regulation
Power supply 220V-240V, 50/60Hz 3~, 380V, 50Hz
Overall power(kW) 2.3 3.8 6.3 6.3
Rotation speed (rpm) 20~140 20~130 20~130 20~110
Power of motor(w) 250 250 250 250
Condenser Vertical type double coil pipe Vertical type, Main + auxiliary triple-circulating cold traps
Bath material Stainless steel 304
Temperature range RT~99โ„ƒ
Temperature display Digital display
Sealing 20mbar/h
Evaporating Speed (L/h)
Water 2.0 3.2 5.0 9.0
Ethanol 5.4 8.6 14.3 24.5
Lifting function Motorized Lift Motorized lift + Manual lift
Elevating stroke(mm) 0~150 0~160 0~190 0~180
Dimensions(mm) 835Wร—400Dร—1090H 990Wร—550Dร—1655H 1195Wร—635Dร—2070H 1345Wร—770Dร—2140H
Net Weight(kg) 60 85 115 200

Additional information

Weight N/A
Dimensions N/A

YR02307, YR02308, YR02309, YR02310
