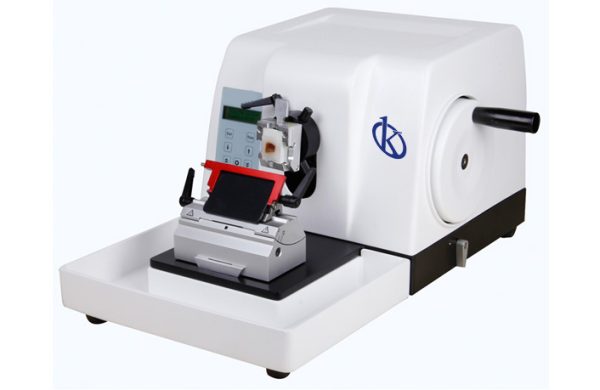

Semi-Automatic Rotary Microtome YR416

Manufacturer: Kalstein

Certificacion europea


The YR416 Semi-Automatic Rotary Microtome provides the highest reliability, user benefit, and excellent operator comfort. The high stability and precision of the section make this instrument a universal multi-purpose microtome ideal for the highest demands in paraffin sectioning, as well as for medical and industrial applications. The high-precision cutting motor allows for precise sections, ensuring optimal reproducibility. With a section thickness range from 0.25 Ī¼m to 60 Ī¼m, the YR416 allows for easy switching between fine and coarse sectioning, even during operation.

Market Price

The YR416 Semi-Automatic Rotary Microtome is available on the market with prices ranging between $7000 and $8000 USD, depending on additional specifications and shipping costs. For a detailed and personalized quote, we recommend using our Kalstein Plus platform. Take advantage of this opportunity to equip your laboratory with cutting-edge technology and improve the precision of your histological cuts.

Frequently Asked Questions

  • What is the minimum cutting thickness achievable with the YR416?

The YR416 can be adjusted to achieve a minimum cutting thickness of 0.25 Ī¼m, ideal for applications requiring high precision in histological cuts.

  • How is the cutting thickness adjusted on the YR416?

The microtome allows for easy adjustment of cutting thickness through precise controls, ensuring reproducible results in each operation.

Advantages and Disadvantages


  • High precision with adjustable cutting thickness from 0.25 Ī¼m to 60 Ī¼m.
  • Stability and comfort for the operator, even under heavy workloads.
  • High-precision cutting motor for exact and reproducible sections.


  • Initial familiarization is required to fully utilize all functions.
  • Periodic adjustments may be necessary to maintain precision in high-performance environments.

Product Use in the Field

The YR416 Semi-Automatic Rotary Microtome is essential in histology and pathology laboratories for the precise preparation of samples before microscopic analysis. Its ability to handle samples up to 50 Ɨ 70 mm and precisely adjust the cutting thickness makes it ideal for demanding scientific research and clinical studies.


To optimize the performance of the YR416 Semi-Automatic Rotary Microtome, it is recommended to perform regular adjustments and calibrations according to your experiment specifications. Follow the detailed maintenance instructions provided in the user manual to ensure precise and consistent results every time.

Discover how the YR416 Semi-Automatic Rotary Microtome can enhance precision in your laboratory. Request a personalized quote now through Kalstein Plus and advance towards greater efficiency in your histology processes. Get your automatic quote today and experience innovation in your daily laboratory work.

Technical Specifications

Model YR416
Minimum Setting of Sectioning Thickness 0.25Ī¼m
Horizontal Feed 28mm
Vertical Specimen Stroke 52mm
Specimen Holder Rotation at any angle within360 degrees
Movement Range of the Base of BladeHolder Base 0-60mm (front to back)
Movement Range of the Blade Press plate 0-23mm
Specimen Clamp Rotation at any angle within 360 degrees
Specimen Orientation XY ā€“ 8Ā°
Maximum Specimen Size 50Ɨ70mm
Precision Error Ā±1%
Working Voltage AC 220VĀ±10% 50Hz (standard model); AC110VĀ±10% 60Hz
Power 100W
Dimensions 580Ɨ410Ɨ305mm(WƗDƗH)
Net Weight 29kg

Additional information

Weight 45 kg
Dimensions 67 × 55 × 48 cm
