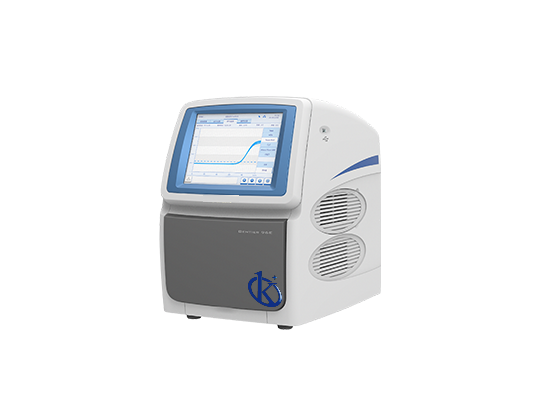

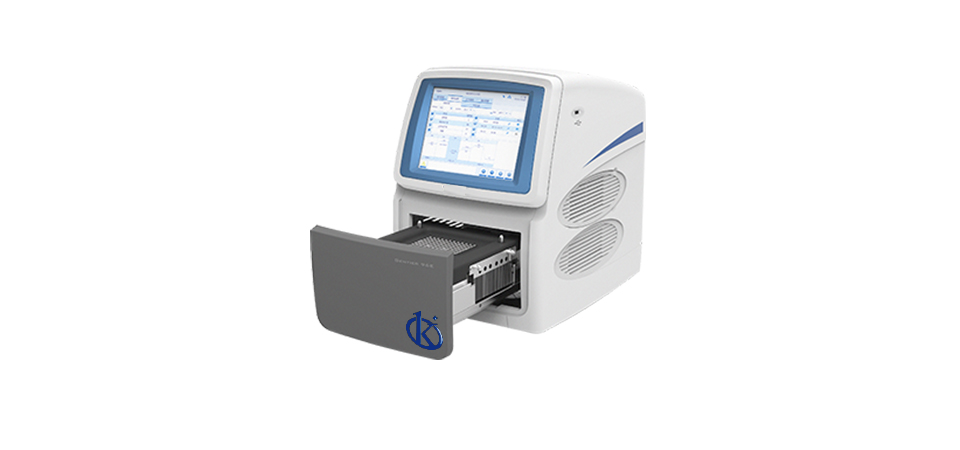

Thermal Cyclers YR01869

Manufacturer: Kalstein


The YR01869 real-time PCR system is a PCR assay machine designed to meet the specific needs of high-end laboratories. With five fluorescence channels, it is capable of processing 96 samples in a single test. Enjoy its powerful and efficient temperature control system, user-friendly software and user-friendly operating designs. The real-time PCR system can provide maximum reliability and efficiency for all your real-time PCR needs.



96 samples to scan in 7s:

Only 7s for all 96-well fluorescence scanning can significantly reduce testing time and improve efficiency for laboratory professionals.

Efficient temperature control:

Based on the Peltier heating/cooling method, the maximum heating ramp rate is >6.1℃/s and the maximum cooling ramp rate is >5.0℃/s.

Power failure protection design:

Power failure protection design can recover the experiment automatically, no worry about instantaneous power failure.
More convenient with two configurations Independent configuration.

PC control configuration:

With 10.4-inch touch screen
PControl of PC software via connection.

Powerful analysis software:

Gentier 96 E/R offers various data analysis functions, including absolute quantitative analysis, relative quantitative analysis, SNP analysis, melting curve analysis, etc.

Technical Specifications
Model YR01869
Throughput ene-96
Fluorescence Channels 6
Fluorescence Scanning Time 7s
Dye Compatibility Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green
Channel 2: HEX, VIC, TET, JOE
Channel 3: ROX, Texas Red
Channel 4: Cy5
Channel 5: Alexa Fluor 680
Channel 6: FRET
Optical System
Light Source High-brightness, long life and maintenance-free LED light source,excitation from the top
Detector Photodiodes (PDs), top scanning
Excitation Range CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm
Detection Range CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm
Fluorescence Dynamic Range Adjustable
Sample Dynamic Range From 101 to 1010copies
Thermal Black
Heating Method Peltier
Heating Rate >6.1 ℃/s
Cooling Rate >5.0 ℃/s
Temperature Uniformity ±0.1 ℃
Temperature Accuracy ≤0.1 ℃

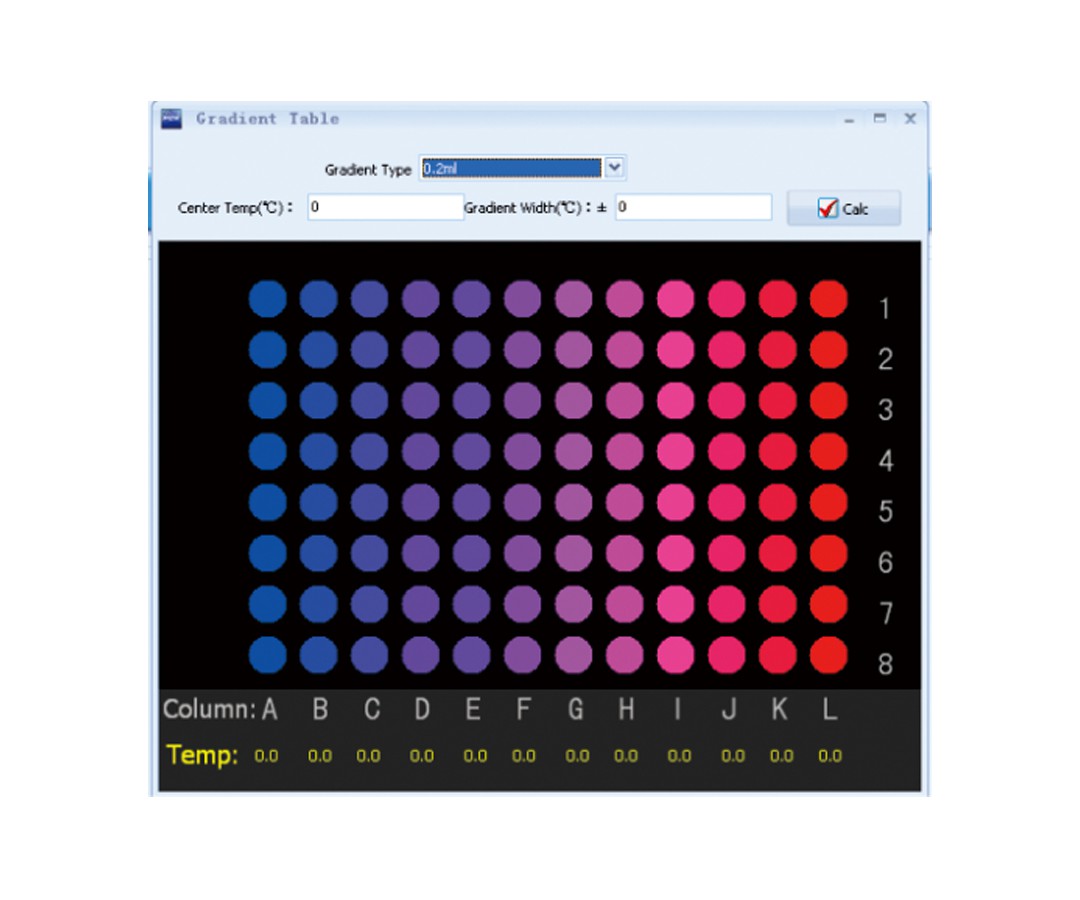

Gradient Range 1℃-40 ℃
Gradient Block 12 row
Special Temperature Protocol Thermal gradients PCR, long PCR, Touch Down PCR
Sample Testing Linearity and Repeatability Linear correlation: /r/ ≥ 0.999
Repeatability: cycle threshold (Ct) value CV≤0 0.5%
Software Functions
Control Modes Model 1: 10.4 inch touch screen
Mode 2: PC direct control
Power Failure Protection Automatically start running experiments after power supply, no need to wait PC software
Data Storage and Transmission Upload and download through USB disk. 1000 results can be stored in machine
Reporting Function Templates reserved; customized experiment report
Key Applications Relative quantification, absolute quantification, melting curve analysis ,SNP analysis
Operating System for PC Win7/Win10/Win11
Power Supply and Power Consumption AC 100-240V,50-60HZ, 900VA
Weight 30 Kg (net)
Instrument Dimension 555*475*484mm (W*L*H)
Suitable Consumables 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white).

Additional information

Weight 38 kg
Dimensions 67 × 58 × 58 cm
