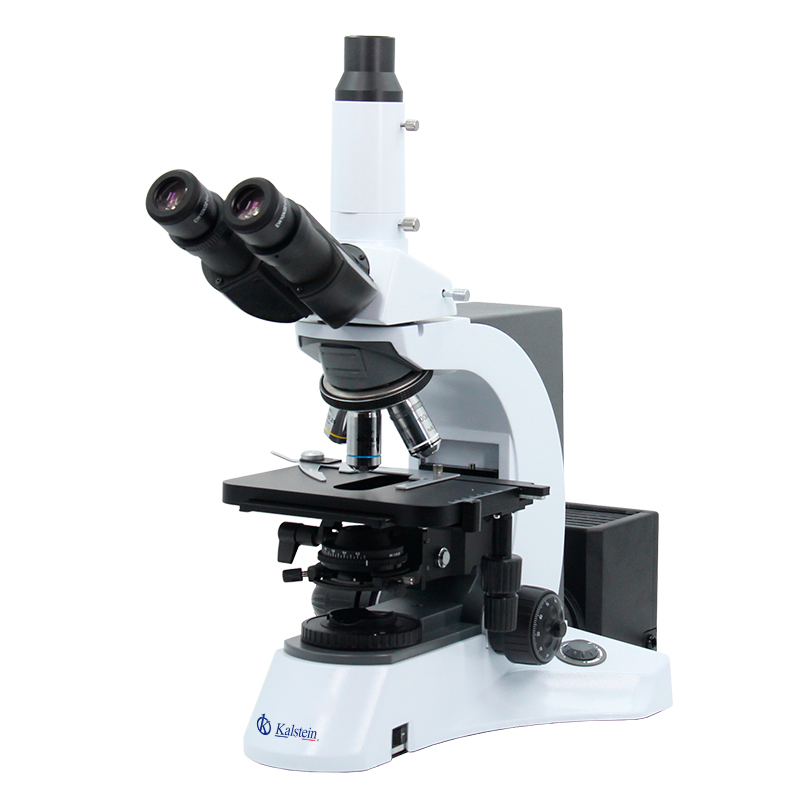

Trinocular Laboratory Microscope YR0231

Manufacturer:ย Kalstein

Description

  • Seidentopf Trinocular Head, 30ยฐ. Inclined, 360ยฐ Rotatable, Interpupillary 48-75mm, Left Eyepiece Tube Diopter Adjustable
  • Backward Quintuple Nosepiece, with slide slot
  • Infinity Plan Achromatic Objective 4x,10x,40x,100x
  • Double Layer Mechanical Stage, 185x142mm, Moving Range 55*75mm
  • Swing Out Condenser N.A.0.9/0.25
  • Halogen Lamp 6V30W, External Kohler Illumination, with asperical collector, brightness adjustable FUSE Protection circuit, replaceable
  • Coaxial coarse & fine adjustment, focusing range 24mm, fine division 0.001mm, coarse stroke 37.7mm, with lock
Technical Specifications
Model YR0231
Optical System Infinity Plan Optical System
Function Bright Field, Optional Dark Field, Polarizing, Phase Contrast, Fluorescent
Head Seidentopf Trinocular Head, 30ยฐ Inclined, 360ยฐ Rotatable, Interpupillary 48~75mm, Left Eyepiece Tube Diopter Adjustable
Eyepiece Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Nosepiece Backward Quintuple Nosepiece, With Slide Slot
Objective Infinity Plan Achromatic Objective 4x,10x,40x,100x
Focusing Coaxial Coarse & Fine Adjustment, Focusing Range 24mm, Fine Division 0.001mm, Coarse Stroke 37.7mm
Working Stage Double Layer Mechanical Stage, 185*142mm, Moving Range 55*75mm
Condenser Swing Out Condenser N.A.0.9/0.25
Illumination Halogen Lamp 6V30W, External Kohler Illumination, With Asperical Collector, Brightness Adjustable
Filter Green, Blue
Adapter Trinocular Adapter + Eyepiece Tube Photo Adapter Dia.23.2mm
Optional Accessories
Head Seidentopf Binocular Head, 30ยฐ Inclined, Interpupillary 48~75mm YR0231-op1
Upgrade to Tilting Binocular Head 5ยฐ~35ยฐ YR0231-op2
Upgrade to Tilting Trinocular Head 5ยฐ~35ยฐ YR0231-op3
Eyepiece Extra Wide Field Eyepiece EW10x/20mm, Eyepiece Tube Dia.30mm YR0231-op4
Extra Wide Field Eyepiece EW20x/12mm, Eyepiece Tube Dia.30mm YR0231-op5
Extra Wide Field Eyepiece EW15x/16mm, Eyepiece Tube Dia.30mm YR0231-op6
Objective Infinity Plan Achromatic Objective 20x YR0231-op7
Infinity Plan Achromatic Objective 60x YR0231-op8
Nosepiece Sextuple Nosepiece YR0231-op9
Illumination Upgrade To Halogen Lamp 24V50W, For Better Dark View YR0231-op10
Upgrade To Halogen Lamp 24V100W, For Better Dark View YR0231-op11
Adapter 0.45x C-Mount YR0231-op12
Dark Field Dark Field Condenser, N.A. 0.7~0.9, Dry, YR0231-op13
Use With 40x Or Lower Magnification Objective
Dark Field Condenser, N.A. 1.25~1.36, Immersion, YR0231-op14
Use With 100x Objective
Dark Field Objective, Infinity Plan 100x(Oil) YR0231-op15
Dark Field Objective, Infinity Plan 100x(Oil), With Iris Diaphragm YR0231-op16
Phase Contrast Infinity Plan Turret Phase Contrast Set YR0231-op16
–Infinity Plan Turret Phase Contrast Condenser
–Infinity Plan Phase Contrast Objective 4x,10x,40x,100x
–Centering Telescope 10x
–Green Filter
Infinity Achromatic Turret Phase Contrast Set YR0231-op17
–Infinity Achromatic Turret Phase Contrast Condenser
–Infinity Achromatic Phase Contrast Objective 4x,10x,40x,100x
–Centering Telescope 10x
–Green Filter
Flourescent EPI-Fluorescent Kit, Upgrade toย A16.1028 YR0231-op18
–Power Supplier 220V/110V Interchangeable, Digital Display
–100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
–Barrier To Resist Ultraviolet Light
–Fluorescence Free Oil
–Excitation Filter B/G
EPI-Fluorescent Kit, Upgrade toย A16.1028 YR0231-op19
–Power Supplier 220V/110V Interchangeable, Digital Display
–100WHBO Ultra Hi-Voltage Spherical Mercury Lamp
–Barrier To Resist Ultraviolet Light
–Fluorescence Free Oil
–Excitation Filter B/G/V/U
EPI LED Fluorescent Kit, Upgrade Toย A16.1029 YR0231-op20
EPI Light 3W LED 465~475nm, B Excite Filter BP460~490,
EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 YR0231-op21
Polarizing Polarizing Attachment , Polarizer, Analyzer, Intergrate Device YR0231-op22

Additional information

Weight 14 kg
Dimensions 43 × 38,4 × 60,6 cm
